HD3SS215 Series

6-Gbps HDMI 2.0/5.4-Gbps DisplayPort 1.2a 1-to-2 /2-to-1 differential mux supports DDC/AUX switching

Catalog

6-Gbps HDMI 2.0/5.4-Gbps DisplayPort 1.2a 1-to-2 /2-to-1 differential mux supports DDC/AUX switching

Part	Type	Utilized IC / Part	Supplied Contents	Function	Mounting Type	Package / Case	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Multiplexer/Demultiplexer Circuit	Number of Channels	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	On-State Resistance (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Circuit

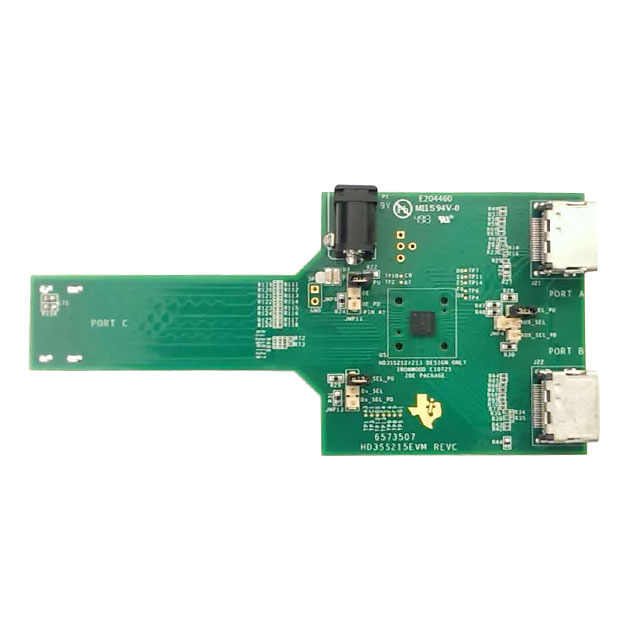

Texas Instruments HD3SS215EVM	Video	HD3SS215	Board(s)	Video Switch
Texas Instruments HD3SS215IRTQR					Surface Mount	56-VFQFN Exposed Pad	56-QFN (8x8)	3.6 V	3 V	HDMI
Texas Instruments HD3SS215IZQET					Surface Mount	50-VFBGA	50-BGA MicroStar Junior (5x5)	3.6 V	3 V	HDMI
Texas Instruments HD3SS215IZXHR					Surface Mount	50-VFBGA	50-NFBGA 5x5				2:1	1	3.6 V	3 V	14 Ohm	85 °C	-40 °C	SPDT
Texas Instruments HD3SS215IZXHT					Surface Mount	48-VFBGA	48-NFBGA (5x5)				2:1	1	3.6 V	3 V	14 Ohm	85 °C	-40 °C	DPST
Texas Instruments HD3SS215RTQT					Surface Mount	56-VFQFN Exposed Pad	56-QFN (8x8)				2:1	1	3.6 V	3 V	14 Ohm	70 °C	0 °C	SPDT
Texas Instruments HD3SS215ZXHR					Surface Mount	50-VFBGA	50-NFBGA 5x5				2:1	1	3.6 V	3 V	14 Ohm	70 °C	0 °C	SPDT
Texas Instruments HD3SS215IZQER					Surface Mount	50-VFBGA	50-BGA MicroStar Junior (5x5)	3.6 V	3 V	HDMI
Texas Instruments HD3SS215RTQR					Surface Mount	56-VFQFN Exposed Pad	56-QFN (8x8)				2:1	1	3.6 V	3 V	14 Ohm	70 °C	0 °C	SPDT
Texas Instruments HD3SS215IRTQT					Surface Mount	56-VFQFN Exposed Pad	56-QFN (8x8)	3.6 V	3 V	HDMI

Catalog

6-Gbps HDMI 2.0/5.4-Gbps DisplayPort 1.2a 1-to-2 /2-to-1 differential mux supports DDC/AUX switching

Key Features

• General purpose 2:1/1:2 differential switchCompatible with displayport electrical standardCompatible with hdmi electrical standards2:1 and 1:2 switching supporting data rates up to 6 GbpsSupports HPD switchingSupports AUX and DDC switchingWide –3-dB differential bandwidth of 7 GHzExcellent dynamic characteristics (at 3 GHz)Crosstalk = –35 dBIsolation = –21 dBInsertion Loss = –1.6 dBReturn Loss = –12 dBMax Bit-Bit Skew = 5 psVDD operating range 3.3 V ±10%Commercial temperature range: 0°C to 70°C (HD3SS215)Industrial temperature range: –40°C to 85°C (HD3SS215I)Package options:5 mm x 5 mm, 50-ball ZXH8 mm × 8 mm, 56-pin RTQOutput enable (OE) pin disables switch to save powerPower consumption:Active < 9 mW typicalStandby < 30 µW maximum (when OE = L)General purpose 2:1/1:2 differential switchCompatible with displayport electrical standardCompatible with hdmi electrical standards2:1 and 1:2 switching supporting data rates up to 6 GbpsSupports HPD switchingSupports AUX and DDC switchingWide –3-dB differential bandwidth of 7 GHzExcellent dynamic characteristics (at 3 GHz)Crosstalk = –35 dBIsolation = –21 dBInsertion Loss = –1.6 dBReturn Loss = –12 dBMax Bit-Bit Skew = 5 psVDD operating range 3.3 V ±10%Commercial temperature range: 0°C to 70°C (HD3SS215)Industrial temperature range: –40°C to 85°C (HD3SS215I)Package options:5 mm x 5 mm, 50-ball ZXH8 mm × 8 mm, 56-pin RTQOutput enable (OE) pin disables switch to save powerPower consumption:Active < 9 mW typicalStandby < 30 µW maximum (when OE = L)

Description

HD3SS215 is a high-speed wide common mode passive switch capable of supporting DisplayPort HBR2 and high definition multimedia interface (HDMI) applications requiring 4k2k 60Hz refresh rates. The HD3SS215 can be configured to support two sources to one sink or one source to two sinks. To support these video standards the HD3SS215 also switches the display data channel (DDC) and hot plug detect (HPD) signals for HDMI or digital video interface (DVI) applications. It also switches the auxiliary (AUX) and hot plug detect (HPD) signals for DisplayPort applications. The flexibility the HD3SS215 provides by supporting both wide common mode and AC or DC coupled links makes it ideal for many applications. HD3SS215 is a high-speed wide common mode passive switch capable of supporting DisplayPort HBR2 and high definition multimedia interface (HDMI) applications requiring 4k2k 60Hz refresh rates. The HD3SS215 can be configured to support two sources to one sink or one source to two sinks. To support these video standards the HD3SS215 also switches the display data channel (DDC) and hot plug detect (HPD) signals for HDMI or digital video interface (DVI) applications. It also switches the auxiliary (AUX) and hot plug detect (HPD) signals for DisplayPort applications. The flexibility the HD3SS215 provides by supporting both wide common mode and AC or DC coupled links makes it ideal for many applications.
