767130 Series

Catalog

CONN RCPT 190POS SMD GOLD

Part	Mounting Type	Number of Positions	Mated Stacking Heights	Features	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Number of Rows [custom]	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 767130-5	Surface Mount	190	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Board Guide Ground Bus (Plane)	0.587 in	14.91 mm	0.64 mm	0.025 in	2	Receptacle Center Strip Contacts	Gold	30 Áin	0.76 Ám

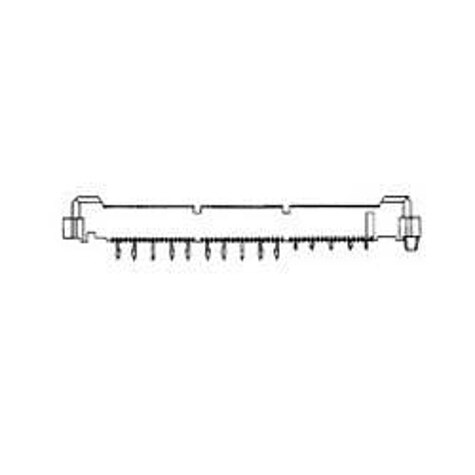

TE Connectivity AMP Connectors 767130-7	Surface Mount	266	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Board Guide Ground Bus (Plane)	0.587 in	14.91 mm	0.64 mm	0.025 in	2	Receptacle Center Strip Contacts	Gold	30 Áin	0.76 Ám

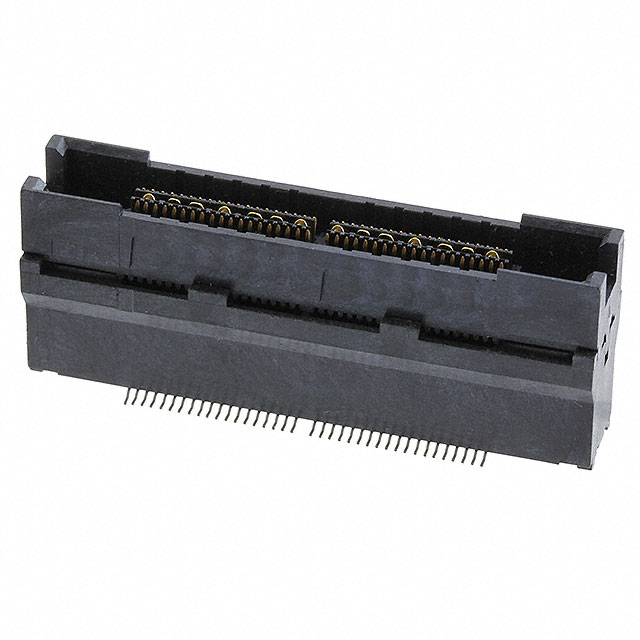

TE Connectivity AMP Connectors 767130-2	Surface Mount	76	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Board Guide Ground Bus (Plane)	0.587 in	14.91 mm	0.64 mm	0.025 in	2	Receptacle Center Strip Contacts	Gold	30 Áin	0.76 Ám
TE Connectivity AMP Connectors 767130-1	Surface Mount	38	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Board Guide Ground Bus (Plane)	0.587 in	14.91 mm	0.64 mm	0.025 in	2	Receptacle Center Strip Contacts	Gold	30 Áin	0.76 Ám
