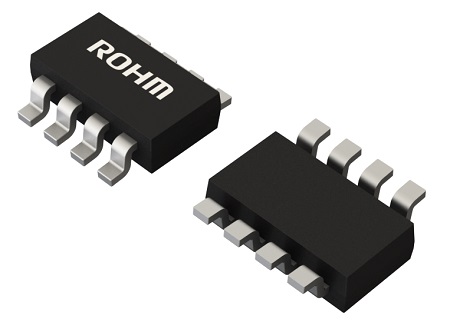

BD9E304FP4-LBZ Series

4.5V to 36V Input, 3.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Catalog

4.5V to 36V Input, 3.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching	Voltage - Output (Max) [Max]	Topology	Number of Outputs	Current - Output	Supplier Device Package	Output Type	Function	Voltage - Input (Min) [Min]	Package / Case	Output Configuration	Synchronous Rectifier	Voltage - Input (Max) [Max]	Mounting Type
Rohm Semiconductor BD9E304FP4-LBZTL	85 °C	-40 C	300 kHz	25.2 V	Buck	1	3 A	TSOT23-8L	Adjustable	Step-Down	4.5 V	SOT-23-8 Thin TSOT-23-8	Positive		36 V	Surface Mount

Catalog

4.5V to 36V Input, 3.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Description

This is the product guarantees long time support in Industrial market. BD9E304FP4-LBZ is a single synchronous buck DC/DC converter with built-in low on-resistance power MOSFETs. The Light Load Mode control provides excellent efficiency characteristics in light-load conditions which make the product ideal for equipment, and devices that demand minimal standby power consumption. BD9E304FP4-LBZ is a current mode control and features good transient response. Phase compensation can also be set easily. It achieves the high power density and offers a small footprint on the PCB by employing small package.
