L2C2 Series

Manufacturer: Lumileds

Catalog

LED COB LUXEON WM WHT RECT 3500K

Part	Current - Max [Max]	CCT (K)	CCT (K)	CRI (Color Rendering Index)	Color	Lens Type	Temperature - Test	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Configuration	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Current - Test	Type	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Viewing Angle

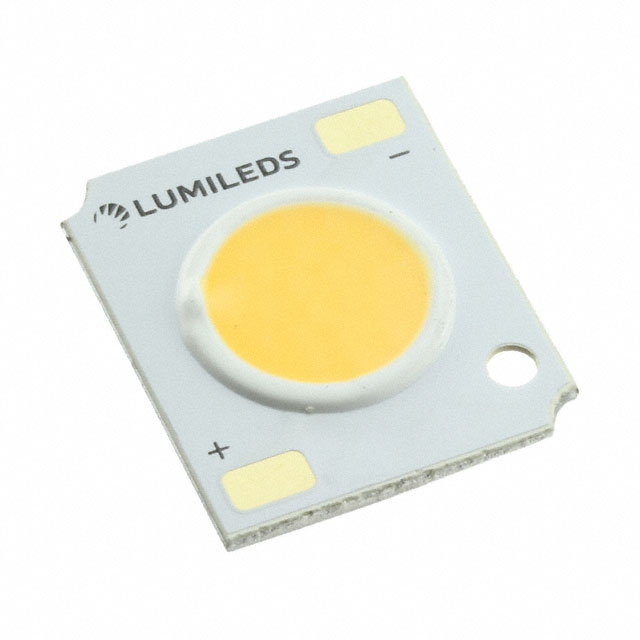

Lumileds L2C2-35701202E0900	400 mA	3500 K	3-Step MacAdam Ellipse	70	Warm White	Flat	85 °C	9 mm	1027 lm	Rectangle	16 mm	19 mm	1.5 mm	200 mA	Chip On Board (COB)	34.5 V	149 lm/W	115 °
Lumileds L2C2-30801202E0900	400 mA	3000 K	3-Step MacAdam Ellipse	80	Warm White	Flat	85 °C	9 mm	925 lm	Rectangle	16 mm	19 mm	1.5 mm	200 mA	Chip On Board (COB)	34.5 V	134 lm/W	115 °

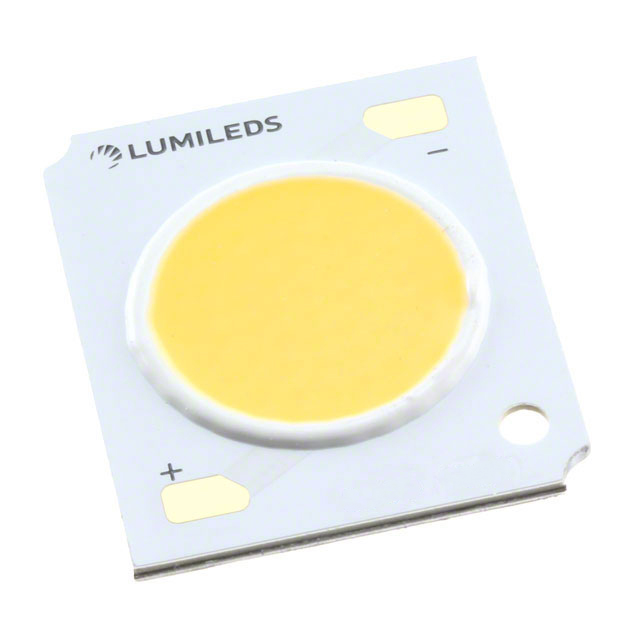

Lumileds L2C2-35801204E1300	900 mA	3500 K	3-Step MacAdam Ellipse	80	Warm White	Flat	85 °C	13 mm	2106 lm	Rectangle	20 mm	24 mm	1.5 mm	450 mA	Chip On Board (COB)	35 V	134 lm/W	115 °
Lumileds L2C2-35901205E1300	1.2 A	3500 K	3-Step MacAdam Ellipse	90	Warm White	Flat	85 °C	13 mm	2400 lm	Rectangle	20 mm	24 mm	1.5 mm	600 mA	Chip On Board (COB)	35 V	114 lm/W	115 °
Lumileds L2C2-35901203E0900	600 mA	3500 K	3-Step MacAdam Ellipse	90	Warm White	Flat	85 °C	9 mm	1200 lm	Rectangle	16 mm	19 mm	1.5 mm	300 mA	Chip On Board (COB)	34.5 V	116 lm/W	115 °
Lumileds L2C2-30901205E1300	1.2 A	3000 K	3-Step MacAdam Ellipse	90	Warm White	Flat	85 °C	13 mm	2322 lm	Rectangle	20 mm	24 mm	1.5 mm	600 mA	Chip On Board (COB)	35 V	111 lm/W	115 °
Lumileds L2C2-50801208E1500	1.8 A	5000 K	3-Step MacAdam Ellipse	80	Cool White	Flat	85 °C	15 mm	4374 lm	Rectangle	20 mm	24 mm	1.5 mm	900 mA	Chip On Board (COB)	35 V	139 lm/W	115 °
Lumileds L2C2-27901202E0900	400 mA	2700 K	3-Step MacAdam Ellipse	90	Warm White	Flat	85 °C	9 mm	768 lm	Rectangle	16 mm	19 mm	1.5 mm	200 mA	Chip On Board (COB)	34.5 V	111 lm/W	115 °
Lumileds L2C2-50801205E1300	1.2 A	5000 K	3-Step MacAdam Ellipse	80	Cool White	Flat	85 °C	13 mm	2916 lm	Rectangle	20 mm	24 mm	1.5 mm	600 mA	Chip On Board (COB)	35 V	139 lm/W	115 °
Lumileds L2C2-40801205E1300	1.2 A	4000 K	3-Step MacAdam Ellipse	80	Neutral White	Flat	85 °C	13 mm	2903 lm	Rectangle	20 mm	24 mm	1.5 mm	600 mA	Chip On Board (COB)	35 V	138 lm/W	115 °
