BZ-2R2 Series

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mechanical Life	Switch Function	Differential Travel	Differential Travel	Current Rating (Amps)	Pretravel	Pretravel	Mounting Type	Operating Position	Operating Position	Voltage Rating - AC	Termination Style	Release Force	Voltage Rating - DC	Operating Force [Max]	Operating Force [Min]	Overtravel	Overtravel

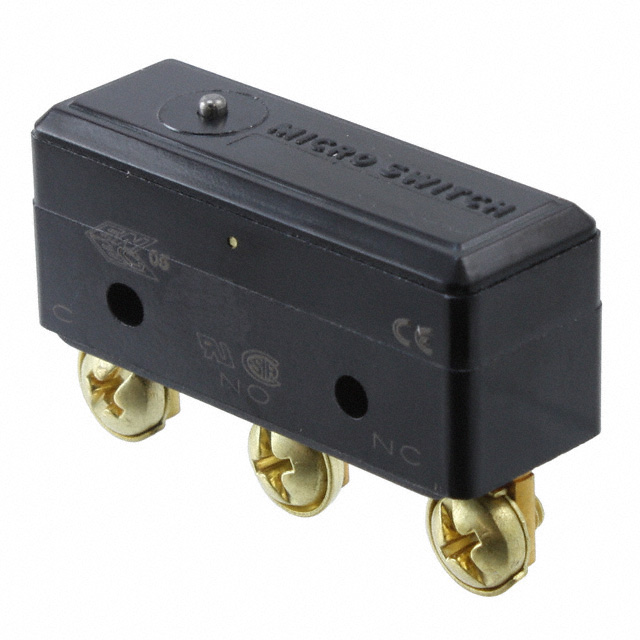

Honeywell Sensing and Productivity Solutions BZ-2R291-P4	SPDT	85 °C	-55 °C	Round (Pin Plunger)	20000000 Cycles	On-Mom	0.002 in	0.05 mm	15 A 500 mA	0.015 in	0.4 mm	Chassis Mount	0.625 in	15.9 mm	125 V	Screw Terminal	113 gf	125 VDC	368 gf	255 gf	0.13 mm	0.005 in
Honeywell Sensing and Productivity Solutions BZ-2R296	SPDT	85 °C	-55 °C	Round (Pin Plunger)	20000000 Cycles	On-Mom	0.002 in	0.05 mm	15 A 500 mA	0.012 in	0.3 mm	Chassis Mount	0.625 in	15.9 mm	125 V	Solder Lug	113 gf	125 VDC	368 gf	255 gf	0.13 mm	0.005 in
