MP8770 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
SWITCHING VOLTAGE REGULATORS HIGH-EFFICIENCY, 8A, 17V, 700KHZ, SYNCHR
| Part | Function | Synchronous Rectifier | Supplier Device Package | Frequency - Switching | Package / Case | Current - Output | Topology | Mounting Type | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Voltage - Output | Voltage - Input | Contents | Utilized IC / Part | Main Purpose | Regulator Topology | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

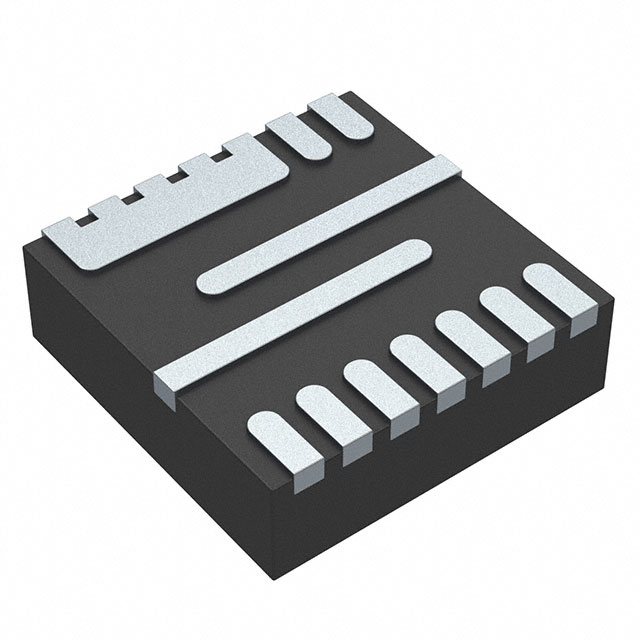

 Monolithic Power Systems Inc. | Step-Down | 16-QFN (3x3) | 700 kHz | 16-PowerVFQFN | 8 A | Buck | Surface Mount | Positive | -40 C | 125 °C | 17 V | 4.5 V | 1 | ||||||||||||||

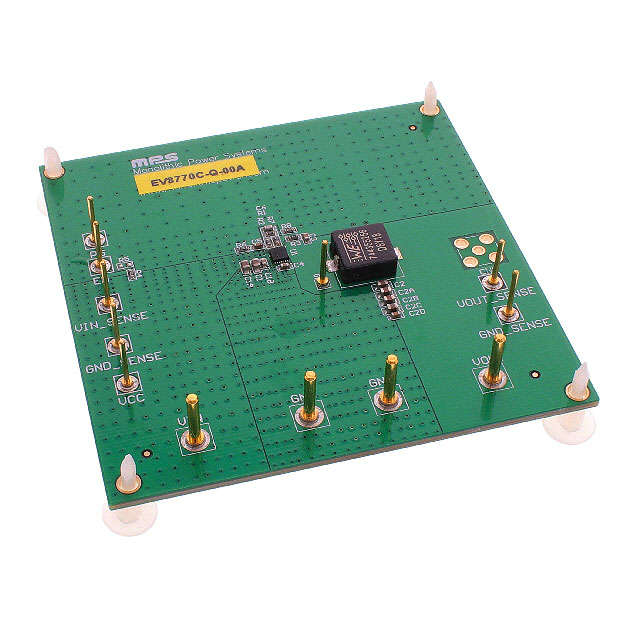

 Monolithic Power Systems Inc. | 700 kHz | 8 A | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | 1 V | 12 VDC | Board(s) | MP8770C | DC/DC Step Down | Buck | |||||||||||||||
Monolithic Power Systems Inc. | Step-Down | 16-QFN (3x3) | 700 kHz | 16-PowerVFQFN | 8 A | Buck | Surface Mount | Positive | -40 C | 125 °C | 17 V | 4.5 V | 1 | ||||||||||||||
 Monolithic Power Systems Inc. | Step-Down | 16-QFN (3x3) | 700 kHz | 16-PowerVFQFN | 8 A | Buck | Surface Mount | Positive | -40 C | 125 °C | 17 V | 3 V | 1 | Adjustable | 0.6 V | 17 V |
