DG200 Series

Catalog

IC SWITCH SPST-NCX2 80OHM 14SOIC

Part	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Number of Circuits	Mounting Type	Charge Injection	Crosstalk	Switch Circuit	Multiplexer/Demultiplexer Circuit	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case [y]	Package / Case	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Current - Leakage (IS(off)) (Max) [Max]	On-State Resistance (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Analog Devices Inc./Maxim Integrated DG200ACY+	500 ns	1 µs	2	Surface Mount	10 pC	-90 dB	SPST - NC	1:1	18 V	-4.5 V	70 °C	0 °C	0.154 in	3.9 mm	14-SOIC	9 pF	9 pF	2 nA	80 Ohm
Analog Devices Inc./Maxim Integrated DG200AAK/883B	500 ns	1 µs	2	Through Hole	10 pC	-90 dB	SPST - NC	1:1	18 V	-4.5 V					16-CDIP	9 pF	9 pF	2 nA	70 Ohms	16-CDIP	125 °C	-55 °C	0.3 in 7.62 mm

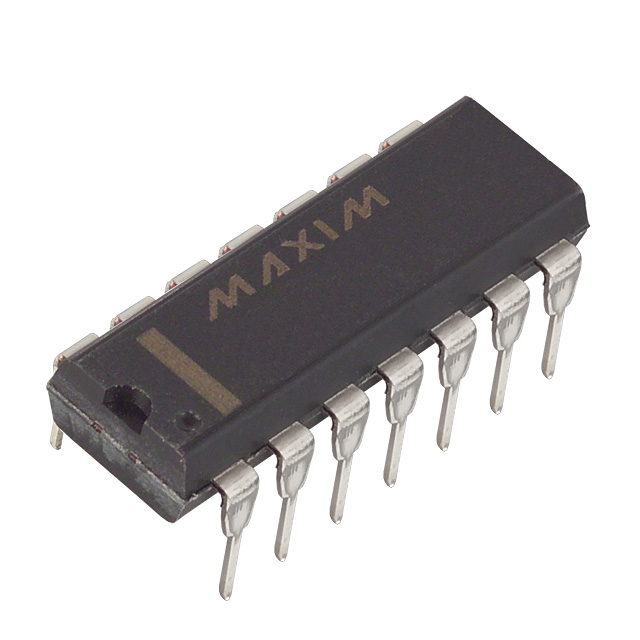

Analog Devices Inc./Maxim Integrated DG200ACJ+	500 ns	1 µs	2	Through Hole	10 pC	-90 dB	SPST - NC	1:1	18 V	-4.5 V	70 °C	0 °C	0.3 "	7.62 mm	14-DIP	9 pF	9 pF	2 nA	80 Ohm
Analog Devices Inc./Maxim Integrated DG200ABA	500 ns	1 µs	2	Through Hole	10 pC	-90 dB	SPST - NC	1:1	18 V	-4.5 V	85 °C	-25 °C			TO-100-10 Metal Can	9 pF	9 pF	2 nA	80 Ohm	TO-100-10
