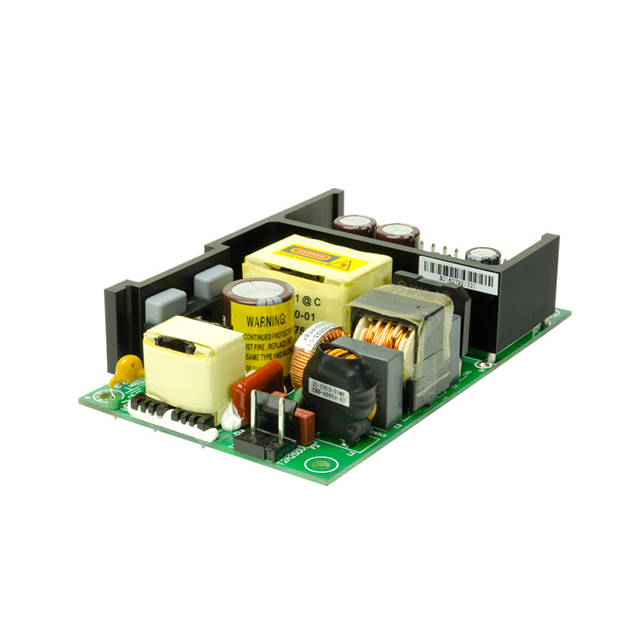

VMS-81 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 12V 80W

Part	Efficiency	Operating Temperature [Max]	Number of Outputs	Applications	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Output 1	Type	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Voltage - Isolation	Mounting Type	Features	Power (Watts)	Current - Output 1 [custom]	Voltage - Output 1 [custom]
CUI Inc. VMS-81-12	81 %	70 °C	1	Medical	6.66 A	28.1 mm	3.01 in	1.11 in	76.5 mm	5 "	127 mm	12 V	Open Frame	260 VAC	90 VAC	CE cURus TUV	6.653 kV	Chassis Mount	Universal Input	80 W
CUI Inc. VMS-81-18		70 °C	1	Medical	4.44 A	28.1 mm	3.01 in	1.11 in	76.5 mm	5 "	127 mm	18 V	Open Frame	260 VAC	90 VAC	CE cURus TUV	6.653 kV	Chassis Mount	Universal Input	80 W
CUI Inc. VMS-81-30	81 %	70 °C	1	Medical	2.66 A	28.1 mm	3.01 in	1.11 in	76.5 mm	5 "	127 mm	30 V	Open Frame	260 VAC	90 VAC	CE cURus TUV	6.653 kV	Chassis Mount	Universal Input	80 W
CUI Inc. VMS-81-5	74 %	70 °C	1	Medical		28.1 mm	3.01 in	1.11 in	76.5 mm	5 "	127 mm	5 V	Open Frame	260 VAC	90 VAC	CE cURus TUV	6.653 kV	Chassis Mount	Universal Input	80 W	14 A
CUI Inc. VMS-81-15	81 %	70 °C	1	Medical	5.33 A	28.1 mm	3.01 in	1.11 in	76.5 mm	5 "	127 mm	15 V	Open Frame	260 VAC	90 VAC	CE cURus TUV	6.653 kV	Chassis Mount	Universal Input	80 W
CUI Inc. VMS-81-9	81 %	70 °C	1	Medical	8.89 A	28.1 mm	3.01 in	1.11 in	76.5 mm	5 "	127 mm	9 V	Open Frame	260 VAC	90 VAC	CE cURus TUV	6.653 kV	Chassis Mount	Universal Input	80 W
CUI Inc. VMS-81-36	81 %	70 °C	1	Medical	2.22 A	28.1 mm	3.01 in	1.11 in	76.5 mm	5 "	127 mm		Open Frame	260 VAC	90 VAC	CE cURus TUV	6.653 kV	Chassis Mount	Universal Input	80 W		36 V
CUI Inc. VMS-81-24		70 °C	1	Medical	3.33 A	28.1 mm	3.01 in	1.11 in	76.5 mm	5 "	127 mm	24 V	Open Frame	260 VAC	90 VAC	CE cURus TUV	6.653 kV	Chassis Mount	Universal Input	80 W
