D37P91 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

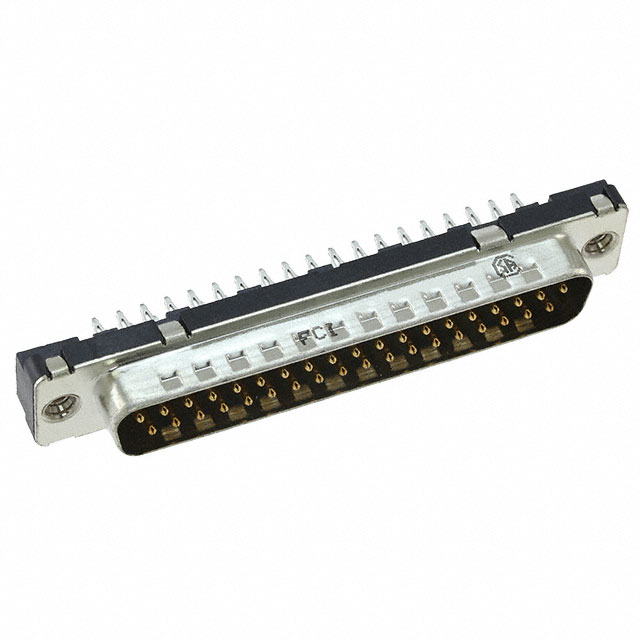

DSUB STR PF 37 PIN
| Part | Number of Positions | Number of Rows | Contact Material | Dielectric Material | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Current Rating (Amps) | Voltage Rating | Material Flammability Rating | Connector Style | Connector Type | Shell Size, Connector Layout | Contact Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Features | Termination | Contact Finish | Contact Finish Thickness | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 37 | 2 | Brass | Polybutylene Terephthalate (PBT) | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Steel Tin-Nickel Plated | Grounding Indents | Press-Fit | Gold | ||
Amphenol ICC (FCI) | 37 | 2 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Housing/Shell (M3) | 0.76 Ám | 30 Áin | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Grounding Indents | Press-Fit | Gold | |||
Amphenol ICC (FCI) | 37 | 2 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Housing/Shell (M3) | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Board Lock Grounding Indents | Press-Fit | Gold | Flash | ||||
Amphenol ICC (FCI) | 37 | 2 | Copper Alloy | Thermoplastic | Housing/Shell (4-40) | Through Hole | 5 A | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Grounding Indents | Press-Fit | Gold | Flash | Metal | ||||
Amphenol ICC (FCI) | 37 | 2 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Housing/Shell (M3) | 0.76 Ám | 30 Áin | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Steel Tin-Nickel Plated | Grounding Indents | Press-Fit | Gold | ||
Amphenol ICC (FCI) | 37 | 2 | Brass | Polybutylene Terephthalate (PBT) | Female Screwlock (4-40) Mating Side | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Steel Tin-Nickel Plated | Grounding Indents | Press-Fit | Gold | Flash | |||
 Amphenol ICC (FCI) | 37 | 2 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Housing/Shell (4-40) | 0.76 Ám | 30 Áin | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Steel Tin-Nickel Plated | Grounding Indents | Press-Fit | Gold | ||
Amphenol ICC (FCI) | 37 | 2 | Brass | Polybutylene Terephthalate (PBT) | Housing/Shell (4-40) | 0.76 Ám | 30 Áin | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Steel Tin-Nickel Plated | Board Lock Grounding Indents | Press-Fit | Gold | ||
Amphenol ICC (FCI) | 37 | 2 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Female Screwlock (4-40) Mating Side | 0.76 Ám | 30 Áin | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Board Lock Grounding Indents | Press-Fit | Gold | |||
Amphenol ICC (FCI) | 37 | 2 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Housing/Shell (Unthreaded) | Through Hole | 5 A | 300 VDC | UL94 V-0 | D-Sub | Male Pins Plug | 4 (DC C) | Signal | Black | -55 °C | 125 °C | Steel Tin-Nickel Plated | Grounding Indents | Press-Fit | Gold | Flash |
