GR VJLPL1.F3 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

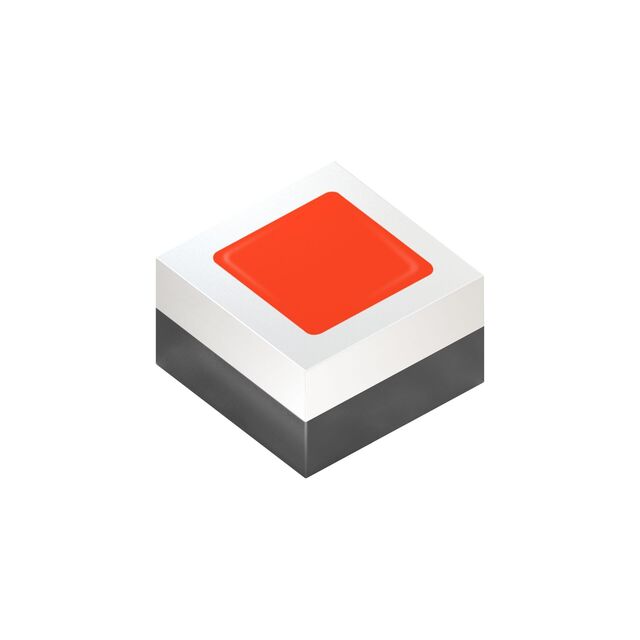

LED OSLON PURE 1414 RED
| Part | Thermal Resistance of Package | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max [Max] | Package / Case | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Viewing Angle | Luminous Flux @ Current/Temperature | Mounting Type | Current - Test | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 7.5 ░C/W | 2.93 V | 39 lm/W | 1 A | 1313 | 0505 | 0.039 in | 1 mm | 0.055 " | 1.4 mm | 0.055 in | 1.4 mm | 120 ° | 40 lm | Surface Mount | 350 mA | 25 °C |
