R16143 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

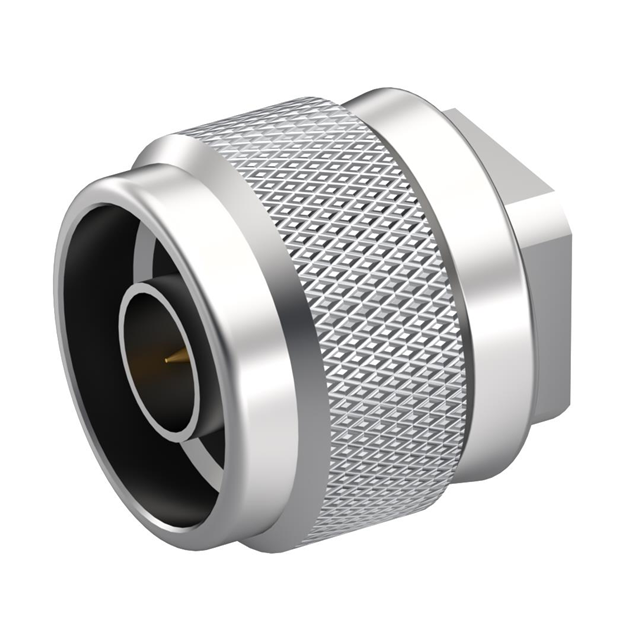

N / 1/2 INCH SQUARE FLANGE PLUG
| Part | Insertion Loss | Center Contact Plating | Voltage Rating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Mating Cycles | Body Material | Connector Type | Mounting Type | Fastening Type | Center Contact Material | Frequency - Max [Max] | Number of Ports | Ingress Protection | Connector Style | Shield Termination | Mounting Feature | Contact Termination | Housing Color | Impedance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 0.15 dB | Gold | 500 V | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | White Bronze | 500 | Brass | Plug Male Pin | Panel Mount Through Hole | Threaded | Beryllium Copper | 11 GHz | 1 | IP67 - Dust Tight Waterproof | N Type | Solder | Flange | Solder Tab | Silver | 50 Ohms | |
 Radiall USA, Inc. | 0.15 dB | Gold | 500 V | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | White Bronze | 500 | Brass | Plug Male Pin | Panel Mount Through Hole | Threaded | Beryllium Copper | 11 GHz | 1 | IP67 - Dust Tight Waterproof | N Type | Solder | Flange | Solder Tab | Silver | 50 Ohms | |
Radiall USA, Inc. | 0.15 dB | Gold | 500 V | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | White Bronze | 500 | Brass | Plug Male Pin | Panel Mount Through Hole | Threaded | Brass | 11 GHz | 1 | IP67 - Dust Tight Waterproof | N Type | Solder | Flange | Solder | Silver | 50 Ohms | Extended Insulation |
