MKKDS Series

Catalog

FIXED TERMINAL BLOCKS MKKDSN 1,5/3-5,08 BK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Contact Material - Plating	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Mounting Type	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Color	Positions Per Level	Wire Termination	Voltage	Current	Features	Pitch	Pitch	Number of Levels	Screw Thread
Phoenix Contact 1800103	-40 C	100 °C	Polyamide (PA) Nylon	Copper Alloy - Tin Plated	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Through Hole	Horizontal with Board	30 AWG	14 AWG	Black	3	Clamping Yoke Screw Tension Sleeve	300 VDC	10 A	Interlocking (Side)	5.08 mm	0.2 in	2

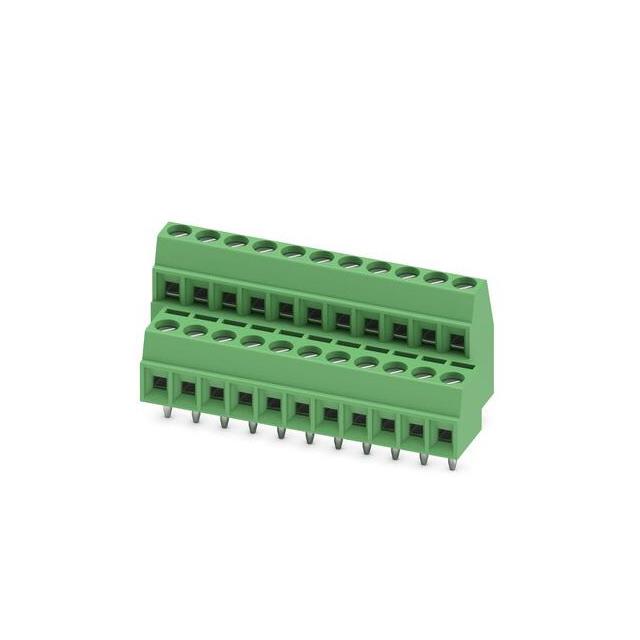

Phoenix Contact 1751484			Polyamide (PA) Nylon		0.25 Nm	1.9 Lb-In	0.22 Nm	2.2 Lb-In	Through Hole	Horizontal with Board	30 AWG	16 AWG	Green	11	Screw - Rising Cage Clamp	300 VDC	10 A		3.5 mm	0.138 "	2	M2
Phoenix Contact 1708026			Polyamide (PA) Nylon		0.25 Nm	1.9 Lb-In	0.22 Nm	2.2 Lb-In	Through Hole	Horizontal with Board	30 AWG	16 AWG	Green	2	Screw - Rising Cage Clamp	300 VDC	10 A		3.81 mm	0.15 in	2	M2

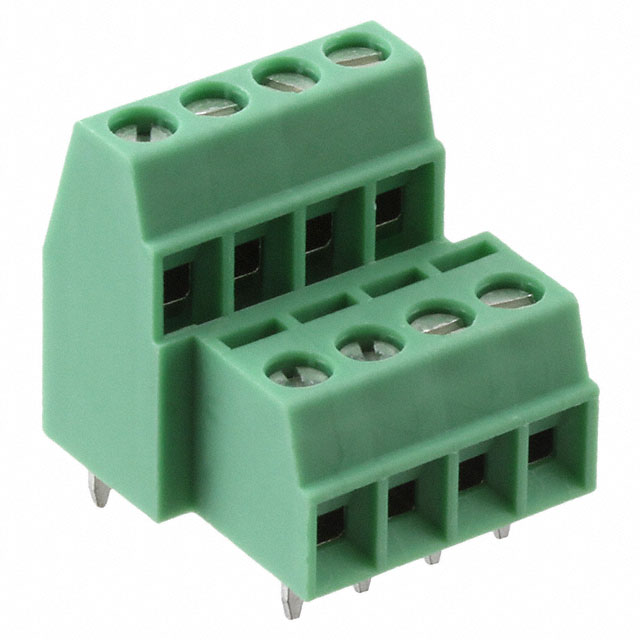

Phoenix Contact 1751413			Polyamide (PA) Nylon		0.25 Nm	1.9 Lb-In	0.22 Nm	2.2 Lb-In	Through Hole	Horizontal with Board	30 AWG	16 AWG	Green	4	Screw - Rising Cage Clamp	300 VDC	10 A		3.5 mm	0.138 "	2	M2
Phoenix Contact 1906161			Polyamide (PA) Nylon		0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Through Hole	Horizontal with Board	30 AWG	12 AWG	Black	2	Screw - Rising Cage Clamp	300 VDC	10 A	Interlocking (Side)	5 mm	0.197 in	1	M3
Phoenix Contact 1719031									Through Hole	Horizontal with Board	30 AWG	10 AWG	Green	2	Screw - Rising Cage Clamp	300 VDC	30 A	Interlocking (Side)	6.35 mm	0.25 in	2
Phoenix Contact 1891894					0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	Through Hole	Horizontal with Board	30 AWG	10 AWG	Gray	3	Screw - Rising Cage Clamp	300 VDC	30 A	Interlocking (Side)	6.35 mm	0.25 in	2	M3
Phoenix Contact 1800049			Polyamide (PA) Nylon		0.25 Nm	1.9 Lb-In	0.22 Nm	2.2 Lb-In	Through Hole	Horizontal with Board	30 AWG	16 AWG	Black	9	Screw - Rising Cage Clamp	300 VDC	10 A		3.5 mm	0.138 "	2	M2
