895-120 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 120POS 0.100

...

Part	Contact Finish	Number of Positions/Bay/Row [custom]	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Read Out	Contact Type	Number of Positions	Termination	Termination Rows	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Color	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Number of Rows	Flange Feature	Flange Feature	Features
EDAC Inc. 895-120-540-212	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Wire Wrap	2	Through Hole	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2
EDAC Inc. 895-120-521-807	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Solder	2	Through Hole		M3 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2
EDAC Inc. 895-120-540-808	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Wire Wrap	2	Through Hole		4-40 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2
EDAC Inc. 895-120-544-507	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Wire Wrap	2	Through Hole		M3 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2

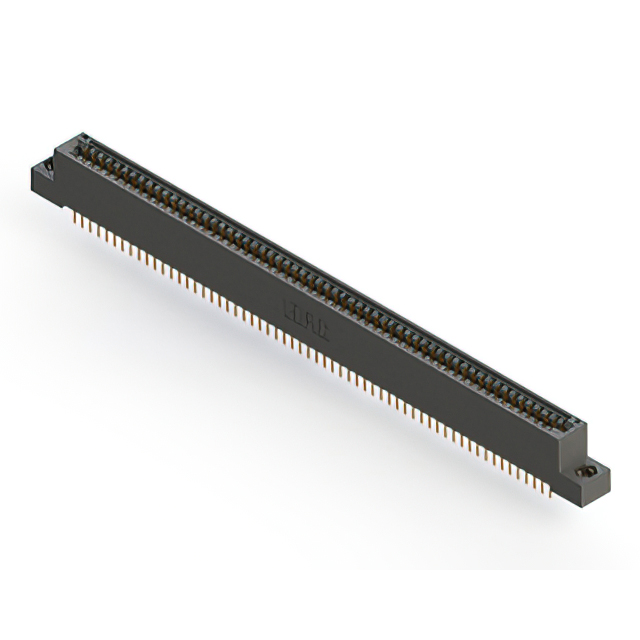

EDAC Inc. 895-120-524-208	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Solder	2	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2
EDAC Inc. 895-120-540-203	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Wire Wrap	2	Through Hole	2.95 mm	Floating Bobbin Flush Mount	0.116 in	10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2
EDAC Inc. 895-120-525-812	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Solder	2	Through Hole		Side Mount Opening Unthreaded		10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2	3.25 mm	0.128 in
EDAC Inc. 895-120-555-807	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Solder	2	Board Edge Straddle Mount		M3 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2			Card Extender
EDAC Inc. 895-120-520-812	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Solder	2	Through Hole		Side Mount Opening Unthreaded		10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2	3.25 mm	0.128 in

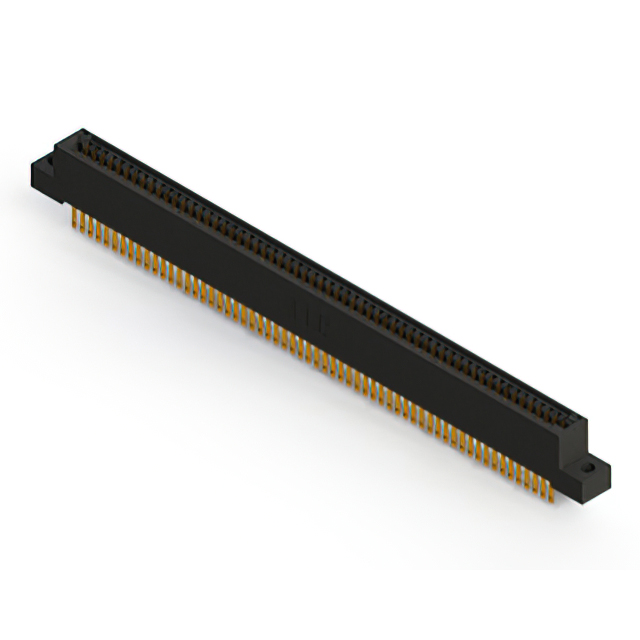

EDAC Inc. 895-120-500-204	Gold	60	Female	125 °C	-40 °C	2.54 mm	0.1 in	Dual	Cantilever	120	Solder Eyelet(s)	2	Through Hole	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	10 Áin	0.25 Ám	Copper Alloy	Black	Polyphenylene Sulfide (PPS)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	2
