AWG28-14 Series

Catalog

FLAT RIBBON CABLE 14CONDUCTORS 28AWG 300V MULTI COLOR 91.44M REEL

Part	Length	Conductor Material	Spool Size [x]	Spool Size [x]	First Conductor Mark	Insulation Resistance	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Wire Gauge	Ribbon Width [custom]	Ribbon Width [custom]	Cable Type	Voltage	Number of Conductors	Jacket (Insulation) Material	Operating Temperature	Pitch	Pitch	Length [x]	Length [x]	Ratings	Jacket Color	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Min]	Operating Temperature [Max]

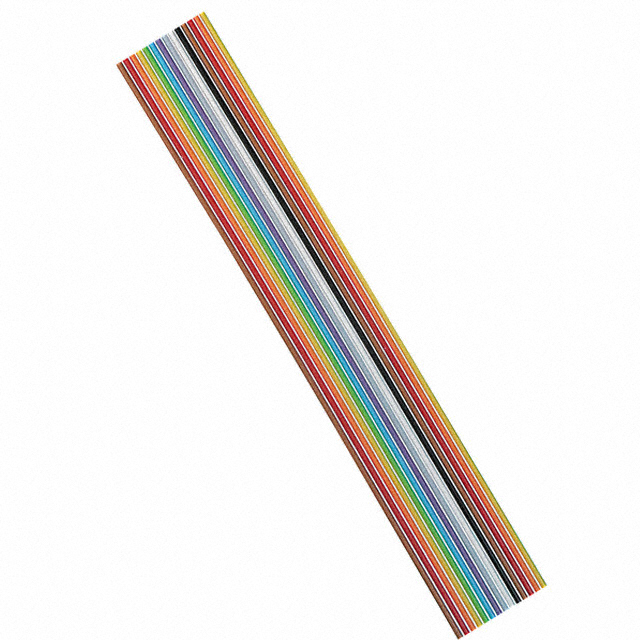

Assmann WSW Components AWG28-14/F/300	Enter Number of Feet in Order Quantity	Copper Tinned	300 ft	91.44 m	Red	100 MOhms	Unshielded	36 AWG	7 Strands	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	28 AWG	17.78 mm	0.7 in	Flat Cable	300 VDC	14	Poly-Vinyl Chloride (PVC)	105 C	0.05 in	1.27 mm	50 ft	15.24 m	UL Style 2651	Multiple	0.89 mm	0.035 in

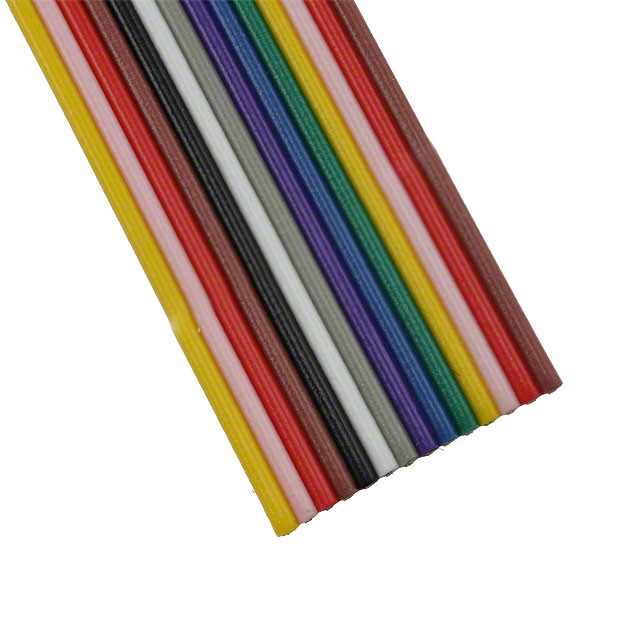

Assmann WSW Components AWG28-14/F-1/300	Enter Number of Feet in Order Quantity	Copper Tinned	300 ft	91.44 m		100 MOhms	Unshielded	36 AWG	7 Strands	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	28 AWG	14 mm	0.551 in	Flat Cable	300 VDC	14	Poly-Vinyl Chloride (PVC)		0.039 in	1 mm	50 ft	15.24 m	UL Style 2651	Multiple	0.89 mm	0.035 in	-10 °C	105 ░C

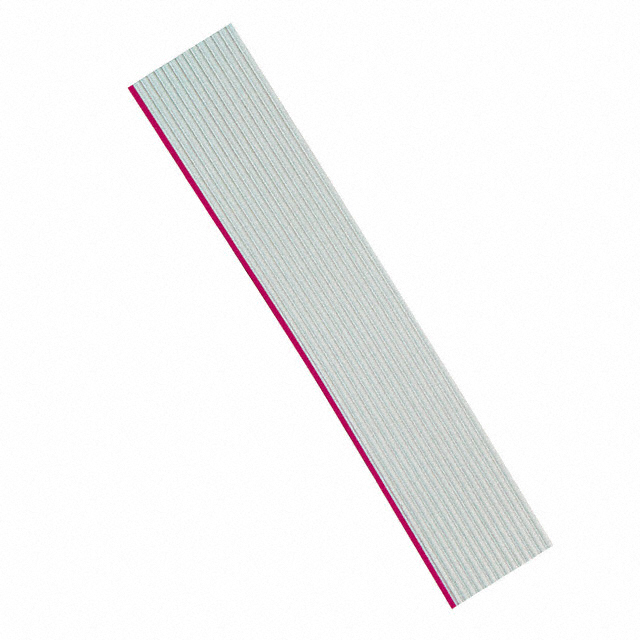

Assmann WSW Components AWG28-14/G/300	Enter Number of Feet in Order Quantity	Copper Tinned	300 ft	91.44 m	Red	100 MOhms	Unshielded	36 AWG	7 Strands	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	28 AWG	17.78 mm	0.7 in	Flat Cable	300 VDC	14	Poly-Vinyl Chloride (PVC)		0.05 in	1.27 mm	50 ft	15.24 m	UL Style 2651	Gray	0.89 mm	0.035 in	-10 °C	105 ░C
Assmann WSW Components AWG28-14/G-1/300		Copper Tinned			Red	100 MOhms	Unshielded	36 AWG	7 Strands	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	28 AWG	14 mm	0.551 in	Flat Cable	300 VDC	14	Poly-Vinyl Chloride (PVC)		0.039 in	1 mm	50 ft	15.24 m	UL Style 2651	Gray	0.89 mm	0.035 in	-10 °C	105 ░C
