d16 Series
Manufacturer: E-Switch
Beta
⌘K

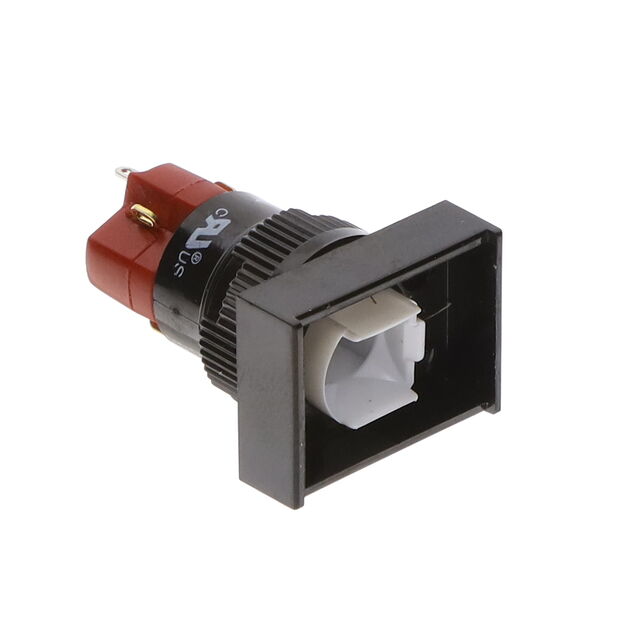

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 6A/24VDC; 5A/250VAC; WHITE; 2.9N
| Part | Voltage Rating - AC | Voltage Rating - DC | Circuit | Panel Cutout Dimensions [diameter] | Switch Function | Termination Style | Current Rating (Amps) | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Type | Type | Mechanical Life | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 125 V | 24 V | SPDT | 16 mm | On-Mom | Solder Lug | 6 A 8 A | White | 55 °C | -20 ░C | Panel Mount Front | Button Rectangular | Illuminated Standard | ||
 E-Switch | 125 V | 24 V | SPDT | 16 mm | On-On | Solder Lug | 6 A 8 A | White | 55 °C | -20 ░C | Panel Mount Front | Button Rectangular | Illuminated Standard | ||
 E-Switch | 125 V | 24 V | SPDT | 16 mm | On-On | Solder Lug | 6 A 8 A | 55 °C | -20 ░C | Panel Mount Front | Button Rectangular | Standard | 100000 Cycles | 50000 Cycles |
