10GENW Series
Manufacturer: Delta Electronics
Beta
⌘K

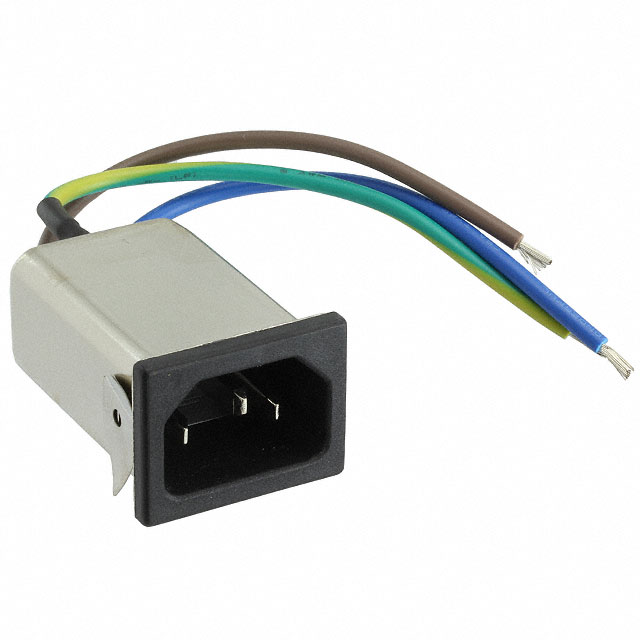

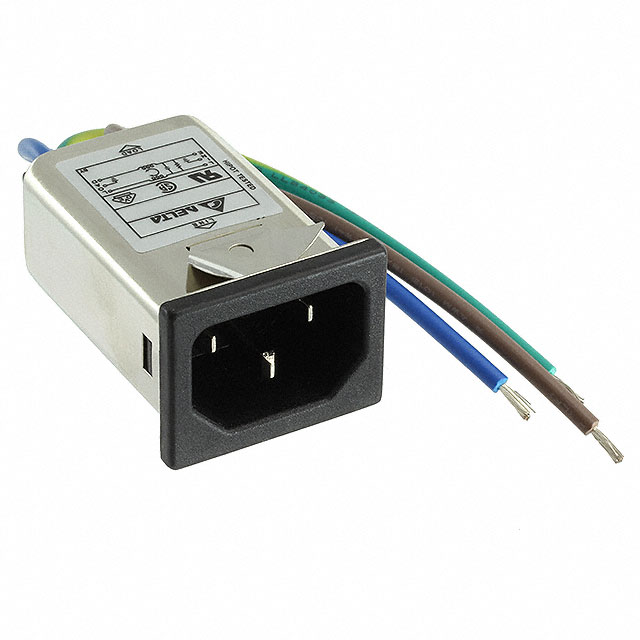

PWR ENT RCPT IEC320-C14 PNL WIRE
| Part | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Accomodates a Fuse | Current Rating - Filter | Current Rating - Appliance Inlet | Termination | Mounting Type | Connector Type | Filter Type | Features | Connector Style | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 21.9 mm | 28.45 mm | 0.032 in | 1.6 mm | 0.063 " | 0.81 mm | 10 A | 10 A | Wire Leads | Panel Mount Snap-In | Receptacle Male Blades | Filtered (EMI RFI) - Commercial Medical | Bleed Resistor | IEC 320-C14 | 115 VAC | 250 VAC | CSA UL VDE | |
 Delta Electronics | 21.5 mm | 29.5 mm | 0.032 in | 1.6 mm | 0.063 " | 0.81 mm | 10 A | 10 A | Wire Leads | Panel Mount Snap-In | Receptacle Male Blades | Filtered (EMI RFI) - Commercial Medical | Bleed Resistor Mounting Clip | IEC 320-C14 | 115 VAC | 250 VAC | CSA UL VDE |
