6212N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

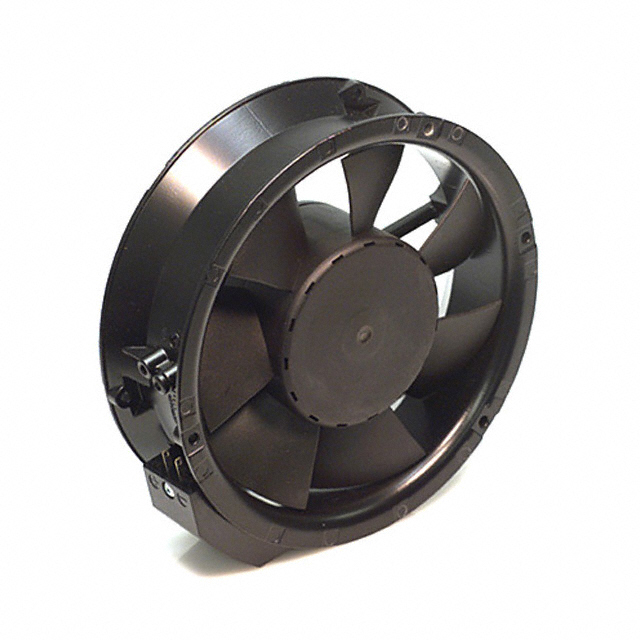

FAN AXL 171.5X50.8MM 12VDC TERM
| Part | Material - Blade | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Size / Dimension [diameter] | Size / Dimension | RPM | Air Flow | Air Flow | Approval Agency | Width [y] | Bearing Type | Power (Watts) | Noise | Fan Type | Operating Temperature [Max] | Operating Temperature [Min] | Weight | Weight | Voltage - Rated | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 80000 Hrs | 15 V | 8 V | Metal | 171.5 mm | Round | 2850 RPM | 206 CFM | 5.77 m³/min | CE CSA UL VDE | 50.8 mm | Ball | 12 W | 50 dB(A) | Tubeaxial | 72 °C 162 °F | -20 ░C | 1.8 lbs | 816.5 g | 12 VDC | 2 |
 ebm-papst Inc. | 171.5 mm | Round | Motorized Impellers | 12 VDC |
