304-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 1POS GOLD PCB

...

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Number of Positions	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Voltage Rating	Mounting Type	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Color	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Post	Contact Type	Pitch - Mating	Pitch - Mating

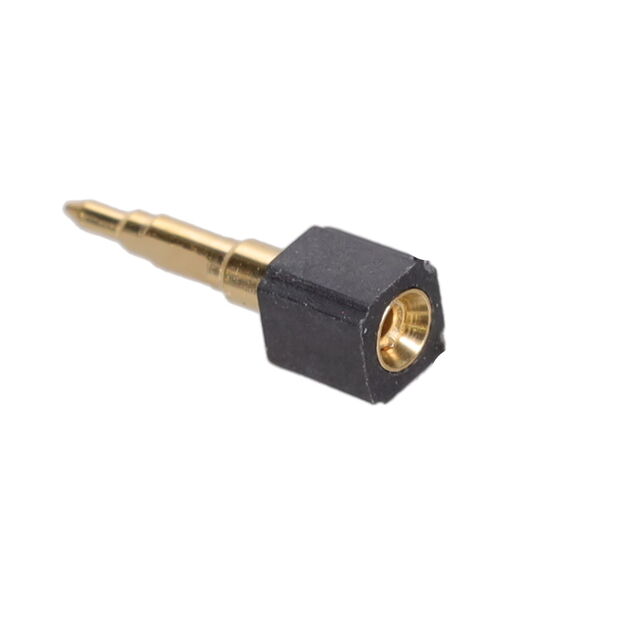

Mill-Max Manufacturing Corp. 304-13-101-41-770000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	1	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	4.45 mm	0.175 in	All	Gold	Female Socket
Mill-Max Manufacturing Corp. 304-13-106-41-780000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	6	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	6.35 mm	0.25 in	All	Gold	Female Socket	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 304-13-109-41-780000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	9	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	6.35 mm	0.25 in	All	Gold	Female Socket	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 304-13-112-41-770000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	12	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	4.45 mm	0.175 in	All	Gold	Female Socket	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 304-13-141-41-780000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	41	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	6.35 mm	0.25 in	All	Gold	Female Socket	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 304-13-119-41-770000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	19	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	4.45 mm	0.175 in	All	Gold	Female Socket	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 304-13-144-41-770000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	44	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	4.45 mm	0.175 in	All	Gold	Female Socket	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 304-13-150-41-780000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	50	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	6.35 mm	0.25 in	All	Gold	Female Socket	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 304-13-130-41-780000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	30	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	6.35 mm	0.25 in	All	Gold	Female Socket	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 304-13-141-41-770000	Beryllium Copper	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 Áin	0.25 çm	1	41	Gold	Receptacle	3 A	-55 C	125 °C	100 V	150 VDC	Through Hole	Press-Fit	0.76 Ám	30 Áin	UL94 V-0	Black	Push-Pull	4.45 mm	0.175 in	All	Gold	Female Socket	0.1 "	2.54 mm
