DRV8886AT Series

37-V, 2-A bipolar stepper motor driver with integrated current sensing & smart tune technology

Catalog

37-V, 2-A bipolar stepper motor driver with integrated current sensing & smart tune technology

Part	Supplier Device Package	Technology	Applications	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Step Resolution [Max]	Step Resolution [Min]	Mounting Type	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Motor Type - Stepper	Interface	Voltage - Load [Max]	Voltage - Load [Min]	Output Configuration	Embedded	Secondary Attributes	Supplied Contents	Type	Utilized IC / Part
Texas Instruments DRV8886ATPWPR	24-HTSSOP	Power MOSFET	General Purpose	Driver - Fully Integrated Control and Power Stage	8 V	37 V	0.0625	1	Surface Mount	0.173 in 4.4 mm	24-PowerTSSOP	150 °C	-40 °C	1.4 A	Bipolar	Logic	37 V	8 V	Half Bridge (4)
Texas Instruments DRV8886RHRT	28-WQFN (5.5x3.5)	Power MOSFET	General Purpose	Driver - Fully Integrated Control and Power Stage	0 V	5.3 V	0.0625	1	Surface Mount		28-WFQFN Exposed Pad	125 °C	-40 °C	2 A	Bipolar	Logic	37 V	8 V	Half Bridge (4)
Texas Instruments DRV8886RHRR	28-WQFN (5.5x3.5)	Power MOSFET	General Purpose	Driver - Fully Integrated Control and Power Stage	0 V	5.3 V	0.0625	1	Surface Mount		28-WFQFN Exposed Pad	125 °C	-40 °C	2 A	Bipolar	Logic	37 V	8 V	Half Bridge (4)
Texas Instruments DRV8886ATRHRT	28-WQFN (5.5x3.5)	Power MOSFET	General Purpose	Driver - Fully Integrated Control and Power Stage	0 V	5.3 V	0.0625	1	Surface Mount		28-WFQFN Exposed Pad	125 °C	-40 °C	2 A	Bipolar	Logic	37 V	8 V	Half Bridge (4)

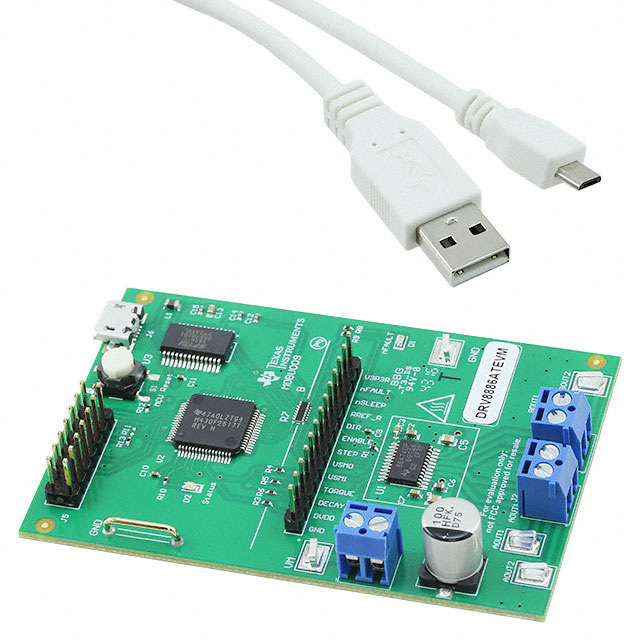

Texas Instruments DRV8886ATEVM																				16-Bit MCU	Graphical User Interface (GUI)	Board(s)	Power Management	DRV8886AT
Texas Instruments DRV8886PWP	24-HTSSOP	Power MOSFET	General Purpose	Driver - Fully Integrated Control and Power Stage	8 V	37 V	0.0625	1	Surface Mount	0.173 in 4.4 mm	24-PowerTSSOP	150 °C	-40 °C	1.4 A	Bipolar	Logic	37 V	8 V	Half Bridge (4)

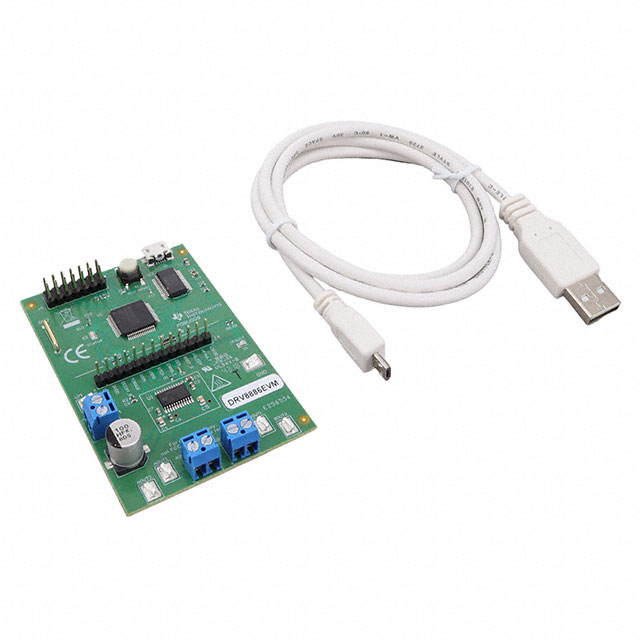

Texas Instruments DRV8886EVM																				16-Bit MCU	Graphical User Interface (GUI)	Board(s)	Power Management	DRV8886
Texas Instruments DRV8886ATPWP	24-HTSSOP	Power MOSFET	General Purpose	Driver - Fully Integrated Control and Power Stage	8 V	37 V	0.0625	1	Surface Mount	0.173 in 4.4 mm	24-PowerTSSOP	150 °C	-40 °C	1.4 A	Bipolar	Logic	37 V	8 V	Half Bridge (4)

Catalog

37-V, 2-A bipolar stepper motor driver with integrated current sensing & smart tune technology

Key Features

• PWM microstepping stepper motor driverUp to 1/16 microsteppingNon-circular and standard ½ step modesIntegrated current sense functionalityNo sense resistors required±6.25% Full-scale current accuracySmart tune adaptive decay technology,slow, and mixed decay options8 to 37-V Operating supply voltage rangeLow RDS(ON): 550 mΩ HS + LS at 24 V, 25°CHigh current capacity3-A Peak per bridge2-A Full-scale per bridge1.4-A rms per bridgeDynamic and fixed off-time PWM current regulationSimple STEP/DIR interfaceLow-current sleep mode (20 µA)Small package and footprint24 HTSSOP PowerPAD™ package28 WQFN packageProtection featuresVM undervoltage lockout (UVLO)Charge pump undervoltage (CPUV)Overcurrent protection (OCP)Thermal shutdown (TSD)Fault condition indication pin (nFAULT)PWM microstepping stepper motor driverUp to 1/16 microsteppingNon-circular and standard ½ step modesIntegrated current sense functionalityNo sense resistors required±6.25% Full-scale current accuracySmart tune adaptive decay technology,slow, and mixed decay options8 to 37-V Operating supply voltage rangeLow RDS(ON): 550 mΩ HS + LS at 24 V, 25°CHigh current capacity3-A Peak per bridge2-A Full-scale per bridge1.4-A rms per bridgeDynamic and fixed off-time PWM current regulationSimple STEP/DIR interfaceLow-current sleep mode (20 µA)Small package and footprint24 HTSSOP PowerPAD™ package28 WQFN packageProtection featuresVM undervoltage lockout (UVLO)Charge pump undervoltage (CPUV)Overcurrent protection (OCP)Thermal shutdown (TSD)Fault condition indication pin (nFAULT)

Description

The DRV8886AT is a stepper motor driver for industrial and consumer end equipment applications. The device is fully integrated with two N-channel power MOSFET H-bridge drivers, a microstepping indexer, and integrated current sensing. The DRV8886AT is capable of driving up to 2-A full scale or 1.4-A rms output current (24-V and TA= 25°C, dependent on PCB design). The DRV8886AT uses an internal current sense architecture to eliminate the need for two external power sense resistors saving PCB area and system cost. The DRV8886AT uses an internal PWM current regulation scheme adjustable between smart tune adaptive decay technology, slow, and mixed decay options. Smart tune adaptive decay technology automatically adjusts for optimal current regulation performance and compensates for motor variation and aging effects. A simple STEP/DIR interface allows an external controller to manage the direction and step rate of the stepper motor. The device can be configured in different step modes ranging from full-step to 1/16 microstepping. A low-power sleep mode is provided for very low standby quiescent standby current using a dedicated nSLEEP pin. Device protection features are provided for supply undervoltage, charge pump faults, overcurrent, short circuits, and overtemperature. Fault conditions are indicated by the nFAULT pin. The DRV8886AT is a stepper motor driver for industrial and consumer end equipment applications. The device is fully integrated with two N-channel power MOSFET H-bridge drivers, a microstepping indexer, and integrated current sensing. The DRV8886AT is capable of driving up to 2-A full scale or 1.4-A rms output current (24-V and TA= 25°C, dependent on PCB design). The DRV8886AT uses an internal current sense architecture to eliminate the need for two external power sense resistors saving PCB area and system cost. The DRV8886AT uses an internal PWM current regulation scheme adjustable between smart tune adaptive decay technology, slow, and mixed decay options. Smart tune adaptive decay technology automatically adjusts for optimal current regulation performance and compensates for motor variation and aging effects. A simple STEP/DIR interface allows an external controller to manage the direction and step rate of the stepper motor. The device can be configured in different step modes ranging from full-step to 1/16 microstepping. A low-power sleep mode is provided for very low standby quiescent standby current using a dedicated nSLEEP pin. Device protection features are provided for supply undervoltage, charge pump faults, overcurrent, short circuits, and overtemperature. Fault conditions are indicated by the nFAULT pin.
