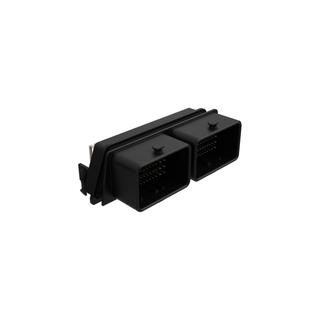

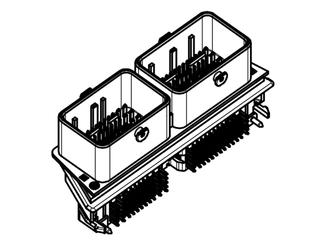

2.50mm, 3.70mm CMC Header, Right-Angle, 120 Circuits, Black
2.50mm, 3.70mm CMC Header, Right-Angle, 120 Circuits, Black
| Part | Contact Material | Contact Type | Contact Shape | Current Rating (Amps) | Features | Number of Rows | Connector Type | Number of Positions | Termination | Style | Insulation Material | Number of Positions Loaded | Contact Finish - Post | Insulation Color | Contact Length - Post | Contact Length - Post | Mounting Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Copper Alloy | Male Pin | Square | 12 A | Board Guide | 5 | Header | 120 | Solder | Board to Cable/Wire | Polybutylene Terephthalate (PBT) Glass Filled | All | Tin | Black | 3.6 mm | 0.142 in | Through Hole Right Angle | Push-Pull | -40 °C | 105 ░C | Shrouded - 4 Wall |
