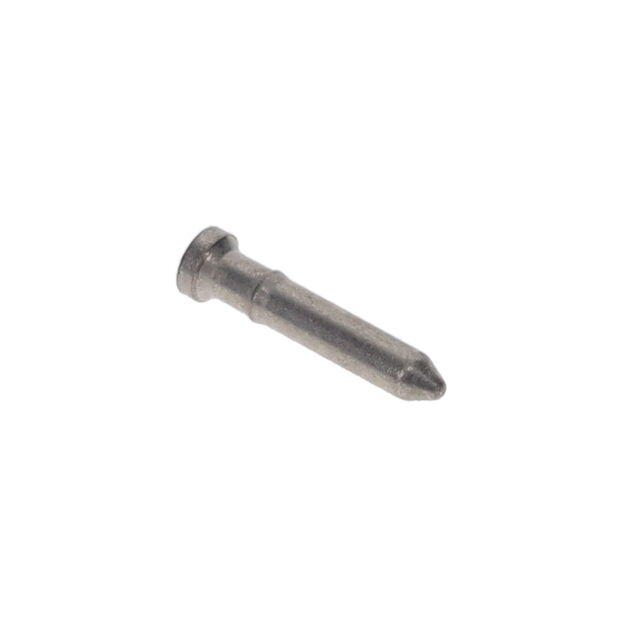

9225-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN RECEPT PIN .012-.017" .225"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Type | Length - Overall | Length - Overall | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Contact Finish | Socket Depth | Socket Depth | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Beryllium Copper | 0.028 in | 0.71 mm | No Tail | 5.72 mm | 0.225 in | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | Gold | 3.94 mm | 0.155 in | 1.4 mm | 0.055 in | Press-Fit | 0.25 Ám | 10 Áin | 0.039 in | 0.99 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Beryllium Copper | 0.028 in | 0.71 mm | No Tail | 5.72 mm | 0.225 in | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | Gold | 3.94 mm | 0.155 in | 1.4 mm | 0.055 in | Press-Fit | 0.76 Ám | 30 Áin | 0.039 in | 0.99 mm |
