19440031 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, M20 TOP ENTRY, 2 PEGS, HOOD, TOP ENTRY, STAINLESS STEEL BODY, 1 LEVER, 3A

Part	Size	Ingress Protection	Thread Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Connector Type	Lock Location	Style	Features

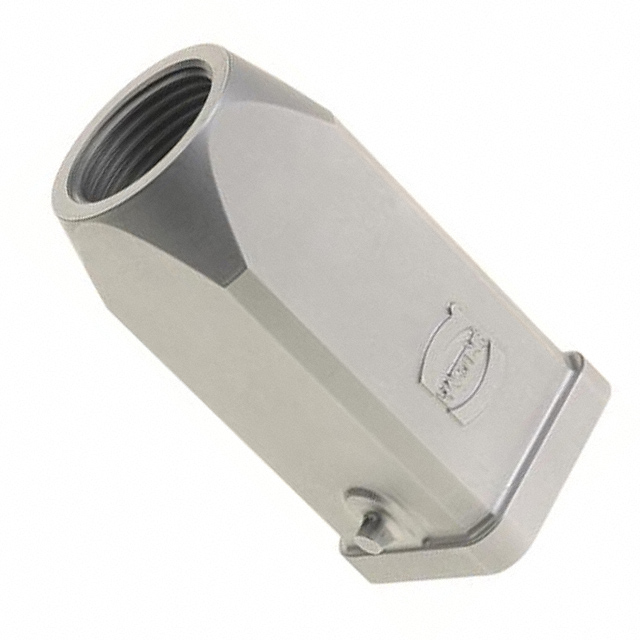

HARTING 19440031440	3 A	IP67 - Dust Tight Waterproof	M20	1.051 in	2.356 in	1.051 "	59.85 mm	26.7 mm	26.7 mm	125 °C	-40 C	Stainless Steel	Hood	Locking Clip (1) on Base Bottom	Top Entry

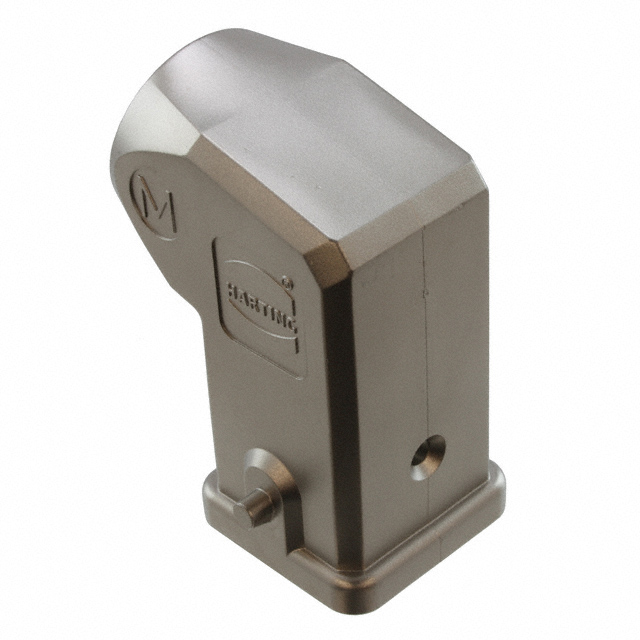

HARTING 19440031643	3 A	IP67 - Dust Tight Waterproof	M20	1.063 in	2.126 in	1.063 in	54 mm	27 mm	27 mm	125 °C	-40 C	Stainless Steel	Hood	Locking Clip (1) on Base Bottom	Side Entry

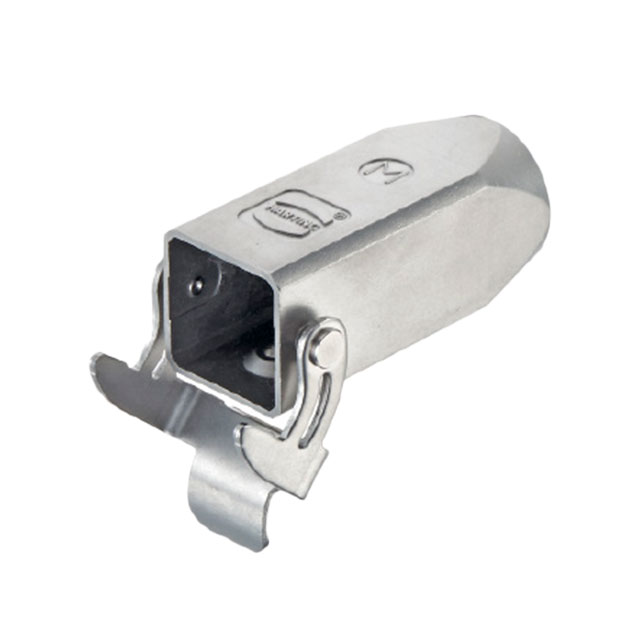

HARTING 19440031750	3 A	IP67 - Dust Tight Waterproof	M20	0.949 in	2.244 "	0.949 in	57 mm	24.1 mm	24.1 mm	125 °C	-40 C	Stainless Steel	Hood - Coupling Hood/Housing - Coupling	Locking Clip (1) on Hood Top	Top or Bottom Entry	Cable to Cable

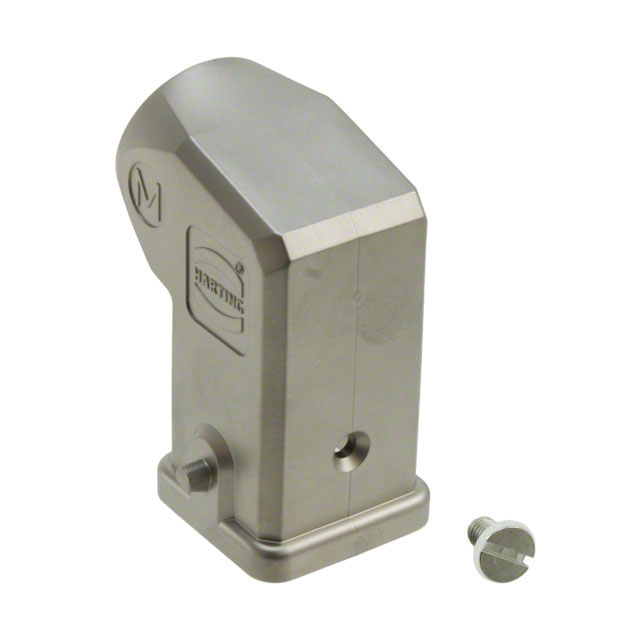

HARTING 19440031640	3 A	IP67 - Dust Tight Waterproof	M20	1.063 in	2.13 in	1.063 in	54.1 mm	27 mm	27 mm	125 °C	-40 C	Stainless Steel	Hood	Locking Clip (1) on Base Bottom	Side Entry
HARTING 19440031250	3 A	IP67 - Dust Tight Waterproof	M20	2.268 in	0.949 in	1.575 "	24.1 mm	57.6 mm	40 mm	125 °C	-40 C	Stainless Steel	Base - Panel Mount 90°	Locking Clip (1) on Base Bottom	Side Entry

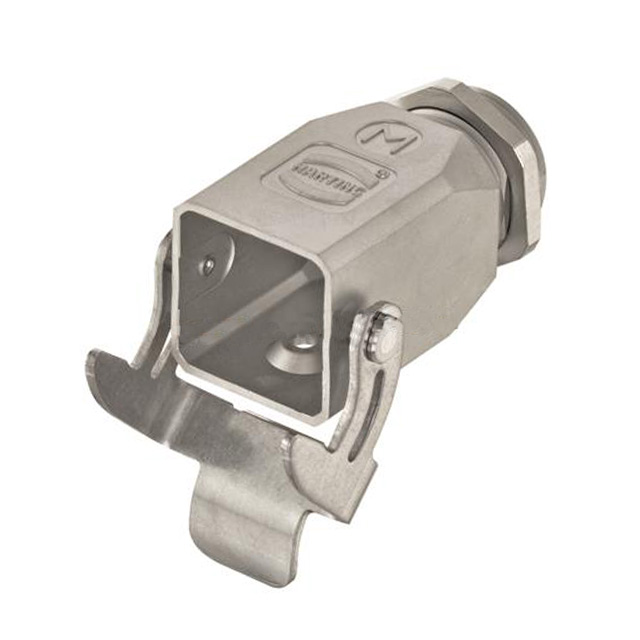

HARTING 19440031150	3 A	IP65 IP67	M20							125 °C	-40 C	Stainless Steel	Hood	Locking Clip (1) on Base Bottom	Top Entry
