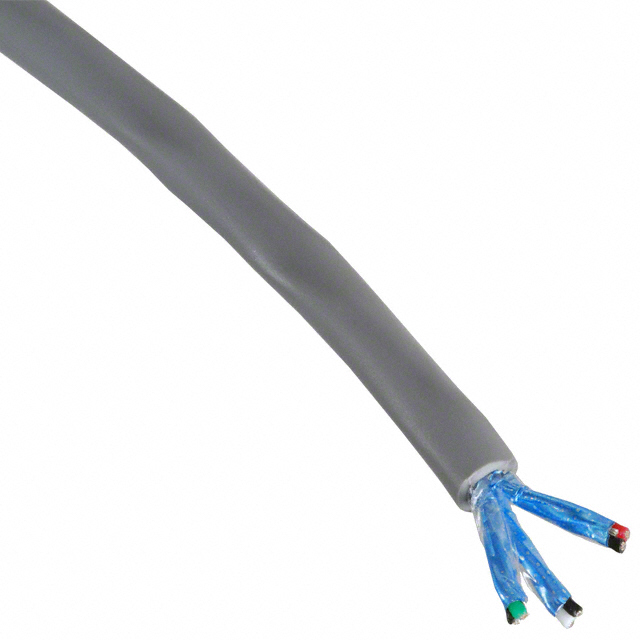

6010C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 6CON 22AWG SLATE 500'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Wire Gauge | Length | Length | Number of Conductors | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Jacket Color | Voltage | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Features | Conductor Material | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 7.57 mm | 0.298 " | Communication Control | 22 AWG | 152.4 m | 500 ft | 6 | Poly-Vinyl Chloride (PVC) | -20 ░C | 60 °C | Foil | Slate | 300 VDC | Multi-Pair | 30 AWG | 7 | Drain Wire | Copper Tinned | Polypropylene (PP) | 1.219 mm | 0.048 in | |||
ALPHA WIRE | Aluminum | 100 % | 7.57 mm | 0.298 " | 22 AWG | 6 | Poly-Vinyl Chloride (PVC) | Foil | Slate | 300 VDC | Multi-Pair | 28 AWG | 7 | Drain Wire | Copper Tinned | Polypropylene (PP) | 1.219 mm | 0.048 in | UL Style 2493 | 328.1 ft | 100 m |
