LNJ852 Series

Catalog

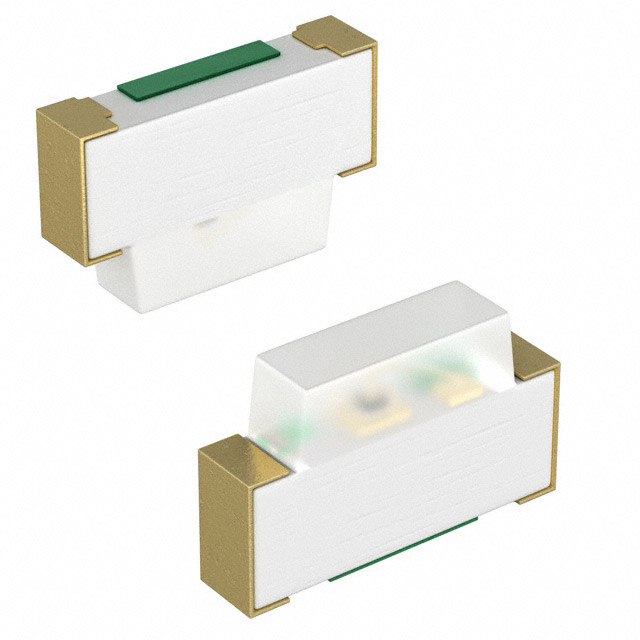

LED ORANGE SV 0.4 TYPE SMD R/A

Part	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Millicandela Rating	Wavelength - Dominant	Supplier Device Package	Lens Style	Height (Max) [Max] [z]	Wavelength - Peak	Configuration	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Package / Case	Mounting Type
Panasonic Industrial Automation Sales LNJ852W86RA	1.1 mm	1.8 mm	5 mA	9 mcd	605 nm	SV (Side View) -0.4 Type	Rectangle with Flat Top	0.5 mm	610 nm	Standard	1.95 V	0.4 mm	1.2 mm	2-SMD No Lead	Surface Mount Right Angle
Panasonic Industrial Automation Sales LNJ852W83RA	1.1 mm	1.8 mm	5 mA	17 mcd	620 nm	SV (Side View) -0.4 Type	Rectangle with Flat Top	0.5 mm	630 nm	Standard	1.9 V	0.4 mm	1.2 mm	2-SMD No Lead	Surface Mount Right Angle
