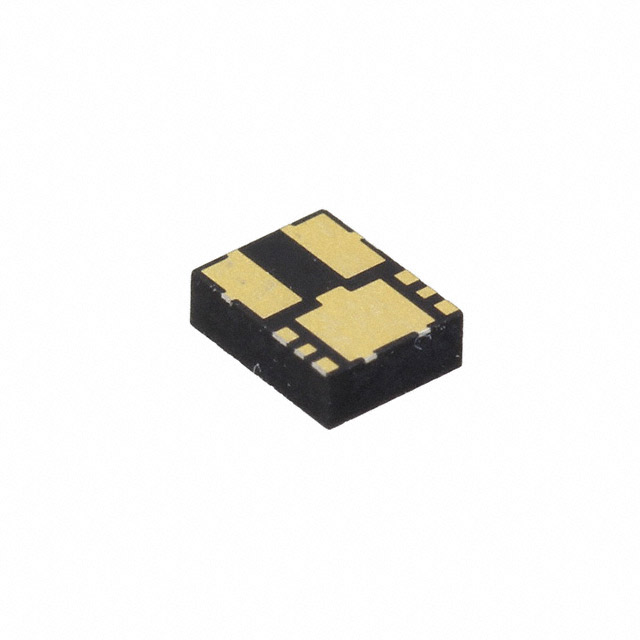

XCL214 Series

Catalog

1.5A INDUCTOR BUILT-IN STEP-DOWN

Part	Mounting Type	Package / Case	Supplier Device Package	Current - Output (Max) [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Features	Voltage - Input (Max) [Max]	Voltage - Output 1	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]
Torex Semiconductor Ltd XCL214B173DR	Surface Mount	9-PowerTFQFN	USP-9B01
Torex Semiconductor Ltd XCL214B253DR	Surface Mount	9-PowerTFQFN	USP-9B01	1.5 A	ITE (Commercial)	-40 C	105 ░C	92 %	OCP OTP SCP UVLO	5.5 V	2.5 V	Non-Isolated PoL Module	1	2.5 mm	3.2 mm	0.13 "	1 mm	0.04 in	0.1 in	2.7 V
Torex Semiconductor Ltd XCL214B113DR	Surface Mount	9-PowerTFQFN	USP-9B01
Torex Semiconductor Ltd XCL214B303DR	Surface Mount	9-PowerTFQFN	USP-9B01	1.5 A	ITE (Commercial)	-40 C	105 ░C	92 %	OCP OTP SCP UVLO	5.5 V	3 V	Non-Isolated PoL Module	1	2.5 mm	3.2 mm	0.13 "	1 mm	0.04 in	0.1 in	2.7 V
Torex Semiconductor Ltd XCL214B153DR	Surface Mount	9-PowerTFQFN	USP-9B01	1.5 A	ITE (Commercial)	-40 C	105 ░C	92 %	OCP OTP SCP UVLO	5.5 V	1.5 V	Non-Isolated PoL Module	1	2.5 mm	3.2 mm	0.13 "	1 mm	0.04 in	0.1 in	2.7 V
