SP400 Series
Manufacturer: Bergquist
Beta
⌘K
THERMAL INTERFACE PRODUCTS SIL-PAD, 7 MIL, FLAME RETARDANT, 0.437X0.312", SIL-PAD TSP900/400, IDH 2192658
| Part | Storage/Refrigeration Temperature (Maximum) | Storage/Refrigeration Temperature (Minimum) | Shelf Life | Backing | Carrier | Color | Outline Width | Outline Length | Thickness | Thermal Conductivity | Shape | Material | Type | Usage | Thermal Resistivity | Adhesive | Shelf Life Start |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

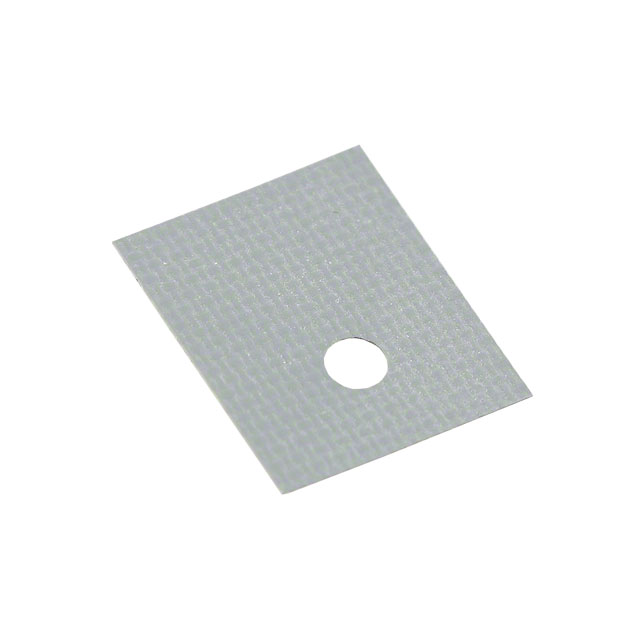

 Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 7.92 mm | 11.1 mm | 0.007 in | 0.9 W/m-K | Rectangular | Silicone Rubber | Pad Sheet | TO-126 | |||
 Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 14.27 mm | 21.72 mm | 0.009 in | 0.9 W/m-K | Rectangular | Silicone Rubber | Pad Sheet | TO-220 | 1.4 °C/W | ||
 Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 12.7 mm | 19.05 mm | 0.009 in | 0.9 W/m-K | Rectangular | Silicone Rubber | Pad Sheet | TO-220 | 1.4 °C/W | ||
Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 5.08 mm | 15.87 mm | 0.009 in | 0.9 W/m-K | Round | Silicone Rubber | Pad Sheet | DO-4 | 1.4 °C/W | ||

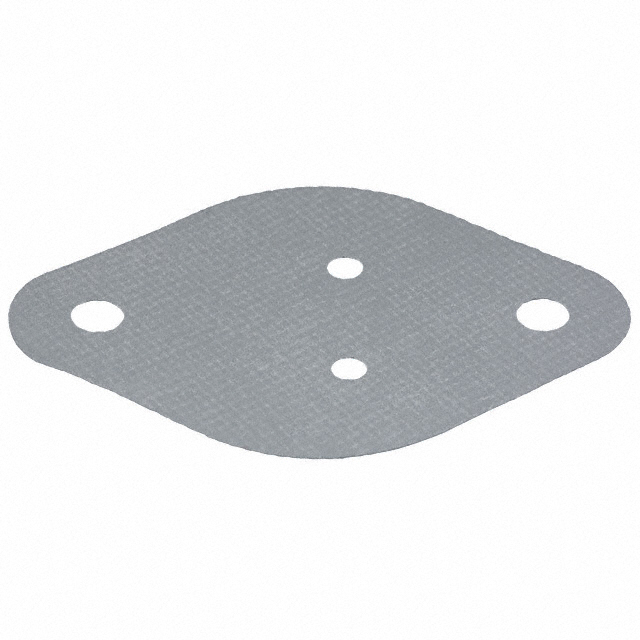

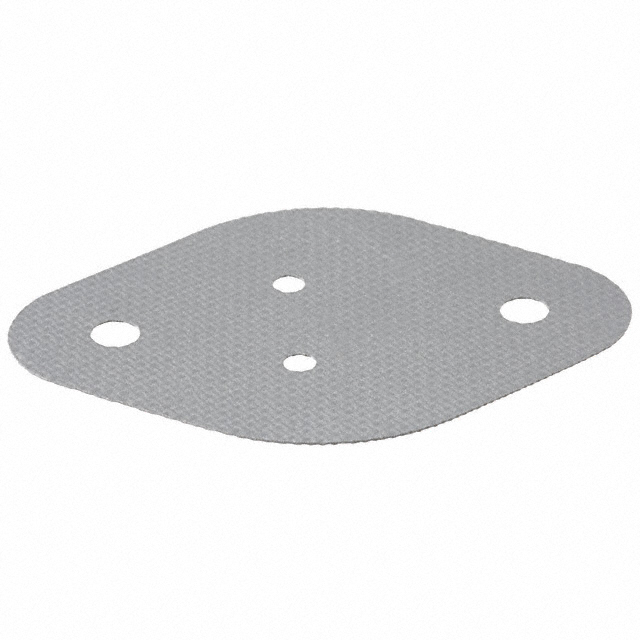

Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 25.4 mm | 36.58 mm | 0.009 in | 0.9 W/m-K | Rhombus | Silicone Rubber | Pad Sheet | TO-3 | 1.4 °C/W | ||

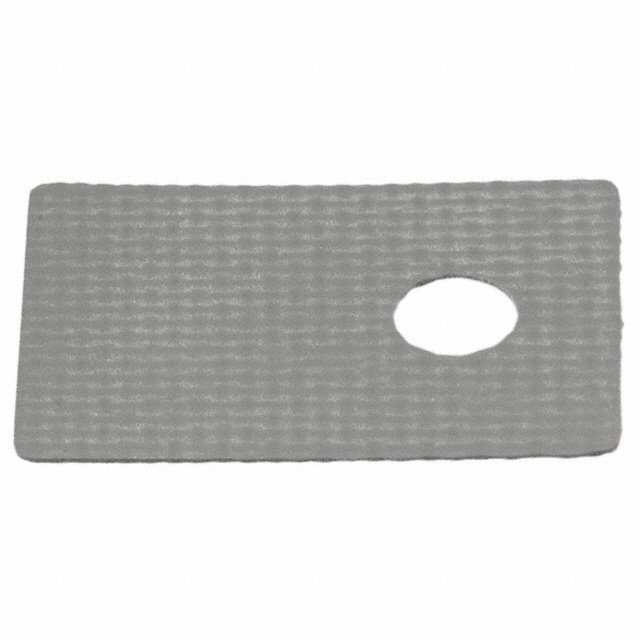

Bergquist | 86 °F | 41 °F | 6 Months | Fiberglass | Fiberglass | Gray | 9.78 mm | 12.7 mm | 0.009 in | 0.9 W/m-K | Rectangular | Silicone Rubber | Pad Sheet | TO-220 | 1.4 °C/W | Adhesive - One Side | |

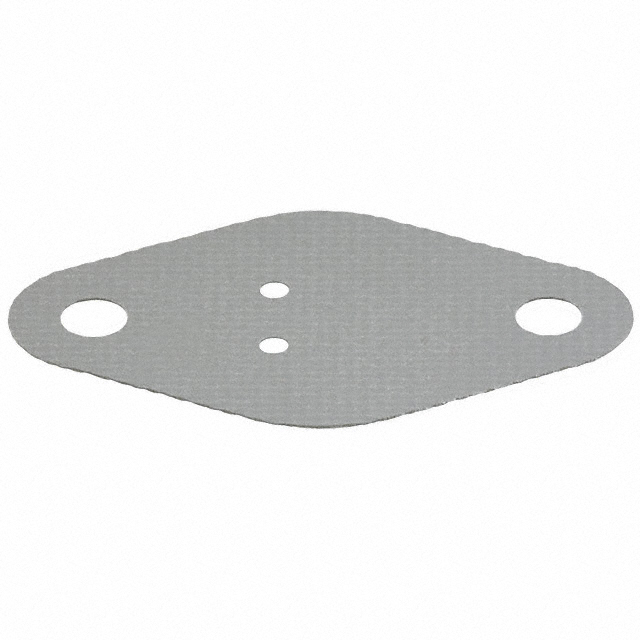

 Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 19.35 mm | 33.32 mm | 0.009 in | 0.9 W/m-K | Rhombus | Silicone Rubber | Pad Sheet | TO-66 | 1.4 °C/W | ||
 Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 28.96 mm | 41.91 mm | 0.007 in | 0.9 W/m-K | Rhombus | Silicone Rubber | Pad Sheet | TO-3 | 1.13 °C/W | Date Received | |
Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 30.15 mm | 30.61 mm | 0.007 in | 0.9 W/m-K | Rectangular | Silicone Rubber | Pad Sheet | RH-25 | 1.13 °C/W | ||
 Bergquist | 86 °F | 41 °F | 12 Months | Fiberglass | Fiberglass | Gray | 31.75 mm | 45.21 mm | 0.009 in | 0.9 W/m-K | Rhombus | Silicone Rubber | Pad Sheet | TO-3 | 1.4 °C/W |
