PEC18 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 18POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Shrouding	Number of Positions Loaded	Termination	Connector Type	Contact Shape	Style	Contact Length - Mating	Contact Length - Mating	Number of Rows	Insulation Height	Insulation Height	Insulation Color	Current Rating (Amps)	Contact Type	Insulation Material	Contact Material	Contact Finish - Post	Fastening Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]	Overall Contact Length

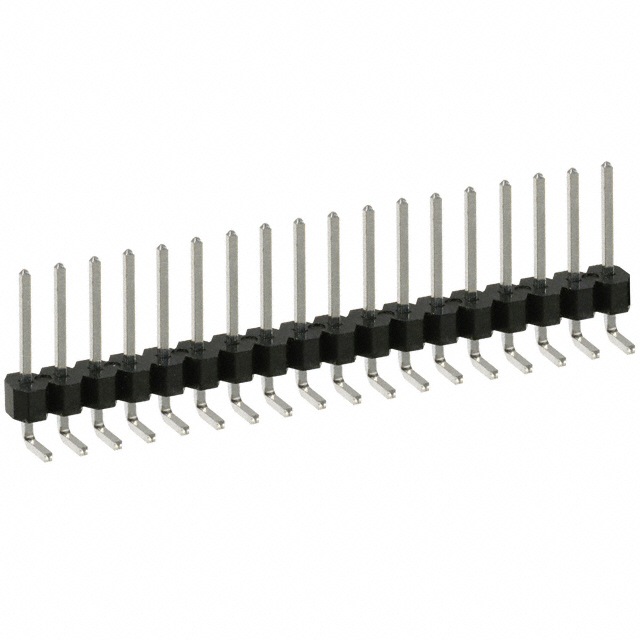

Sullins Connector Solutions PEC18SGAN	2.54 µm	100 µin	0.1 "	2.54 mm	Right Angle Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	8.08 mm	0.318 in	1	3.56 mm	0.14 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0	0.1 in	2.54 mm	-65 ░C	125 °C	18	100 çin	2.54 çm
Sullins Connector Solutions PEC18DFAN	2.54 µm	100 µin	0.1 "	2.54 mm	Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	8.08 mm	0.318 in		2.54 mm	0.1 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0	0.12 in	3.05 mm	-65 ░C	125 °C	36	100 çin	2.54 çm	2	0.1 in	2.54 mm	13.67 mm	0.538 in

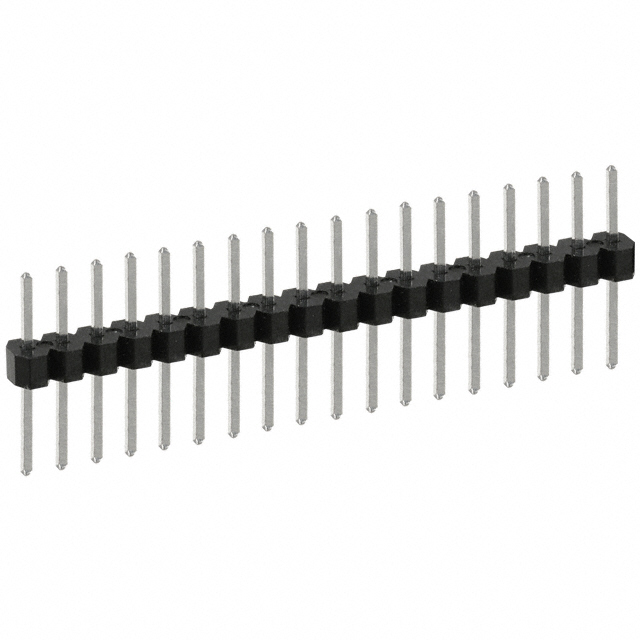

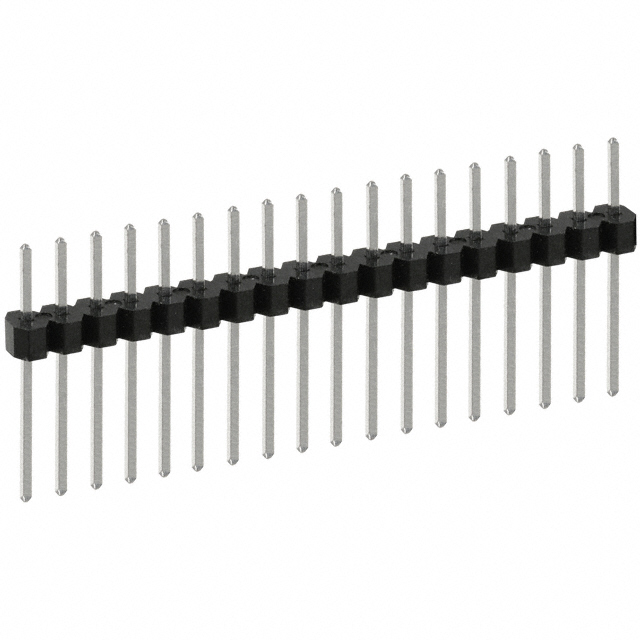

Sullins Connector Solutions PEC18SACN	2.54 µm	100 µin	0.1 "	2.54 mm	Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	5.84 mm	0.23 in	1	2.54 mm	0.1 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0	0.32 in	8.13 mm	-65 ░C	125 °C	18	100 çin	2.54 çm						16.51 mm	0.65 in

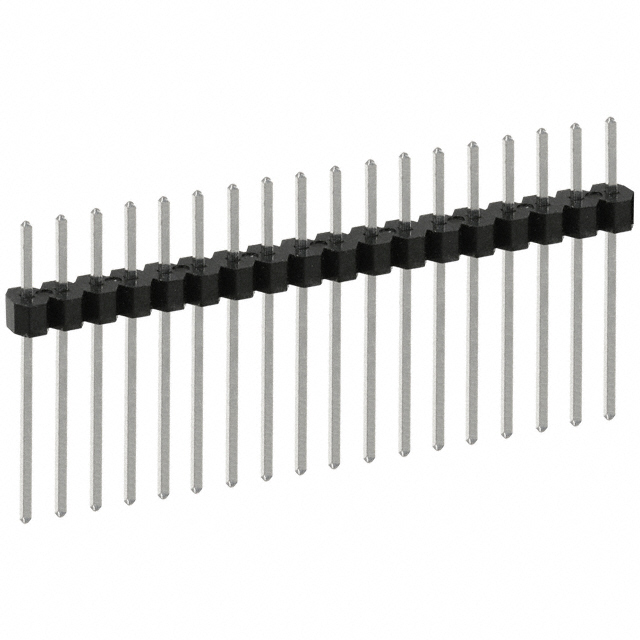

Sullins Connector Solutions PEC18SAGN	2.54 µm	100 µin	0.1 "	2.54 mm	Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	5.84 mm	0.23 in	1	2.54 mm	0.1 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0	0.72 "	18.29 mm	-65 ░C	125 °C	18	100 çin	2.54 çm						26.67 mm	1.05 in
Sullins Connector Solutions PEC18DAAN	2.54 µm	100 µin	0.1 "	2.54 mm	Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	5.84 mm	0.23 in		2.54 mm	0.1 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0	0.12 in	3.05 mm	-65 ░C	125 °C	36	100 çin	2.54 çm	2	0.1 in	2.54 mm	11.43 mm	0.45 in

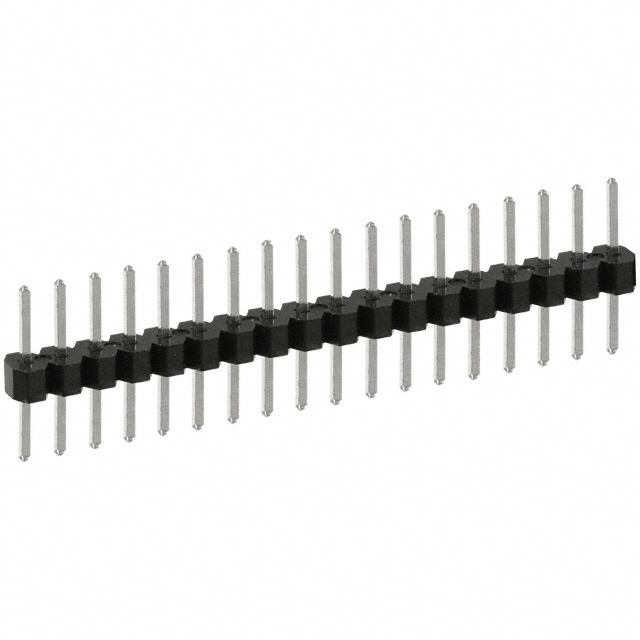

Sullins Connector Solutions PEC18SABN	2.54 µm	100 µin	0.1 "	2.54 mm	Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	5.84 mm	0.23 in	1	2.54 mm	0.1 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0	0.23 "	5.84 mm	-65 ░C	125 °C	18	100 çin	2.54 çm						14.22 mm	0.56 in

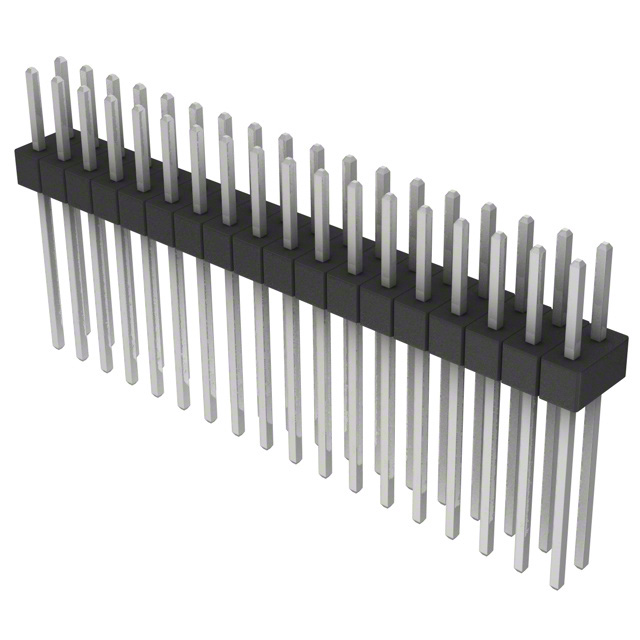

Sullins Connector Solutions PEC18DAEN	2.54 µm	100 µin	0.1 "	2.54 mm	Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	5.84 mm	0.23 in		2.54 mm	0.1 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0	0.52 in	13.21 mm	-65 ░C	125 °C	36	100 çin	2.54 çm	2	0.1 in	2.54 mm			21.59 mm	0.85 in

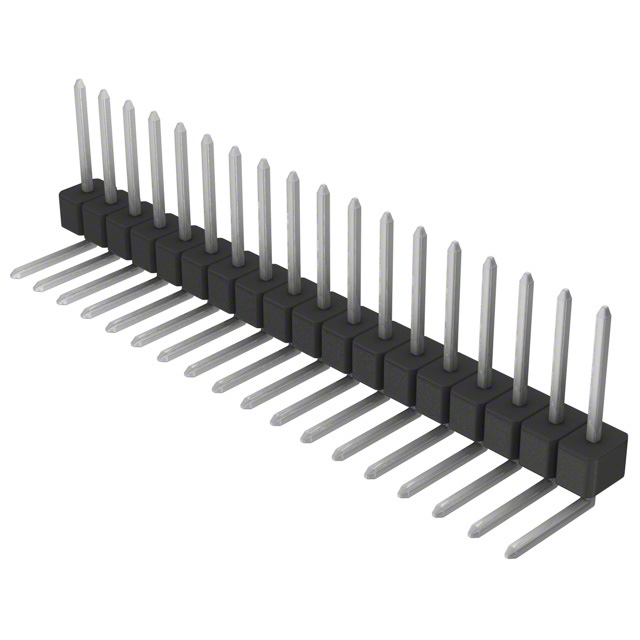

Sullins Connector Solutions PEC18SGBN	2.54 µm	100 µin	0.1 "	2.54 mm	Right Angle Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	8.08 mm	0.318 in	1	3.56 mm	0.14 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0			-65 ░C	125 °C	18	100 çin	2.54 çm								5.08 mm	0.2 "
Sullins Connector Solutions PEC18DBBN	2.54 µm	100 µin	0.1 "	2.54 mm	Right Angle Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	5.84 mm	0.23 in				Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0			-65 ░C	125 °C	36	100 çin	2.54 çm	2	0.1 in	2.54 mm					5.08 mm	0.2 "	6.1 mm	0.24 in

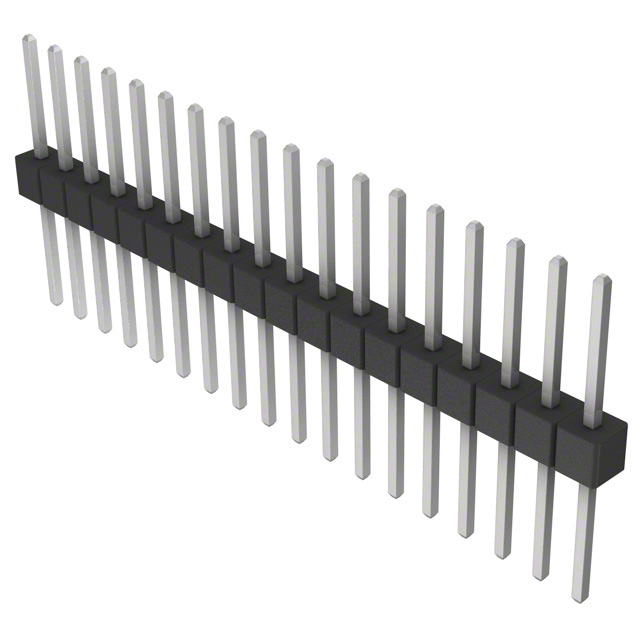

Sullins Connector Solutions PEC18SFCN	2.54 µm	100 µin	0.1 "	2.54 mm	Through Hole	Unshrouded	All	Solder	Header Breakaway	Square	Board to Board Cable	8.08 mm	0.318 in	1	2.54 mm	0.1 in	Black	3 A	Male Pin	Polybutylene Terephthalate (PBT)	Phosphor Bronze	Tin	Push-Pull	UL94 V-0	0.32 in	8.13 mm	-65 ░C	125 °C	18	100 çin	2.54 çm						18.75 mm						0.738 in
