9302 Series
Manufacturer: Belden Inc.
Beta
⌘K

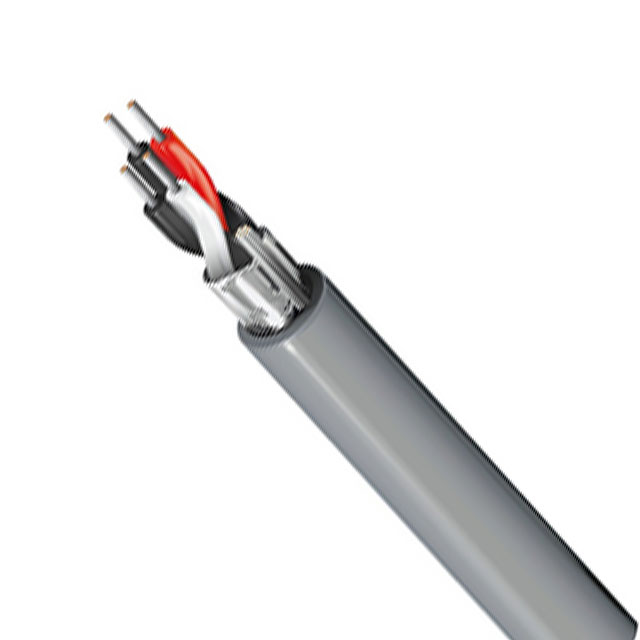

MULTI-PAIR 4COND 22AWG
| Part | Shield Coverage | Shield Material | Conductor Insulation | Number of Conductors | Conductor Strand | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Shield Type | Cable Type | Conductor Material | Jacket (Insulation) Material | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 4 | Solid | Chrome | 0.244 in | 6.2 mm | 22 AWG | 300 VDC | 80 °C | -20 ░C | UL Style 2464 | 304.8 m | 1000 ft | 0.813 mm | 0.032 in | Drain Wire | Foil | Multi-Pair | Copper Tinned | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation |
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 4 | Solid | Chrome | 0.244 in | 6.2 mm | 22 AWG | 300 VDC | 80 °C | -20 ░C | UL Style 2464 | 152.4 m | 500 ft | 0.813 mm | 0.032 in | Drain Wire | Foil | Multi-Pair | Copper Tinned | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation |
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 4 | Solid | Chrome | 0.244 in | 6.2 mm | 22 AWG | 300 VDC | 80 °C | -20 ░C | UL Style 2464 | 0.813 mm | 0.032 in | Drain Wire | Foil | Multi-Pair | Copper Tinned | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | ||
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | 4 | Solid | Chrome | 0.244 in | 6.2 mm | 22 AWG | 80 °C | -20 ░C | UL Style 2464 | 152.4 m | 500 ft | 0.813 mm | 0.032 in | Drain Wire | Foil | Multi-Pair | Copper Tinned | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation |
