2842164 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

16P,2MM,BRK HDR,DRRT,2.8,0.76AU,

Part	Number of Rows	Connector Type	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Length - Post [x]	Contact Length - Post	Contact Type	Voltage Rating	Number of Positions	Fastening Type	Insulation Color	Contact Finish - Mating	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Contact Shape	Insulation Material	Material Flammability Rating	Number of Positions
TE Connectivity Raychem Cable Protection 2842164-8	2	Breakaway Header	Tin	2 çm	78.7 çin	30 Áin	0.76 Ám	All	Solder	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Male Pin	125 VAC	16	Push-Pull	Black	Gold	Unshrouded	0.079 in	2 mm	Through Hole Right Angle	2 A	125 °C	-40 °C	0.079 in	2 mm	1.5 mm	0.059 "	Square	Thermoplastic	UL94 V-0

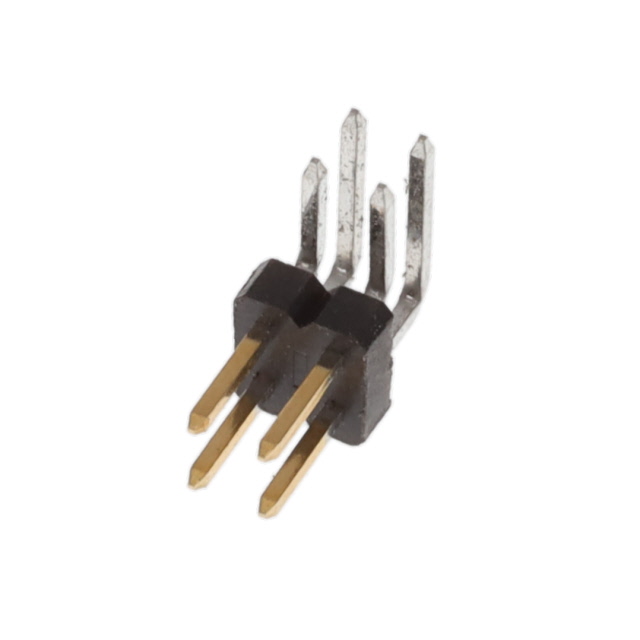

TE Connectivity Raychem Cable Protection 2842164-2	2	Breakaway Header	Tin	2 çm	78.7 çin	30 Áin	0.76 Ám	All	Solder	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Male Pin	125 VAC		Push-Pull	Black	Gold	Unshrouded	0.079 in	2 mm	Through Hole Right Angle	2 A	125 °C	-40 °C	0.079 in	2 mm	1.5 mm	0.059 "	Square	Thermoplastic	UL94 V-0	4
TE Connectivity Raychem Cable Protection 1-2842164-0	2	Breakaway Header	Tin	2 çm	78.7 çin	30 Áin	0.76 Ám	All	Solder	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Male Pin	125 VAC		Push-Pull	Black	Gold	Unshrouded	0.079 in	2 mm	Through Hole Right Angle	2 A	125 °C	-40 °C	0.079 in	2 mm	1.5 mm	0.059 "	Square	Thermoplastic	UL94 V-0	20

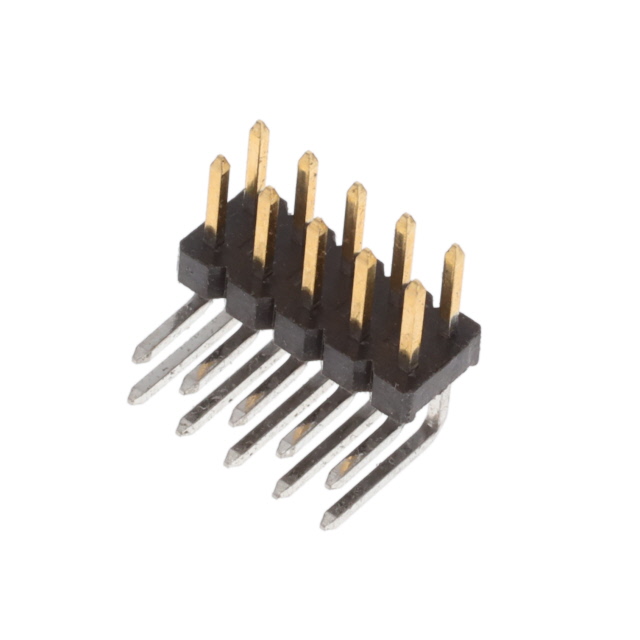

TE Connectivity Raychem Cable Protection 2842164-5	2	Breakaway Header	Tin	2 çm	78.7 çin	30 Áin	0.76 Ám	All	Solder	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Male Pin	125 VAC		Push-Pull	Black	Gold	Unshrouded	0.079 in	2 mm	Through Hole Right Angle	2 A	125 °C	-40 °C	0.079 in	2 mm	1.5 mm	0.059 "	Square	Thermoplastic	UL94 V-0	10
TE Connectivity Raychem Cable Protection 2842164-7	2	Breakaway Header	Tin	2 çm	78.7 çin	30 Áin	0.76 Ám	All	Solder	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Male Pin	125 VAC		Push-Pull	Black	Gold	Unshrouded	0.079 in	2 mm	Through Hole Right Angle	2 A	125 °C	-40 °C	0.079 in	2 mm	1.5 mm	0.059 "	Square	Thermoplastic	UL94 V-0	14
TE Connectivity Raychem Cable Protection 2842164-4	2	Breakaway Header	Tin	2 çm	78.7 çin	30 Áin	0.76 Ám	All	Solder	4 mm	0.157 in	Copper Alloy	0.11 in	2.79 mm	Male Pin	125 VAC		Push-Pull	Black	Gold	Unshrouded	0.079 in	2 mm	Through Hole Right Angle	2 A	125 °C	-40 °C	0.079 in	2 mm	1.5 mm	0.059 "	Square	Thermoplastic	UL94 V-0	8
