EL100D2 Series

Catalog

SSR RELAY SPST-NO 20A 3-100V

Part	Package / Case	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Output Type	Supplier Device Package	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	On-State Resistance (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Load Current	Termination Style
Sensata-Crydom EL100D20-12	Module	Chassis Mount	3 V	100 V	DC	Module	CE cURus TUV	14 V	10 V	13 mOhms	80 °C	-30 ░C	20 A	Quick Connect - 0.250" (6.3mm)
Sensata-Crydom EL100D20-05	Module	Chassis Mount	3 V	100 V	DC	Module	CE cURus TUV	8 VDC	4 V	13 mOhms	80 °C	-30 ░C	20 A	Quick Connect - 0.250" (6.3mm)

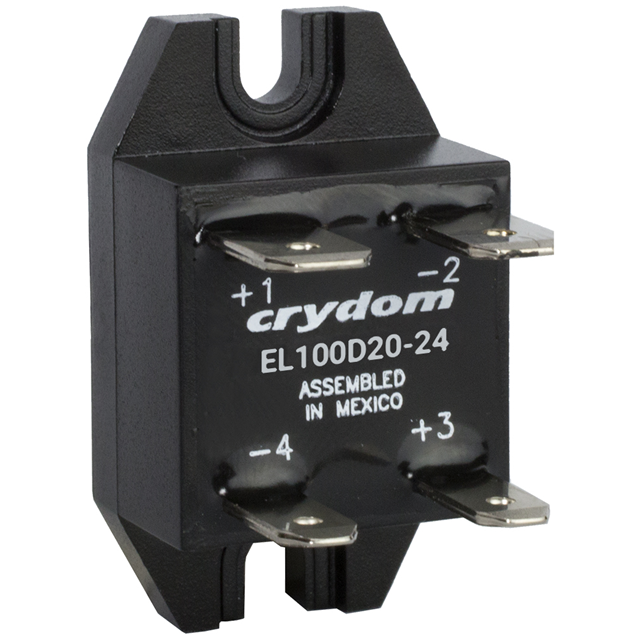

Sensata-Crydom EL100D20-24	Module	Chassis Mount	3 V	100 V	DC	Module	CE cURus TUV	27 V	21 V	13 mOhms	80 °C	-30 ░C	20 A	Quick Connect - 0.250" (6.3mm)
Sensata-Crydom EL100D20-12N	Module	Chassis Mount	3 V	100 V	DC	Module	CE cURus TUV	14 V	10 V	13 mOhms	80 °C	-30 ░C	20 A	Quick Connect - 0.250" (6.3mm)
Sensata-Crydom EL100D20-05N	Module	Chassis Mount	3 V	100 V	DC	Module	CE cURus TUV	8 VDC	4 V	13 mOhms	80 °C	-30 ░C	20 A	Quick Connect - 0.250" (6.3mm)
