EC7100 Series
Manufacturer: Altera
Beta
⌘K

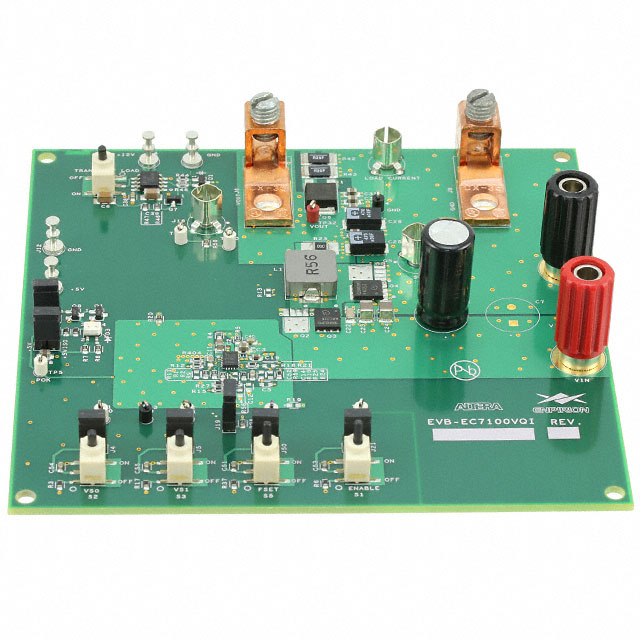

EVAL BOARD PWM DC-DC CTRLR
| Part | Main Purpose | Outputs and Type | Contents | Voltage - Output [Max] | Voltage - Output [Min] | Utilized IC / Part | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Board Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altera | DC/DC Step Down | 1 Non-Isolated Output | Board(s) | 5 V | 0.5 V | EC7100VQI | Buck | 25 V | 3.3 V | |||
Altera | DC/DC Step Down | Non-Isolated | 5 V | 0.5 V | EC7100VQI | Buck | 25 V | 3.3 V | Board(s) | Fully Populated | 1 |
