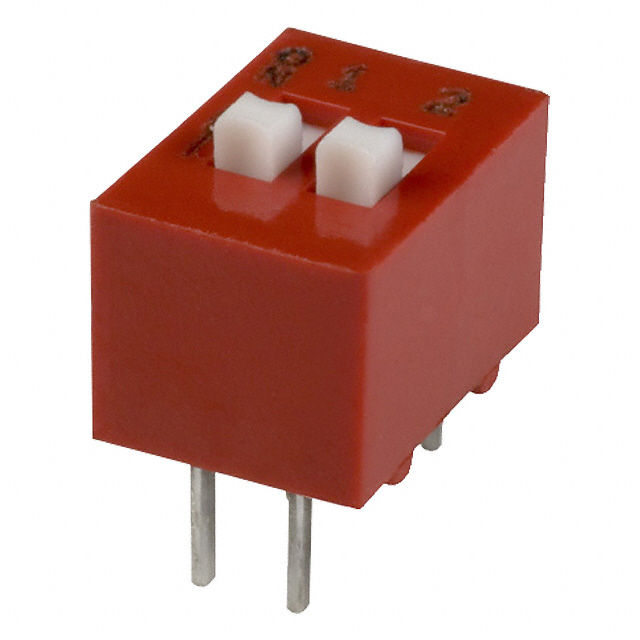

78B02 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP SPST 0.15A 30V
| Part | Mechanical Life | Length | Length | Electrical Life | Body Material | Pitch | Pitch | Actuator Level | Termination Style | Actuator Type | Contact Material | Circuit | Contact Finish | Washable | Features | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 2000 Cycles | 0.28 in | 7.11 mm | 2000 Steps | Thermoplastic | 2.54 mm | 0.1 " | Raised | PC Pin | Slide (Standard) | Copper Alloy | SPST | Gold | Tape Seal | 2 | 85 °C | -40 C | Through Hole | 30 VDC | 0.315 in | 8 mm |
