FAD1-06020 Series

Manufacturer: Qualtek

Catalog

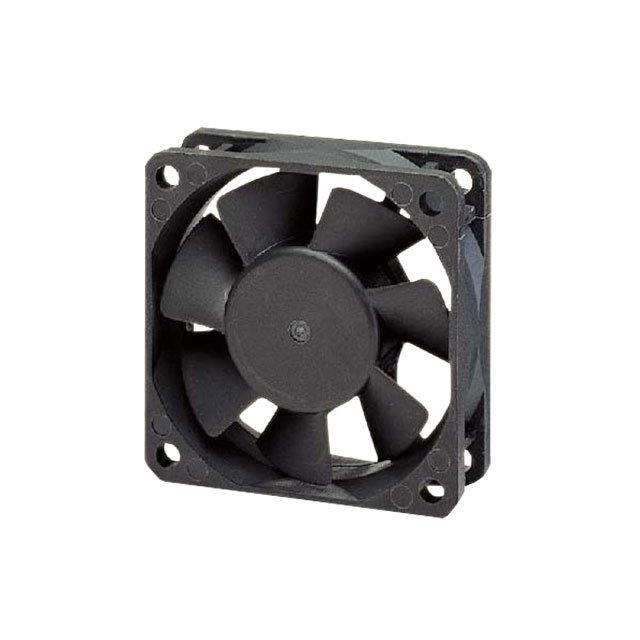

FAN AXIAL 60X20MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [z]	Size / Dimension [x]	Noise	Approval Agency	RPM	Termination	Fan Type	Width [y]	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Bearing Type	Weight	Weight	Air Flow	Air Flow	Power (Watts)
Qualtek FAD1-06020CHKW11	Plastic	0.2 A	Plastic	10.8 VDC	13.2 VDC	60 mm	60 mm	39 dB(A)	CE cURus TUV	6100 RPM	2 Wire Leads	Tubeaxial	20 mm	0.283 in H2O	70.5 Pa	70 °C	-10 °C	12 VDC	Hydrodynamic	0.108 lb	48.99 g	23.5 CFM	0.658 mł/min	2.4 W
Qualtek FAD1-06020CHJW11	Plastic		Plastic	10.8 VDC	13.2 VDC	60 mm	60 mm	35.5 dB	CE cURus TUV	5100 RPM	2 Wire Leads	Tubeaxial	20 mm	0.183 in H2O	45.6 Pa	70 °C	-10 °C	12 VDC	Hydrodynamic	0.108 lb	48.99 g	18.9 CFM	0.529 m³/min	1.56 W
Qualtek FAD1-06020BHLW11	Plastic	120 mA	Plastic	4.5 V	5.5 V	60 mm	60 mm	23.5 dB(A)	CE cURus TUV	3500 RPM	2 Wire Leads	Tubeaxial	20 mm			70 °C	-10 °C	5 V	Hydrodynamic	0.108 lb	48.99 g	12.5 CFM	0.35 m³/min	600 mW
