QJ6025RH5TP Series

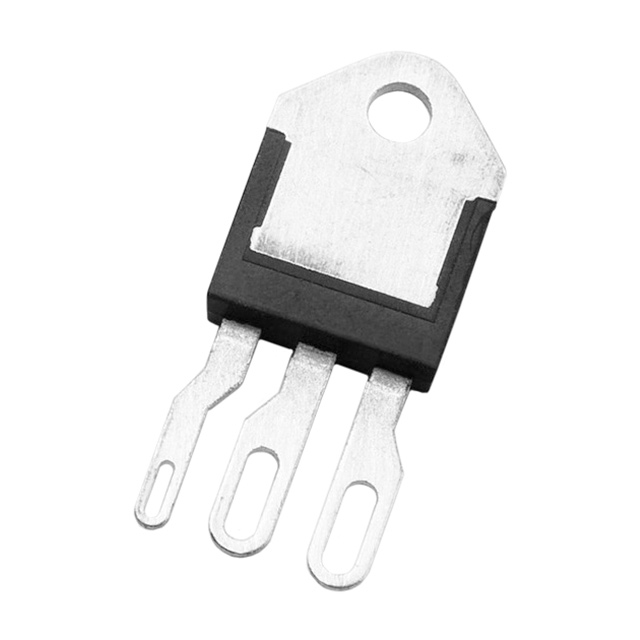

Alternistor High Tj 600V 25A TO218X Iso

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Alternistor High Tj 600V 25A TO218X Iso

Part	Triac Type	Configuration	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State	Package / Case	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max] [custom]
Littelfuse/Commercial Vehicle Products QJ6025RH5TP	Alternistor - Snubberless	Single	208 A 250 A	Through Hole	TO-220AB	1.3 V	50 mA	150 °C	-40 °C	25 A	600 V	TO-220-3	50 mA
Littelfuse/Commercial Vehicle Products QJ6025NH6RP	Alternistor - Snubberless	Single	208 A 250 A	Surface Mount	TO-263 (D2PAK)	1.3 V		150 °C	-40 °C	25 A	600 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	100 mA	80 mA
Littelfuse/Commercial Vehicle Products QJ6025LH5TP	Alternistor - Snubberless	Single	208 A 250 A	Through Hole	ITO-220AB	1.3 V	50 mA	150 °C	-40 °C	25 A	600 V	TO-220-3 Isolated Tab	50 mA
Littelfuse/Commercial Vehicle Products QJ6025KH6TP	Alternistor - Snubberless	Single	208 A 250 A	Through Hole	TO-218AC	1.3 V		150 °C	-40 °C	25 A	600 V	TO-218-3 Isolated Tab TO-218AC	100 mA	80 mA
Littelfuse/Commercial Vehicle Products QJ6025JH6TP	Alternistor - Snubberless	Single	208 A 250 A	Through Hole	TO-218X Isolated	1.3 V		150 °C	-40 °C	25 A	600 V	TO-218X-3 Isolated Tab	100 mA	80 mA

Catalog

Alternistor High Tj 600V 25A TO218X Iso

Key Features

• High TJ of 150°C

• Voltage capability up to 600 V

• Surge capability of 250 A

• Mechanically and thermally robust TO-220 and TO-218 clip-attach assembly

• Internally-isolated TO-220 and TO-218 packages

• Halogen free and RoHS compliant

Description

This 25A high temperature Alternistor TRIAC, offered in TO-220AB, TO-220 isolated and TO-263, as well as robust TO-218 Isolated and TO-218X isolated with loop lead. This TRIAC has 150C maximum junction temperature and 250A ITSM(60Hz). This series enables easier thermal management and higher surge handling capability in AC power control applications such as heater control, motor speed control, lighting controls, and static switching relays. Alternistor TRIAC operates in quadrants I, II, & III and offers high performance in applications requiring high commutation capability.
