G881B Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN HEADER VERT 12POS 3MM
| Part | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Fastening Type | Number of Positions Loaded | Termination | Current Rating (Amps) | Mounting Type | Connector Type | Contact Length - Post | Contact Length - Post | Voltage Rating | Shrouding | Features | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Insulation Material | Number of Positions | Contact Material | Number of Rows | Contact Finish - Post | Contact Shape | Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

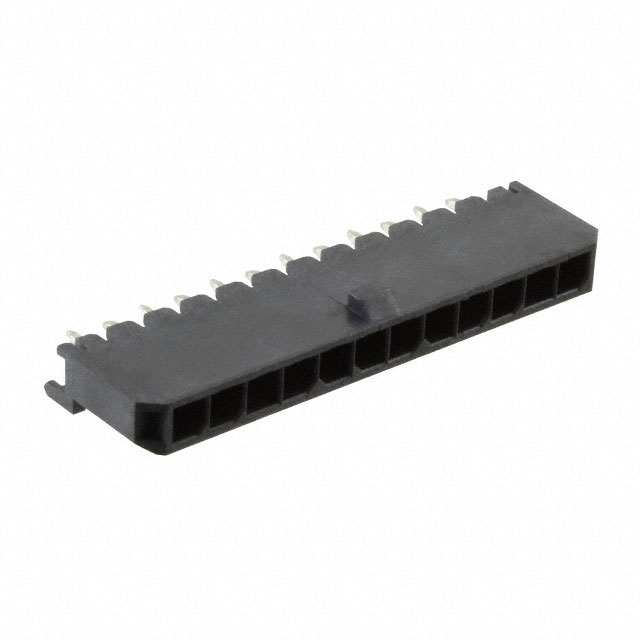

 Amphenol ICC (Commercial Products) | 3 mm | 0.118 in | UL94 V-0 | 0.39 in | 9.91 mm | Locking Ramp | All | Kinked Pin Solder | Varies by Wire Gauge | Through Hole | Header | 0.125 in | 3.18 mm | 250 V | Shrouded - 4 Wall | Board Guide | Black | 100 çin | 2.54 çm | Male Pin | Liquid Crystal Polymer (LCP) | 12 | Copper Alloy | 1 | Tin | Square | Board to Cable/Wire | -40 C | 105 ░C |

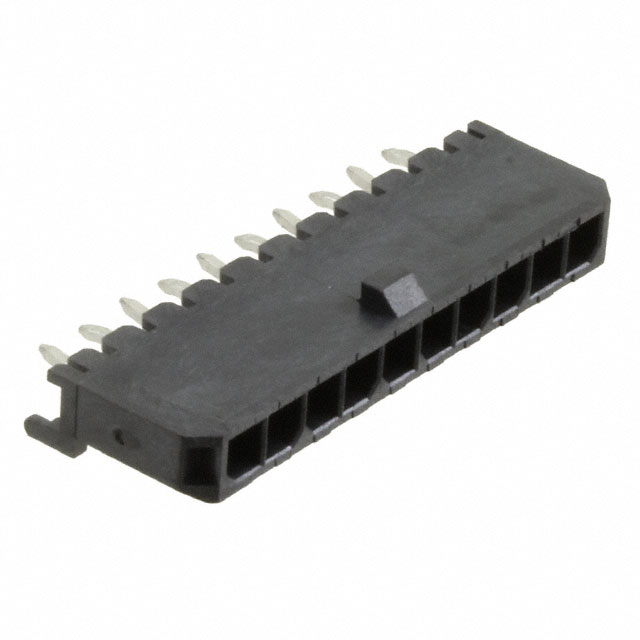

 Amphenol ICC (Commercial Products) | 3 mm | 0.118 in | UL94 V-0 | 0.39 in | 9.91 mm | Locking Ramp | All | Kinked Pin Solder | Varies by Wire Gauge | Through Hole | Header | 0.125 in | 3.18 mm | 250 V | Shrouded - 4 Wall | Board Guide | Black | 100 çin | 2.54 çm | Male Pin | Liquid Crystal Polymer (LCP) | 10 | Copper Alloy | 1 | Tin | Square | Board to Cable/Wire | -40 C | 105 ░C |

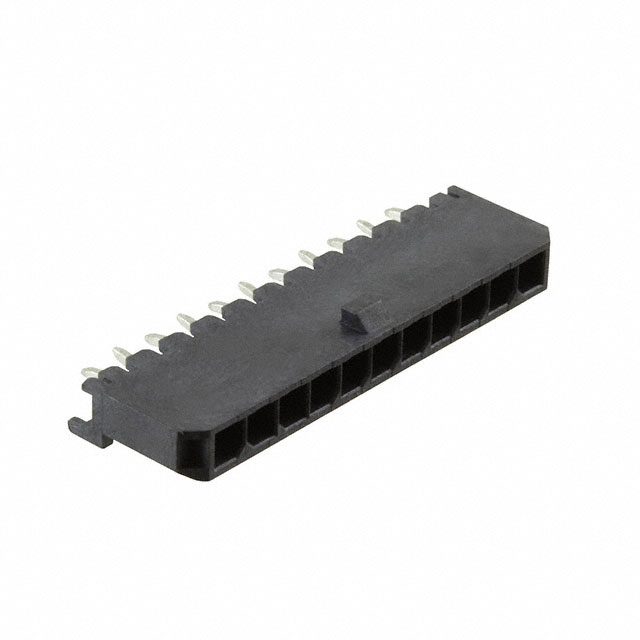

 Amphenol ICC (Commercial Products) | 3 mm | 0.118 in | UL94 V-0 | 0.39 in | 9.91 mm | Locking Ramp | All | Kinked Pin Solder | Varies by Wire Gauge | Through Hole | Header | 0.125 in | 3.18 mm | 250 V | Shrouded - 4 Wall | Board Guide | Black | 100 çin | 2.54 çm | Male Pin | Liquid Crystal Polymer (LCP) | 11 | Copper Alloy | 1 | Tin | Square | Board to Cable/Wire | -40 C | 105 ░C |

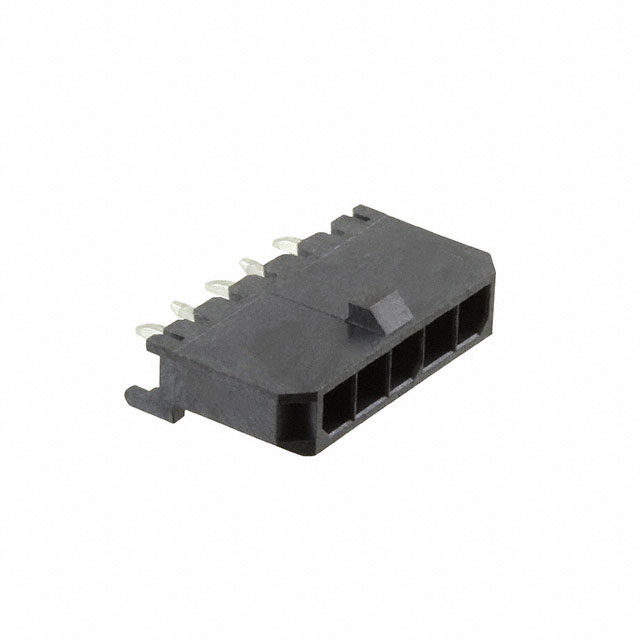

 Amphenol ICC (Commercial Products) | 3 mm | 0.118 in | UL94 V-0 | 0.39 in | 9.91 mm | Locking Ramp | All | Kinked Pin Solder | Varies by Wire Gauge | Through Hole | Header | 0.125 in | 3.18 mm | 250 V | Shrouded - 4 Wall | Board Guide | Black | 100 çin | 2.54 çm | Male Pin | Liquid Crystal Polymer (LCP) | 5 | Copper Alloy | 1 | Tin | Square | Board to Cable/Wire | -40 C | 105 ░C |

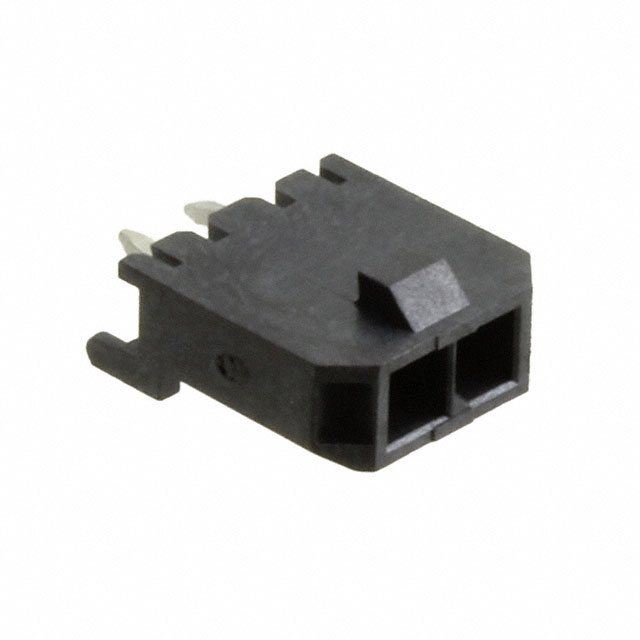

 Amphenol ICC (Commercial Products) | 3 mm | 0.118 in | UL94 V-0 | 0.39 in | 9.91 mm | Locking Ramp | All | Kinked Pin Solder | Varies by Wire Gauge | Through Hole | Header | 0.125 in | 3.18 mm | 250 V | Shrouded - 4 Wall | Board Guide | Black | 100 çin | 2.54 çm | Male Pin | Liquid Crystal Polymer (LCP) | 2 | Copper Alloy | 1 | Tin | Square | Board to Cable/Wire | -40 C | 105 ░C |

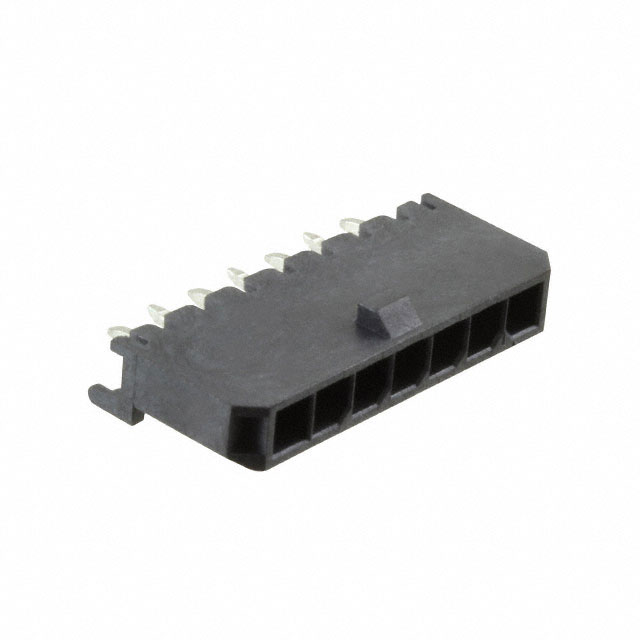

 Amphenol ICC (Commercial Products) | 3 mm | 0.118 in | UL94 V-0 | 0.39 in | 9.91 mm | Locking Ramp | All | Kinked Pin Solder | Varies by Wire Gauge | Through Hole | Header | 0.125 in | 3.18 mm | 250 V | Shrouded - 4 Wall | Board Guide | Black | 100 çin | 2.54 çm | Male Pin | Liquid Crystal Polymer (LCP) | 7 | Copper Alloy | 1 | Tin | Square | Board to Cable/Wire | -40 C | 105 ░C |
 Amphenol ICC (Commercial Products) | 3 mm | 0.118 in | UL94 V-0 | 0.39 in | 9.91 mm | Locking Ramp | All | Kinked Pin Solder | Varies by Wire Gauge | Through Hole | Header | 0.125 in | 3.18 mm | 250 V | Shrouded - 4 Wall | Board Guide | Black | 100 çin | 2.54 çm | Male Pin | Liquid Crystal Polymer (LCP) | 4 | Copper Alloy | 1 | Tin | Square | Board to Cable/Wire | -40 C | 105 ░C |
