627W9W Series
Manufacturer: EDAC Inc.
Beta
⌘K

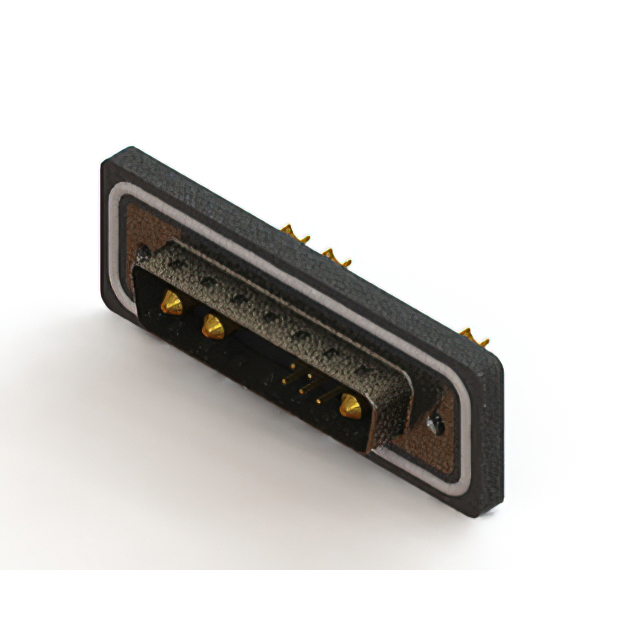

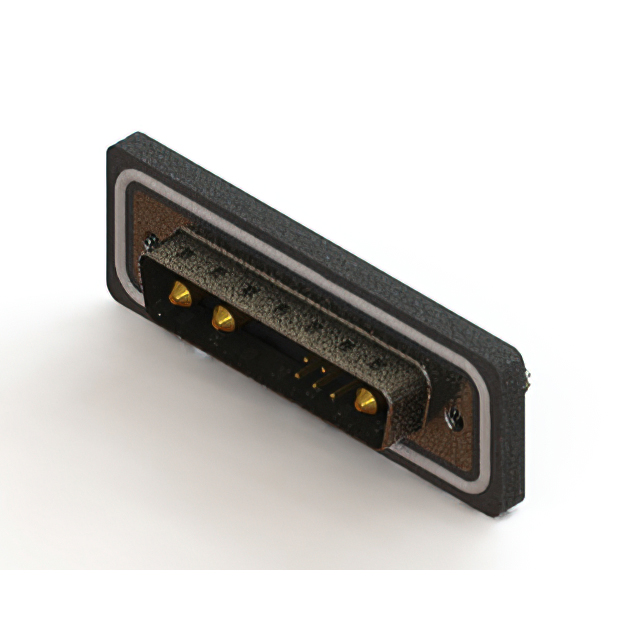

CONN D-SUB PLUG 9P PNL MNT SLDR
| Part | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Dielectric Material | Contact Type | Ingress Protection | Number of Positions [custom] | Number of Positions [custom] | Connector Style | Number of Rows [custom] | Current Rating (Amps) | Material Flammability Rating | Features | Mounting Type | Connector Type | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [x] | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Contact Finish | Flange Feature | Contact Finish Thickness | Current Rating (Amps) | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | 5 A 30 A | UL94 V-0 | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | Solder | DB B - 9W4 | 3 | 30 Áin | 0.76 Ám | Nickel Plated Steel | Gold | Board Side (M3) | |||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | 5 A 30 A | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | Solder | DB B - 9W4 | 3 | 15 µin | 0.38 µm | Nickel Plated Steel | Gold | Housing/Shell (M3) | |||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | DB B - 9W4 | 3 | Nickel Plated Steel | Gold | Housing/Shell | Flash | 10A 5A | 4-40 | ||||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | 5 A 40 A | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | DB B - 9W4 | 3 | 15 µin | 0.38 µm | Nickel Plated Steel | Gold | Housing/Shell (M3) | ||||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | Solder | DB B - 9W4 | 3 | 30 Áin | 0.76 Ám | Nickel Plated Steel | Gold | Housing/Shell (M3) | 10A 5A | |||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | 5 A 30 A | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | Solder | DB B - 9W4 | 3 | 5 µin | 0.127 µm | Nickel Plated Steel | Gold | Housing/Shell | 4-40 | ||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | 5 A 40 A | UL94 V-0 | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | Solder | DB B - 9W4 | 3 | 15 µin | 0.38 µm | Nickel Plated Steel | Gold | Board Side (M3) | |||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | Solder | DB B - 9W4 | 3 | 15 µin | 0.38 µm | Nickel Plated Steel | Gold | Housing/Shell (M3) | 10A 5A | |||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | DB B - 9W4 | 3 | 15 µin | 0.38 µm | Nickel Plated Steel | Gold | Housing/Shell (M3) | 20A 5A | ||||
 EDAC Inc. | 125 VDC | 85 °C | -25 °C | Copper Alloy | Black | Polybutylene Terephthalate (PBT) Glass Filled | Signal and Power | IP67 - Dust Tight Waterproof | 4 | 5 | Combo D-Sub | 2 | 5 A 30 A | UL94 V-0 | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Plug Male Pins | Solder | DB B - 9W4 | 3 | 15 µin | 0.38 µm | Nickel Plated Steel | Gold | Board Side (4-40) |
