3102-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Contact Finish | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Board Thickness [custom] | Board Thickness [custom] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Terminal Style | Terminal Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

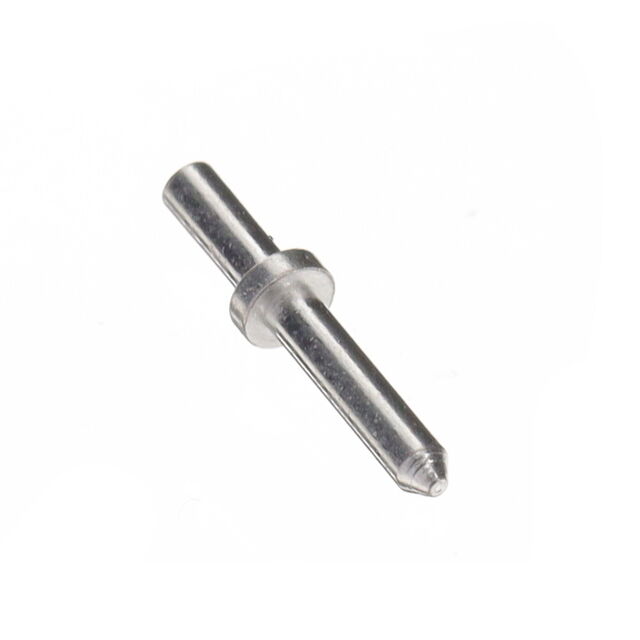

 Mill-Max Manufacturing Corp. | Tin | 4.78 mm | 0.188 in | Through Hole | 2.87 mm | 0.113 " | Brass Alloy | 200 Áin | 5.08 Ám | Swage | 0.094 in | 2.39 mm | 0.043 in | 1.09 mm | 0.04 in | 1.02 mm | Single End | PC Pin | 1.78 mm | 0.07 in | Non-Insulated | 0.301 in | 7.65 mm |

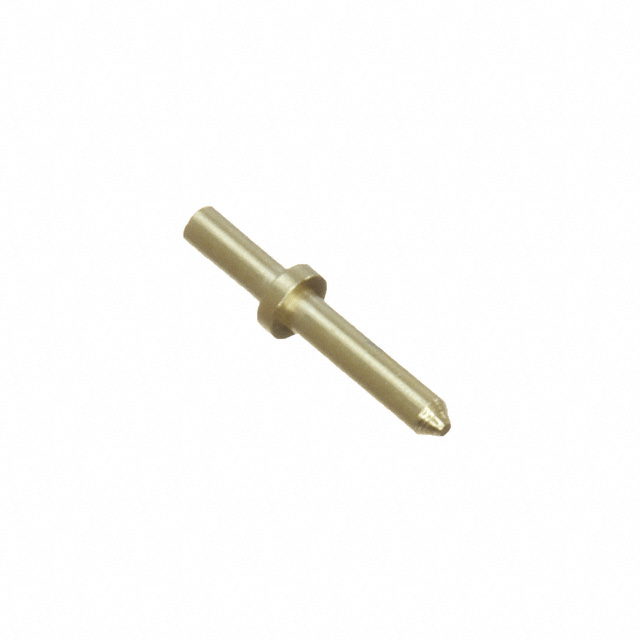

 Mill-Max Manufacturing Corp. | Gold | 4.78 mm | 0.188 in | Through Hole | 2.87 mm | 0.113 " | Brass Alloy | 20 µin | 0.51 µm | Swage | 0.094 in | 2.39 mm | 0.043 in | 1.09 mm | 0.04 in | 1.02 mm | Single End | PC Pin | 1.77 mm | 0.07 in | Non-Insulated | 0.321 in | 8.15 mm |
 Mill-Max Manufacturing Corp. | Gold | 4.78 mm | 0.188 in | Through Hole | 2.87 mm | 0.113 " | Brass Alloy | 10 Áin | 0.25 Ám | Swage | 0.094 in | 2.39 mm | 0.043 in | 1.09 mm | 0.04 in | 1.02 mm | Single End | PC Pin | 1.77 mm | 0.07 in | Non-Insulated | 0.321 in | 8.15 mm |
 Mill-Max Manufacturing Corp. | Gold | 4.78 mm | 0.188 in | Through Hole | 2.87 mm | 0.113 " | Brass Alloy | 50 µin | 1.27 µm | Swage | 0.094 in | 2.39 mm | 0.043 in | 1.09 mm | 0.04 in | 1.02 mm | Single End | PC Pin | 1.77 mm | 0.07 in | Non-Insulated | 0.321 in | 8.15 mm |
