PTC22 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 22POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Number of Positions	Mounting Type	Style	Shrouding	Fastening Type	Number of Positions Loaded	Contact Material	Overall Contact Length	Overall Contact Length	Connector Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Material	Insulation Color	Contact Shape	Termination	Number of Rows	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Contact Length - Post [custom]	Contact Length - Post [custom]
Sullins Connector Solutions PTC22SFBN	100 çin	2.54 çm	Male Pin	22	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	0.638 in	16.21 mm	Header	3 A	0.1 "	2.54 mm	Tin	5.58 mm	0.22 in	8.08 mm	0.318 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder	1	UL94 V-0
Sullins Connector Solutions PTC22DAHN	100 çin	2.54 çm	Male Pin	44	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	1.15 in	29.21 mm	Header	3 A	0.1 "	2.54 mm	Tin	20.83 mm	0.82 in	5.84 mm	0.23 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder		UL94 V-0	0.1 in	2.54 mm	2
Sullins Connector Solutions PTC22SAHN	100 çin	2.54 çm	Male Pin	22	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	1.15 in	29.21 mm	Header	3 A	0.1 "	2.54 mm	Tin	20.83 mm	0.82 in	5.84 mm	0.23 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder	1	UL94 V-0
Sullins Connector Solutions PTC22SFEN	100 çin	2.54 çm	Male Pin	22	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	0.938 in	23.83 mm	Header	3 A	0.1 "	2.54 mm	Tin	13.21 mm	0.52 in	8.08 mm	0.318 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder	1	UL94 V-0
Sullins Connector Solutions PTC22SABN	100 çin	2.54 çm	Male Pin	22	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	0.56 in	14.22 mm	Header	3 A	0.1 "	2.54 mm	Tin	5.84 mm	0.23 "	5.84 mm	0.23 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder	1	UL94 V-0
Sullins Connector Solutions PTC22SAEN	100 çin	2.54 çm	Male Pin	22	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	0.85 in	21.59 mm	Header	3 A	0.1 "	2.54 mm	Tin	13.21 mm	0.52 in	5.84 mm	0.23 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder	1	UL94 V-0
Sullins Connector Solutions PTC22SAFN	100 çin	2.54 çm	Male Pin	22	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	0.95 in	24.13 mm	Header	3 A	0.1 "	2.54 mm	Tin			5.84 mm	0.23 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder	1	UL94 V-0				15.75 mm	0.62 "
Sullins Connector Solutions PTC22DAEN	100 çin	2.54 çm	Male Pin	44	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	0.85 in	21.59 mm	Header	3 A	0.1 "	2.54 mm	Tin	13.21 mm	0.52 in	5.84 mm	0.23 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder		UL94 V-0	0.1 in	2.54 mm	2
Sullins Connector Solutions PTC22DABN	100 çin	2.54 çm	Male Pin	44	Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy	0.56 in	14.22 mm	Header	3 A	0.1 "	2.54 mm	Tin	5.84 mm	0.23 "	5.84 mm	0.23 in	2.54 µm	100 µin	0.1 in	2.54 mm	Polyester Thermoplastic	Black	Square	Solder		UL94 V-0	0.1 in	2.54 mm	2

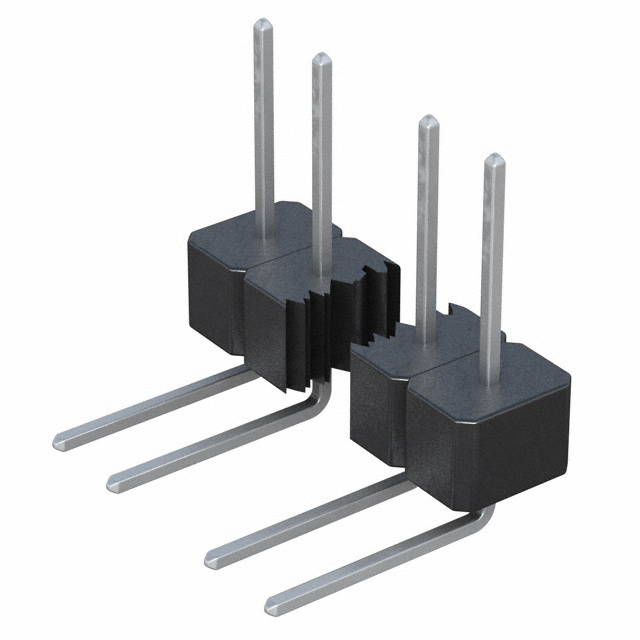

Sullins Connector Solutions PTC22SBBN	100 çin	2.54 çm	Male Pin	22	Right Angle Through Hole	Board to Board Cable	Unshrouded	Push-Pull	All	Copper Alloy			Header	3 A	0.1 "	2.54 mm	Tin	5.84 mm	0.23 "	5.84 mm	0.23 in	2.54 µm	100 µin	0.14 in	3.56 mm	Polyester Thermoplastic	Black	Square	Solder	1	UL94 V-0
