9851 Series

Catalog

ALPHA ESSENTIALS COAXIAL CABLE 3

Part	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	VoP, Velocity of Propagation	Conductor Material	Shield Coverage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Wire Gauge	Cable Type	Length	Length	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Features	Impedance

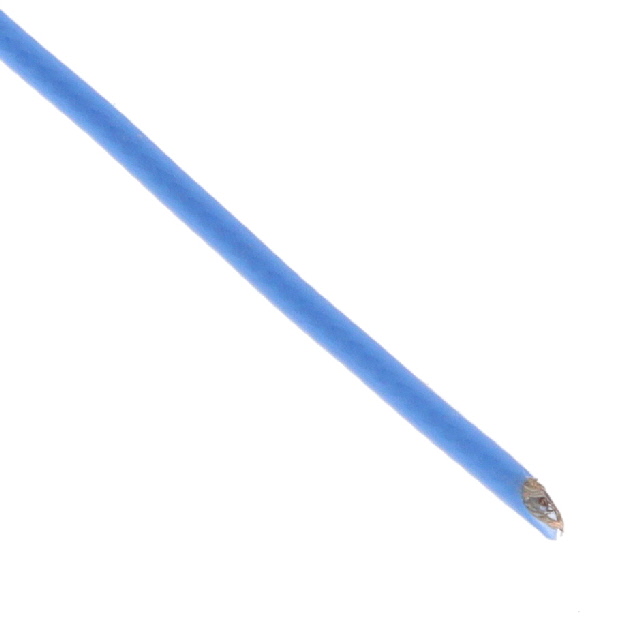

ALPHA WIRE 9851 BL005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Blue	38 AWG	7 Strands	Non-Magnetic	50 Ohms

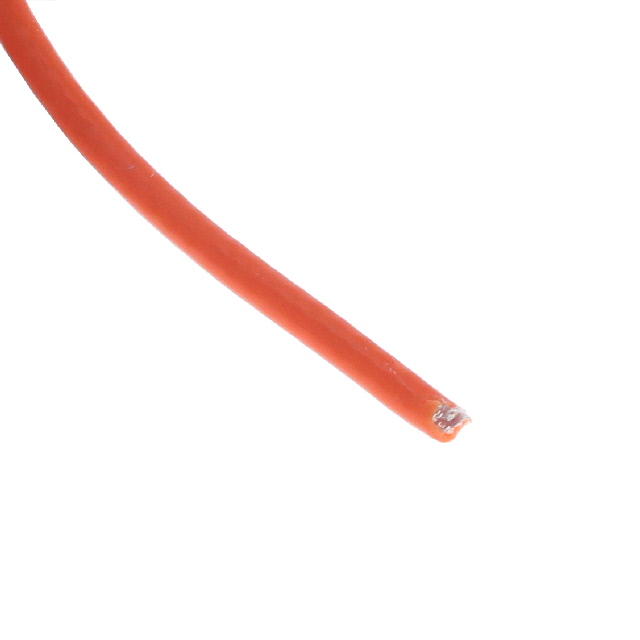

ALPHA WIRE 9851 OR005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Orange	38 AWG	7 Strands	Non-Magnetic	50 Ohms
ALPHA WIRE 9851 GR005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Green	38 AWG	7 Strands	Non-Magnetic	50 Ohms

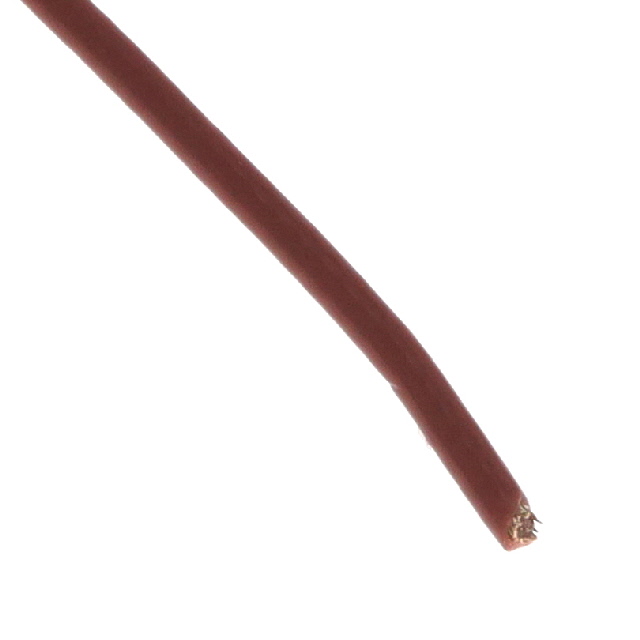

ALPHA WIRE 9851 BR005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Brown	38 AWG	7 Strands	Non-Magnetic	50 Ohms

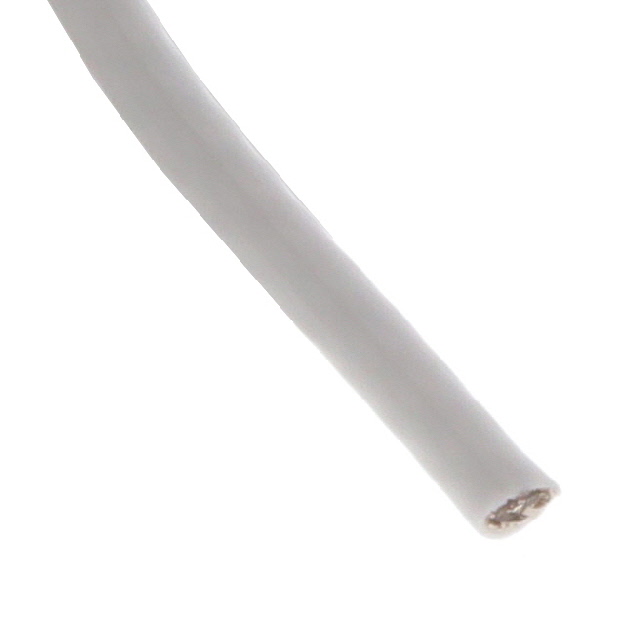

ALPHA WIRE 9851 WH005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	White	38 AWG	7 Strands	Non-Magnetic	50 Ohms

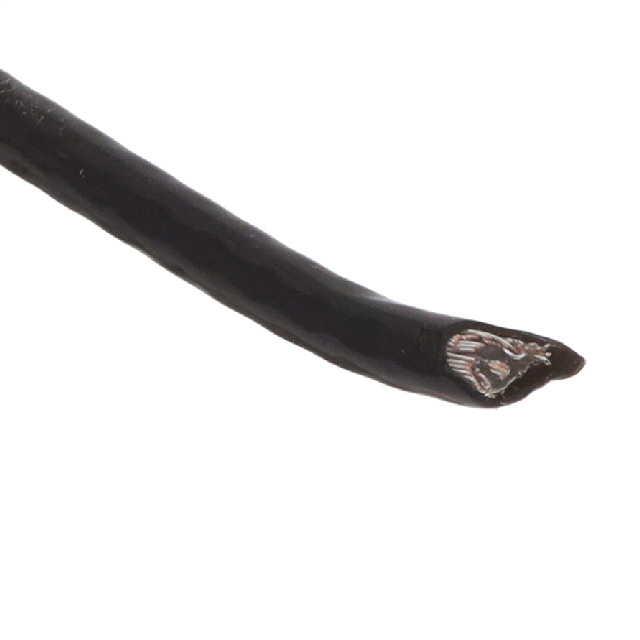

ALPHA WIRE 9851 BK005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Black	38 AWG	7 Strands	Non-Magnetic	50 Ohms

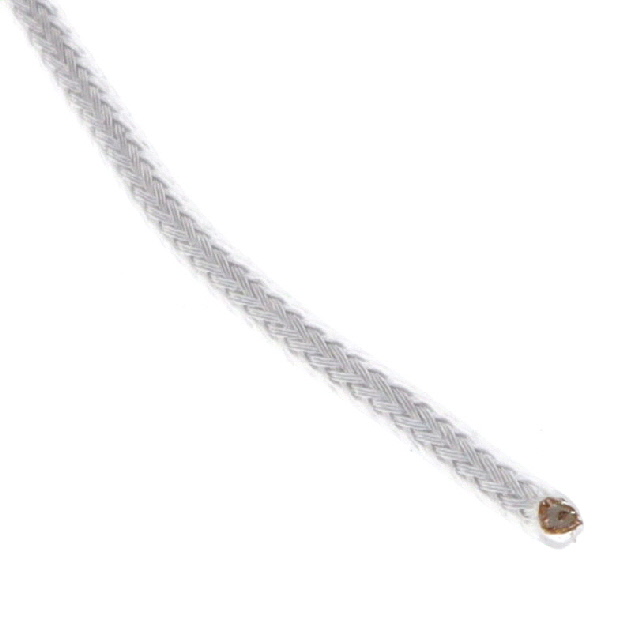

ALPHA WIRE 9851 CL005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Clear	38 AWG	7 Strands	Non-Magnetic	50 Ohms
ALPHA WIRE 9851 SL005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Slate	38 AWG	7 Strands	Non-Magnetic	50 Ohms

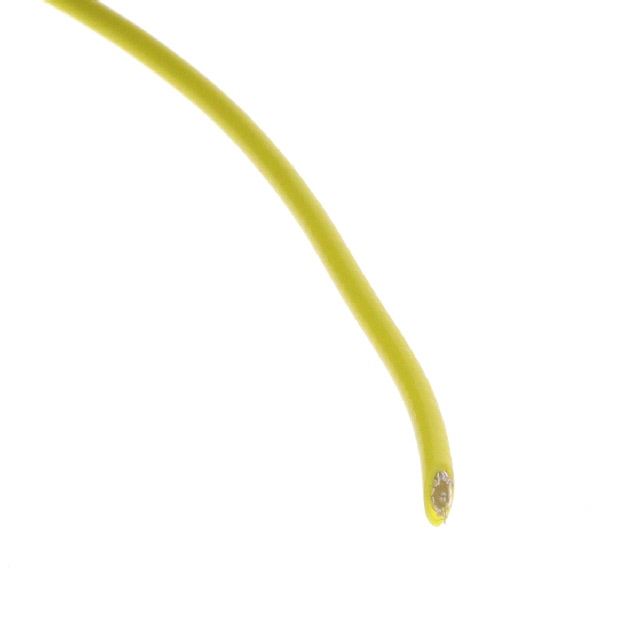

ALPHA WIRE 9851 YL005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Yellow	38 AWG	7 Strands	Non-Magnetic	50 Ohms
ALPHA WIRE 9851 VI005	Copper Silver Coated	-70 °C	200 °C	70	Copper Silver Coated	95 %	Fluorinated Ethylene-Propylene (FEP)	1.78 mm	0.07 "	Braid	30 AWG	Coaxial	100 '	30.48 m	Violet	38 AWG	7 Strands	Non-Magnetic	50 Ohms
