6GK58966 Series

Manufacturer: Siemens

Catalog

MOBILE RADIO ANTENNA ANT896-6MH

Part	RF Family/Standard	Frequency (Center/Band)	Height (Max) [diameter]	Height (Max) [diameter]	Frequency Group	Antenna Type	Termination	Ingress Protection	VSWR	Gain	Applications	Number of Bands	Frequency Range [Min]	Frequency Range [Max]	Gain	Height (Max) [Max] [z]	Height (Max)

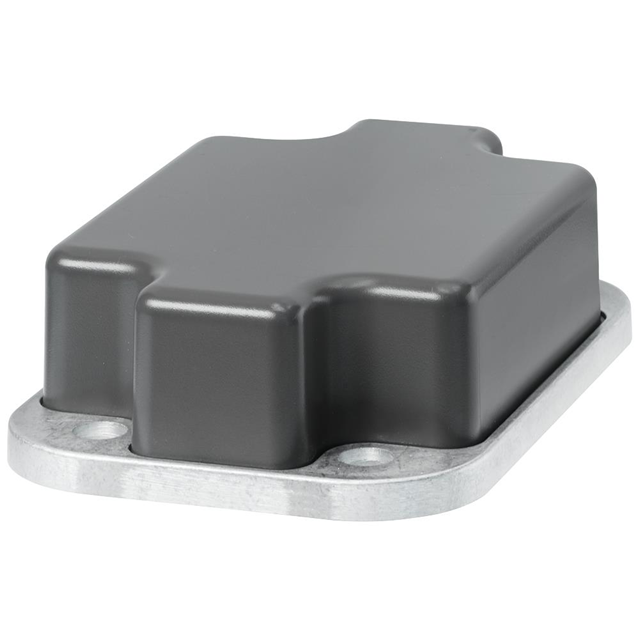

Siemens 6GK58966MH000AA0	Cellular	1.575 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	1.575 in	40 mm	Wide Band	Module	N Type Female	IP69K	2.2	5 dBi	GSM LTE UMTS	10

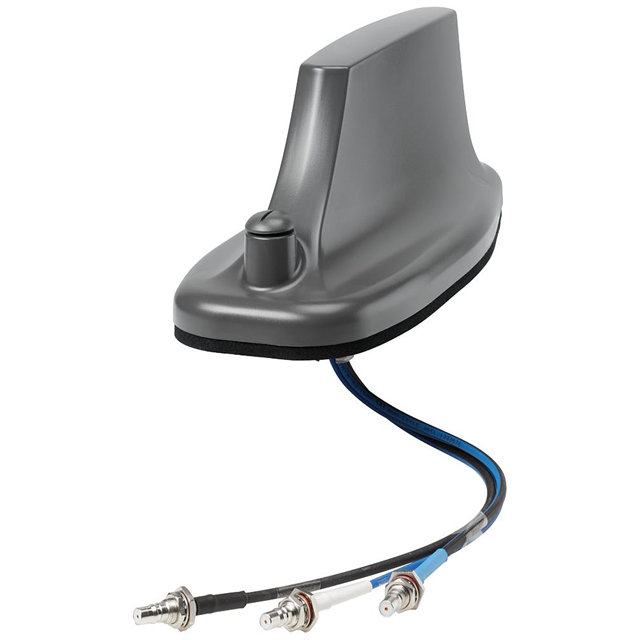

Siemens 6GK58966MM000AA0	Cellular	1.575 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.2 GHz 2.545 GHz 2.6 GHz 800 MHz 850 MHz 900 MHz 3650 MHz			Wide Band	Module	QMA	IP68 IP69K	1.8		GSM LTE UMTS	12	2.4 GHz 4.9 GHz	2.69 GHz 5.935 GHz	5dBi 6dBi 7dBi	3.228 in	82 mm
