SW-T3 Series
Manufacturer: Adam Tech
Beta
⌘K

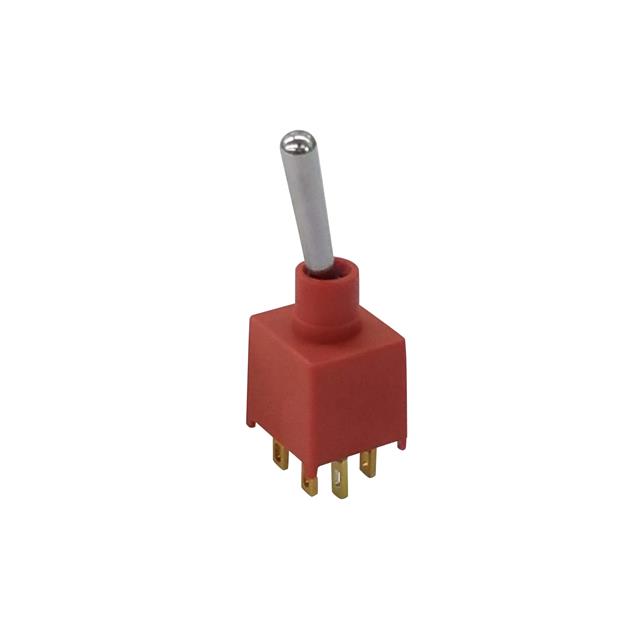

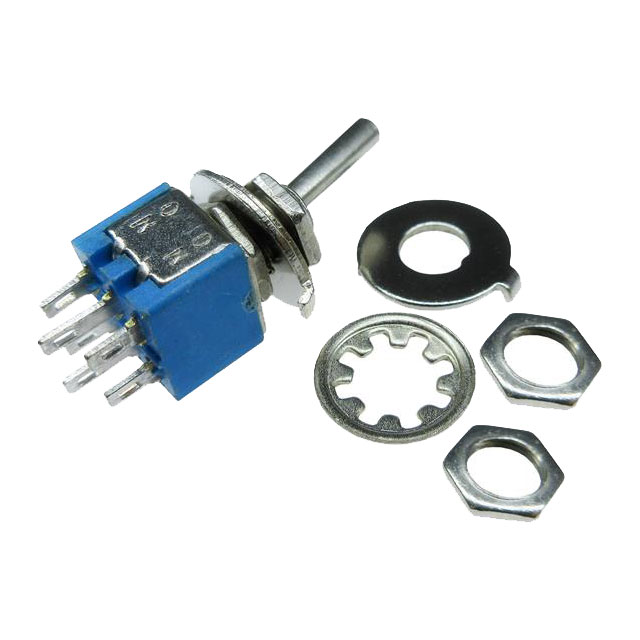

SWITCH TOGGLE DPDT 3A 125V
| Part | Electrical Life | Actuator Material | Bushing Thread | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Illumination | Mounting Type | Panel Cutout Dimensions [diameter] | Actuator Type | Switch Function | Termination Style | Voltage Rating - AC | Actuator Length [x] | Circuit | Ingress Protection | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 10000 Cycles | Brass Nickel Plated | M5 x 0.5 | 85 °C | -25 °C | 3 A | Non-Illuminated | Panel Mount | 5 mm | Standard Round | On-On | Solder Lug | 125 V | 9.4 mm | DPDT | ||
 Adam Tech | 30000 Cycles | Unthreaded | 85 °C | -30 ░C | 3 A | Non-Illuminated | Panel Mount | Standard Round | On-On | Solder Lug | 125 V | 10.7 mm | DPDT | IP67 - Dust Tight Waterproof | 28 V |
