331351 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

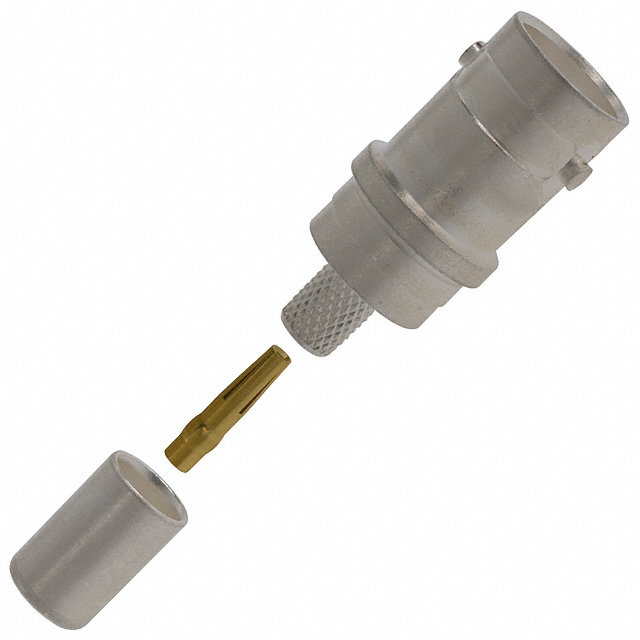

CONN BNC JACK STR 50 OHM CRIMP
| Part | Fastening Type | Housing Color | Cable Group | Body Finish | Connector Style | Number of Ports | Mounting Type | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Includes | Insertion Loss | Frequency - Max [Max] | Contact Termination | Dielectric Material | Connector Type | Shield Termination | Center Contact Material | Voltage Rating | Impedance | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Bayonet Lock | Silver | 58A 58B 58C RG-58 | Silver | BNC | 1 | Free Hanging (In-Line) | Brass | 85 °C | -55 °C | 500 | 1 Connector 1 Contact 1 Ferrule | 0.2 dB | 4 GHz | Crimp | Polytetrafluoroethylene (PTFE) | Female Socket Jack | Crimp | Beryllium Copper | 500 V | 50 Ohms | Gold |
