892-058 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 58POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Termination	Pitch	Pitch	Read Out	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Contact Finish	Number of Rows [custom]	Color	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions	Gender	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Features	Number of Rows	Termination Rows

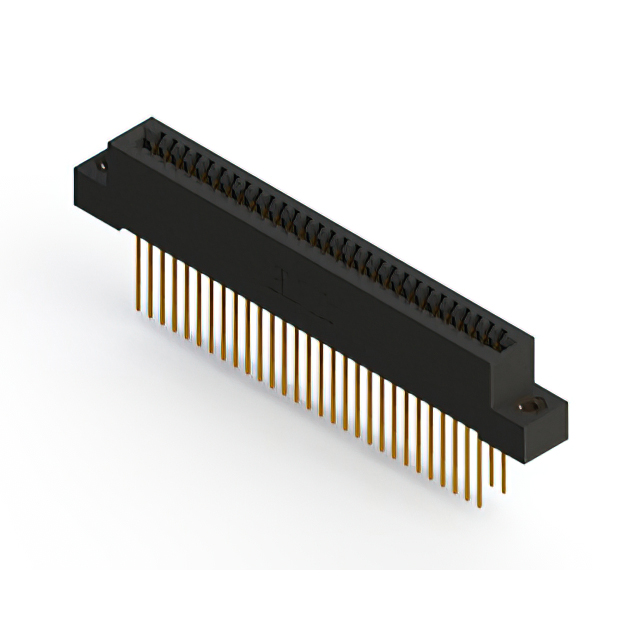

EDAC Inc. 892-058-540-207	Polyphenylene Sulfide (PPS)	2	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	0.1 "	2.54 mm	Dual	Copper Alloy	125 °C	-40 C	Non Specified - Dual Edge	Gold	2	Black	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Cantilever	58	Female	Through Hole

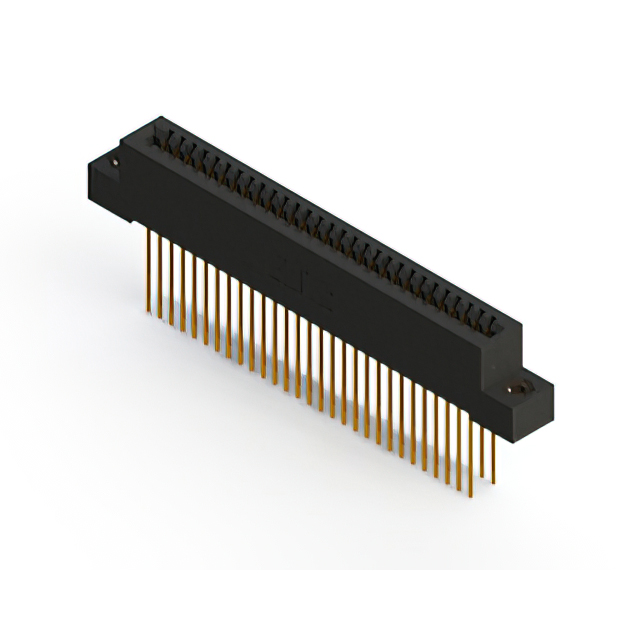

EDAC Inc. 892-058-541-208	Polyphenylene Sulfide (PPS)	2	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	0.1 "	2.54 mm	Dual	Copper Alloy	125 °C	-40 C	Non Specified - Dual Edge	Gold	2	Black	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Cantilever	58	Female	Through Hole

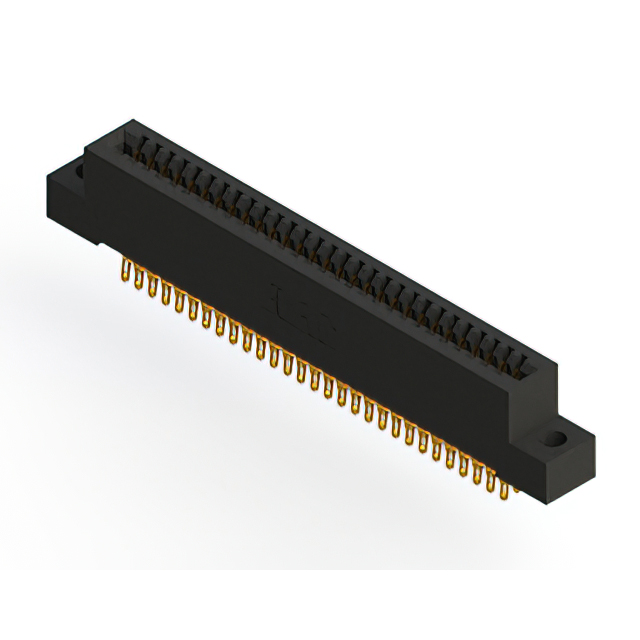

EDAC Inc. 892-058-555-204	Polyphenylene Sulfide (PPS)	2	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.1 "	2.54 mm	Dual	Copper Alloy	125 °C	-40 C	Non Specified - Dual Edge	Gold	2	Black	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Cantilever	58	Female	Board Edge Straddle Mount	0.156 "	3.96 mm	Card Extender

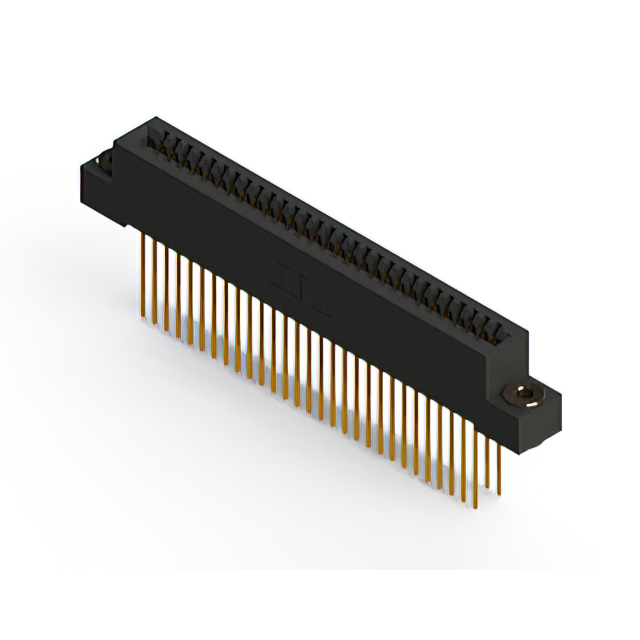

EDAC Inc. 892-058-542-203	Polyphenylene Sulfide (PPS)	2	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	0.1 "	2.54 mm	Dual	Copper Alloy	125 °C	-40 C	Non Specified - Dual Edge	Gold	2	Black	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	Cantilever	58	Female	Through Hole	0.116 "	2.95 mm
EDAC Inc. 892-058-541-112	Polyphenylene Sulfide (PPS)		58	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	0.1 "	2.54 mm	Single	Copper Alloy	125 °C	-40 C	Non Specified - Single Edge	Gold		Black	Flush Mount Side Opening Unthreaded	0.25 Ám	10 Áin	Cantilever	58	Female	Through Hole	0.128 "	3.25 mm		1	1
EDAC Inc. 892-058-559-107	Polyphenylene Sulfide (PPS)		58	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.1 "	2.54 mm	Single	Copper Alloy	125 °C	-40 C	Non Specified - Single Edge	Gold		Black	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Cantilever	58	Female	Right Angle Through Hole				1	1
EDAC Inc. 892-058-544-103	Polyphenylene Sulfide (PPS)		58	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	0.1 "	2.54 mm	Single	Copper Alloy	125 °C	-40 C	Non Specified - Single Edge	Gold		Black	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	Cantilever	58	Female	Through Hole	0.116 "	2.95 mm		1	1
EDAC Inc. 892-058-521-201	Polyphenylene Sulfide (PPS)	2	29	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.1 "	2.54 mm	Dual	Copper Alloy	125 °C	-40 C	Non Specified - Dual Edge	Gold	2	Black		0.25 Ám	10 Áin	Cantilever	58	Female	Through Hole
EDAC Inc. 892-058-542-108	Polyphenylene Sulfide (PPS)		58	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap	0.1 "	2.54 mm	Single	Copper Alloy	125 °C	-40 C	Non Specified - Single Edge	Gold		Black	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Cantilever	58	Female	Through Hole				1	1
EDAC Inc. 892-058-523-101	Polyphenylene Sulfide (PPS)		58	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	0.1 "	2.54 mm	Single	Copper Alloy	125 °C	-40 C	Non Specified - Single Edge	Gold		Black		0.25 Ám	10 Áin	Cantilever	58	Female	Through Hole				1	1
