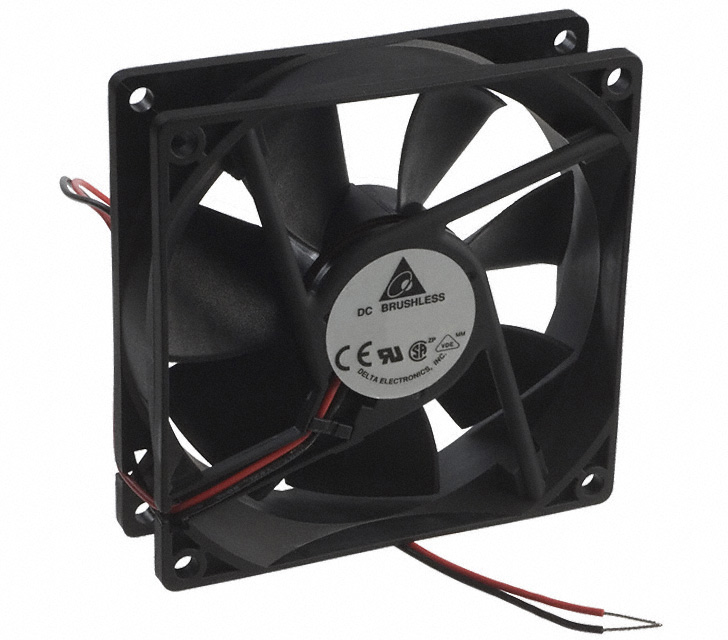

AFB0948 Series

Catalog

FAN AXIAL 92X25.4MM 48VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Noise	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Termination	Weight	Weight	Static Pressure	Static Pressure	Voltage - Rated	RPM	Air Flow	Air Flow	Fan Type	Current Rating (Amps)
Delta Electronics AFB0948HH	70000 Hrs	28 V	56 VDC	Plastic	Plastic	25.4 mm	92 mm	92 mm	Ball	38 dB(A)	CE CSA UL VDE	70 °C	-10 °C	3.84 W	2 Wire Leads	0.219 lb	99.34 g	55 Pa	0.221 in H2O	48 VDC	3200 RPM	57.9 CFM	1.62 mł/min	Tubeaxial

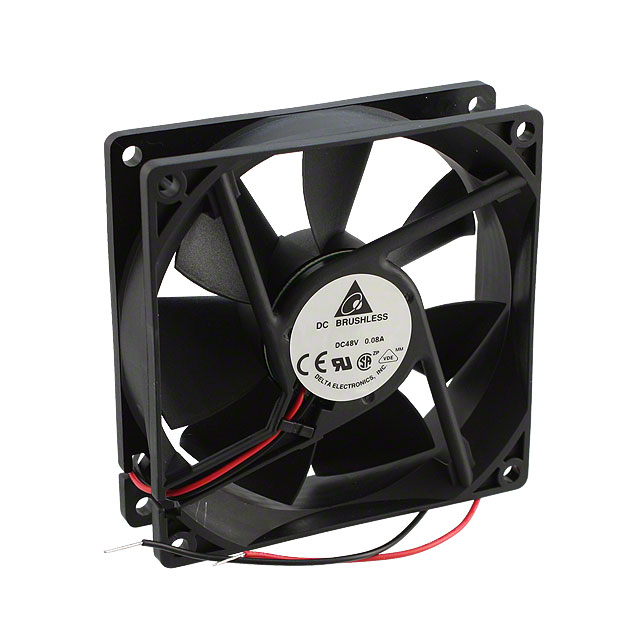

Delta Electronics AFB0948L	70000 Hrs	28 V	56 VDC	Plastic	Plastic	25.4 mm	92 mm	92 mm	Ball	25 dB(A)	CE CSA UL VDE	70 °C	-10 °C	2.4 W	2 Wire Leads	0.219 lb	99.34 g	24.9 Pa	0.1 in H2O	48 VDC	2100 RPM	37.1 CFM	1.04 mł/min	Tubeaxial	50 mA
Delta Electronics AFB0948L-B	70000 Hrs	28 V	56 VDC	Plastic	Plastic	25.4 mm	92 mm	92 mm	Ball	25 dB(A)	CE CSA UL VDE	70 °C	-10 °C	2.4 W	2 Wire Leads	0.219 lb	99.34 g	24.9 Pa	0.1 in H2O	48 VDC	2100 RPM	37.1 CFM	1.04 mł/min	Tubeaxial	50 mA
