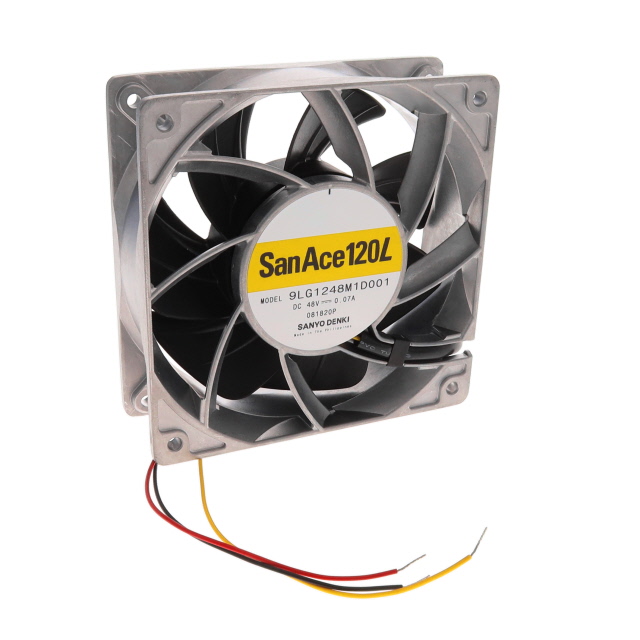

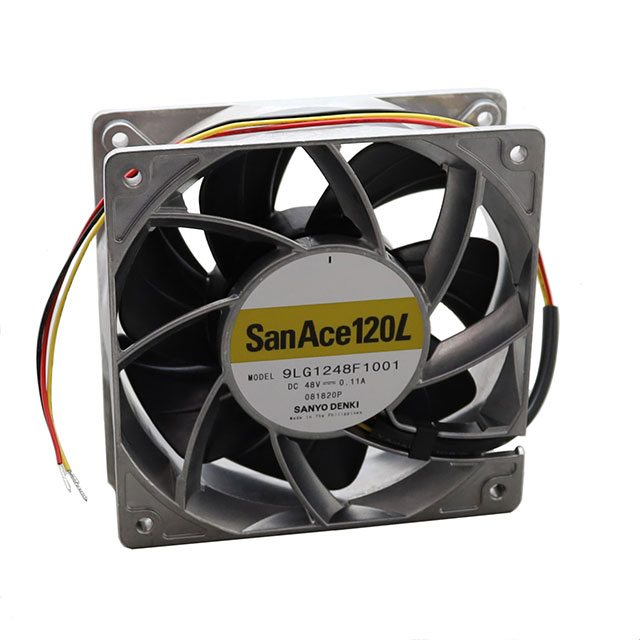

9LG1248 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
FAN: DC; AXIAL; 48VDC; 120X120X38MM; 132M3/H; 33DBA; BALL; 2100RPM
| Part | Material - Blade | Material - Frame | Features | Termination | Fan Type | Bearing Type | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Power (Watts) | Width [y] | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Approval Agency | Weight [custom] | Weight [custom] | Air Flow | Air Flow | Noise | Size / Dimension | Size / Dimension [y] | RPM | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | Aluminum | Locked Rotor Sensor | 3 Wire Leads | Tubeaxial | Ball | 120 mm | 120 mm | 48 VDC | 3.36 W | 38 mm | |||||||||||||||||
 Sanyo Denki America Inc. | Plastic | Aluminum | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4 Wire Leads | Tubeaxial | Ball | 119 mm | 48 VDC | 26.4 W | 38 mm | 0.55 A | 36 VDC | 60 V | 180000 Hrs | CSA TUV UL | 420.03 g | 0.926 lb | 211.8 CFM | 5.93 m³/min | 58 dB(A) | Square | 119 mm | 5600 RPM | 1.08 in H2O | 269 Pa | -20 ░C | 70 °C | |
 Sanyo Denki America Inc. | Plastic | Aluminum | Locked Rotor Protection Speed Sensor (Tach) | 3 Wire Leads | Tubeaxial | Ball | 120 mm | 120 mm | 48 VDC | 5.28 W | 38 mm | |||||||||||||||||
Sanyo Denki America Inc. | Plastic | Aluminum | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4 Wire Leads | Tubeaxial | Ball | 119 mm | 48 VDC | 38.4 W | 38 mm | 800 mA | 36 VDC | 60 V | 180000 Hrs | CSA TUV UL | 420.03 g | 0.926 lb | 247 CFM | 6.92 m³/min | 62 dB(A) | Square | 119 mm | 6550 RPM | 1.48 in H2O | 368.7 Pa | -20 ░C | 70 °C |
