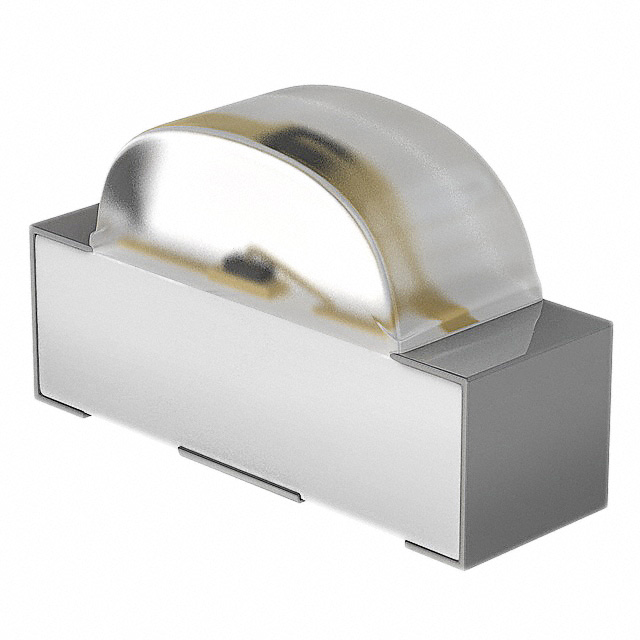

QTLP61 Series

Catalog

EMITTER IR 940NM 65MA SMD

Part	Current - DC Forward (If) (Max)	Radiant Intensity (Ie) Min @ If [Min]	Viewing Angle	Mounting Type	Type	Wavelength	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Lens Size [x]	Lens Size [y]	Lens Style	Wavelength - Peak	Height (Max) [Max] [z]	Lens Color	Lens Transparency	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)	Configuration	Supplier Device Package	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Color
ON Semiconductor QTLP610CIRTR	65 mA	0.5 mW/sr	160 °	Surface Mount Right Angle	Infrared (IR)	940 nm	Side View	85 °C	-40 °C	2-SMD No Lead
ON Semiconductor QTLP610CBTR			120 °	Surface Mount Right Angle						2-SMD No Lead	2 mm	1 mm	Rectangle with Domed Top	430 nm	1.1 mm	Colorless	Clear	25 mcd	20 mA	3.8 V	Standard	SMD	465 nm	2 mm	3 mm	Blue
