C01610E014 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

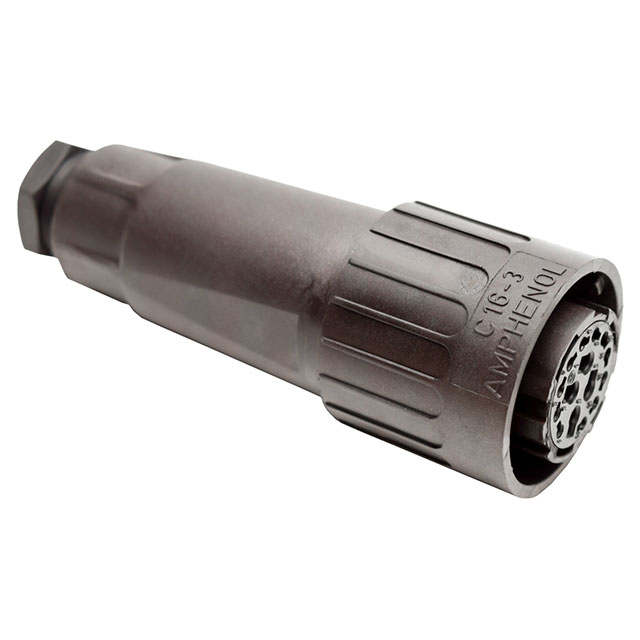

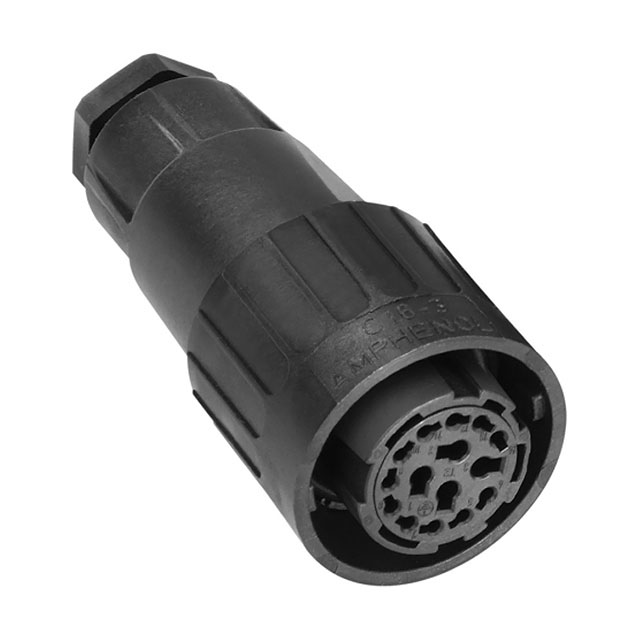

CONN PLUG HSG FMALE 15POS INLINE
| Part | Orientation | Fastening Type | Note | Contact Shape | Mounting Type | Number of Positions | Type | Contact Size | Housing Color | Contact Type | Shell Size - Insert | Shell Material | Material Flammability Rating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Features | Includes | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | N (Normal) | Bayonet Lock | Contacts Not Included | Circular | Free Hanging (In-Line) | 15 | For Female Sockets | 1.5 mm 2.5 mm | Black | Crimp | 1 | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Plug Housing | 125 °C | -40 C | Unshielded | Backshell Cable Clamp Coupling Nut | 1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector | IP65 - Dust Tight Water Resistant |
 Amphenol Tuchel Industrial | N (Normal) | Bayonet Lock | Contacts Not Included | Circular | Free Hanging (In-Line) | 15 | For Female Sockets | 1.5 mm 2.5 mm | Black | Crimp | 1 | Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Plug Housing | 125 °C | -40 C | Unshielded | Backshell Cable Clamp Coupling Nut | 1 Backshell 1 Cable Nut 1 Gasket 1 Washer 2 pc Cable Clamp 2 Screws 9 pcs - 1 Connector | IP65 - Dust Tight Water Resistant |
