GW12RC Series
Manufacturer: NKK Switches
Beta
⌘K

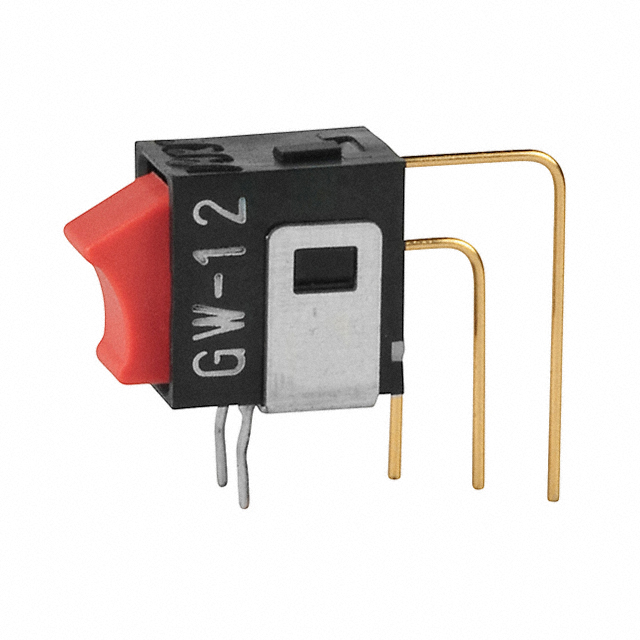

ROCKER SWITCH, NON ILLUMINATED, SPDT, ON-NONE-ON, RED, THROUGH HOLE, 100 MA
| Part | Electrical Life | Mechanical Life | Termination Style | Actuator Marking | Approval Agency | Actuator Type | Current Rating (Amps) | Voltage Rating - AC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Switch Function | Features | Color - Actuator/Cap | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | PC Pin | No Marking | CSA UL | Concave (Curved) | 0.4 VA | 28 V | SPDT | 85 °C | -30 ░C | 28 V | On-On | Sealed - Flux Protection | Red | Through Hole |
