M22-713 Series

Catalog

CONN, RCPT, 16POS, 1ROW, 2MM ROHS COMPLIANT: YES

Part	Contact Material	Contact Shape	Applications	Insulation Material	Current Rating (Amps)	Contact Finish - Post	Mounting Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Rows	Termination	Contact Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Style	Contact Finish - Mating	Mated Stacking Heights	Number of Positions	Insulation Color	Connector Type	Fastening Type	Voltage Rating	Material Flammability Rating
Harwin Inc. M22-7131642	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	Liquid Crystal Polymer (LCP)	2 A	Tin	Through Hole	4.4 mm	0.173 in	0.079 "	2 mm	1	Solder	Female Socket	All	-40 C	105 ░C	2.4 mm	0.094 in	Board to Board Cable	Gold	5.9 mm	16	Black	Receptacle	Push-Pull	500 VAC	UL94 V-0
Harwin Inc. M22-7130542	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	Liquid Crystal Polymer (LCP)	2 A	Tin	Through Hole	4.4 mm	0.173 in	0.079 "	2 mm	1	Solder	Female Socket	All	-40 C	105 ░C	2.4 mm	0.094 in	Board to Board Cable	Gold	5.9 mm	5	Black	Receptacle	Push-Pull	500 VAC	UL94 V-0
Harwin Inc. M22-7130742	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	Liquid Crystal Polymer (LCP)	2 A	Tin	Through Hole	4.4 mm	0.173 in	0.079 "	2 mm	1	Solder	Female Socket	All	-40 C	105 ░C	2.4 mm	0.094 in	Board to Board Cable	Gold	5.9 mm	7	Black	Receptacle	Push-Pull	500 VAC	UL94 V-0
Harwin Inc. M22-7132042	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	Liquid Crystal Polymer (LCP)	2 A	Tin	Through Hole	4.4 mm	0.173 in	0.079 "	2 mm	1	Solder	Female Socket	All	-40 C	105 ░C	2.4 mm	0.094 in	Board to Board Cable	Gold	5.9 mm	20	Black	Receptacle	Push-Pull	500 VAC	UL94 V-0
Harwin Inc. M22-7130442	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	Liquid Crystal Polymer (LCP)	2 A	Tin	Through Hole	4.4 mm	0.173 in	0.079 "	2 mm	1	Solder	Female Socket	All	-40 C	105 ░C	2.4 mm	0.094 in	Board to Board Cable	Gold	5.9 mm	4	Black	Receptacle	Push-Pull	500 VAC	UL94 V-0

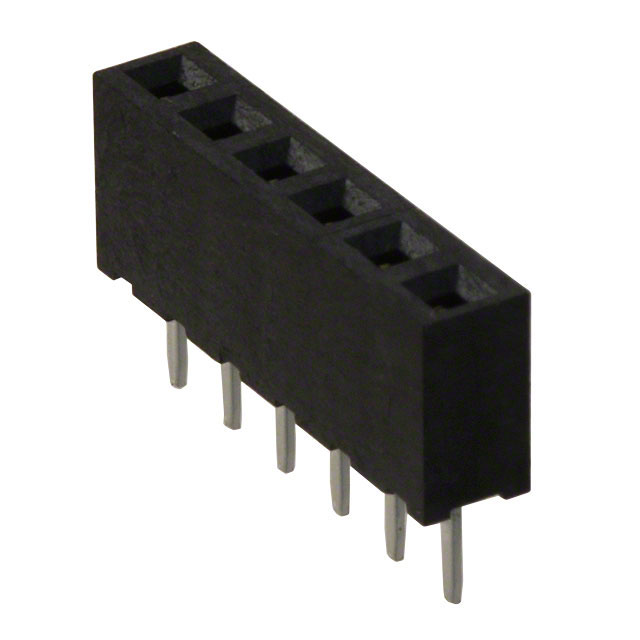

Harwin Inc. M22-7130642	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	Liquid Crystal Polymer (LCP)	2 A	Tin	Through Hole	4.4 mm	0.173 in	0.079 "	2 mm	1	Solder	Female Socket	All	-40 C	105 ░C	2.4 mm	0.094 in	Board to Board Cable	Gold	5.9 mm	6	Black	Receptacle	Push-Pull	500 VAC	UL94 V-0
Harwin Inc. M22-7130342	Phosphor Bronze	Square	General Purpose Industrial Telecommunications	Liquid Crystal Polymer (LCP)	2 A	Tin	Through Hole	4.4 mm	0.173 in	0.079 "	2 mm	1	Solder	Female Socket	All	-40 C	105 ░C	2.4 mm	0.094 in	Board to Board Cable	Gold	5.9 mm		Black	Receptacle	Push-Pull	500 VAC	UL94 V-0
