CABLE 395 Series
Manufacturer: GCT
Beta
⌘K

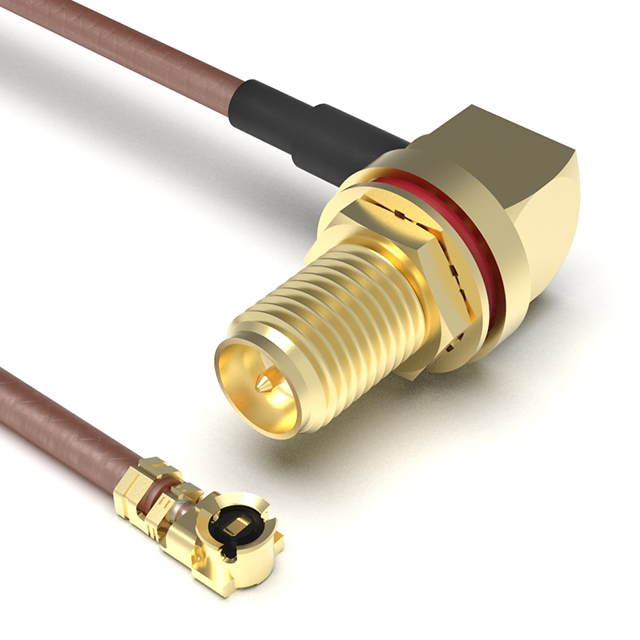

CBL ASSY MHF1-RPSMA JK-PL 7.874"
| Part | Style | Ingress Protection | 2nd Contact Gender | 2nd Connector | 1st Contact Gender | Color | 1st Connector | Length | Length | Cable Type | 1st Connector Mounting Type | Overall Impedance | Features | Cable Impedance | Frequency - Max [Max] | 1st Connector Mounting Feature | 2nd Connector Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IPEX MHF1 to RP-SMA | IP67/IP68 | Female | IPEX MHF1 Plug Right Angle | Male | Brown | RP-SMA Jack | 200 mm | 7.874 in | RG-178 | Panel Mount | 50 Ohms | IP Rated Unmated | 50 Ohms | 6000 MHz | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 85 °C | -40 C | |
I-PEX MHF1 to RP-SMA | IP67/IP68 | Female | I-PEX MHF1 Plug Right Angle | Male | Brown | RP-SMA Jack | 200 mm | 7.874 in | RG-178 | Panel Mount | 50 Ohms | IP Rated Unmated | 50 Ohms | 6000 MHz | Bulkhead - Front Side Nut | Free Hanging (In-Line) | 85 °C | -40 C |
